(D-20) - LIFT, ALL CYLINDER ADAPTER PACKAGE, SPECIAL, 1955 TO 1963

Запчасти Case IH 37 (D-20) - LIFT, ALL CYLINDER ADAPTER PACKAGE, SPECIAL, 1955 TO 1963

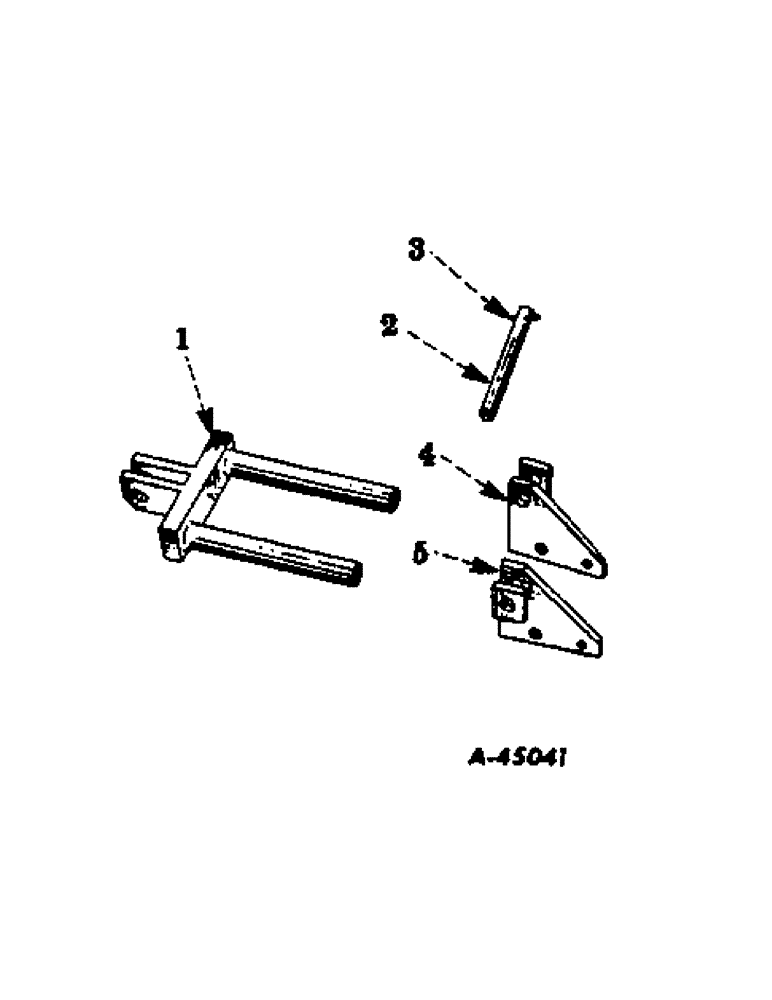

Схема запчастей Case IH 37 - (D-20) - LIFT, ALL CYLINDER ADAPTER PACKAGE, SPECIAL, 1955 TO 1963
5
1
4
3
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

651991R91

BRACKET, rear lift, all

1шт.

517843R1

COTTER PIN

PIN, quick-attachable cotter

1шт.

551681R1

PIN, 7/8 x 2-1/2 dld-std-hd

1шт.

2

651983R1

PIN, front lift, all

1шт.

3

517843R1

COTTER PIN

PIN, quick-attachable cotter

1шт.

4

651989R91

BRACKET, L front lift, all

1шт.

5

651990R91

BRACKET, R front lift, all

1шт.

BOLT, w/nut, 5/8 x 1-1/2 mach

4шт.

WASHER, 5/8 lock

4шт.
