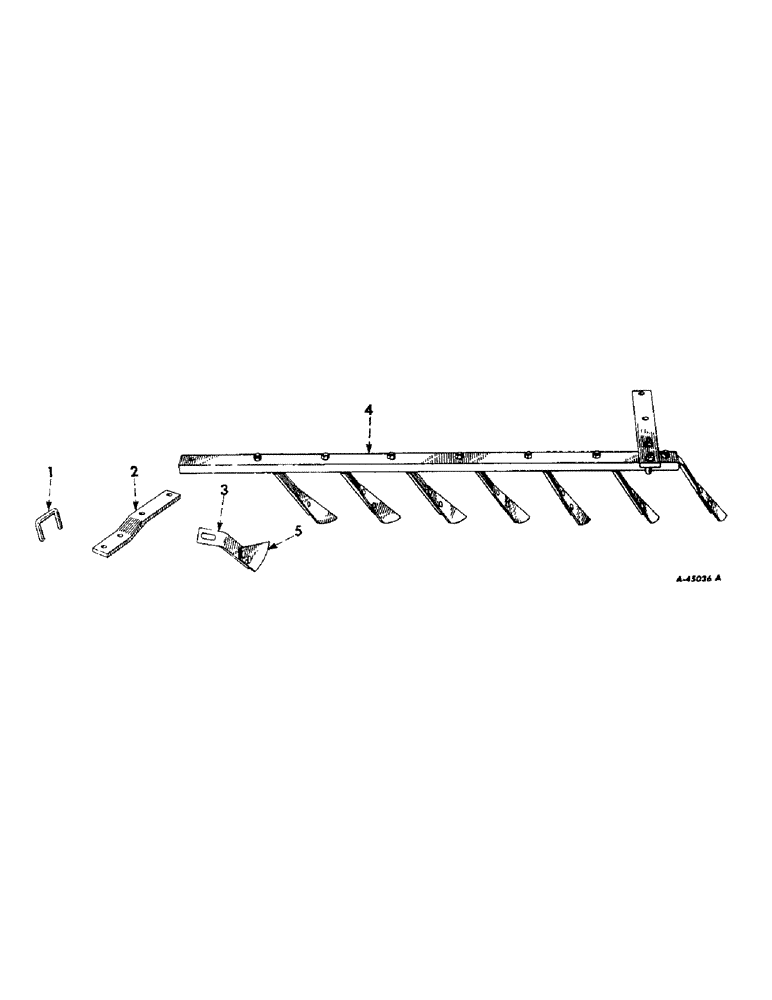

Запчасти Case IH 37 (D-18) - SCRAPERS AND SCRAPER BARS, SPECIAL, 1955 TO 1961

1

651811R1

BOLT,U, 1/2" - 13 x 2 1/4"

U-BOLT, 8 used units A, B, C, D, E, F and G, 12 used units H, I, J, K, L, M and N

1шт.

NUT, 1/2, 16 used units A, B, C, D, E, F and G, 24 used units H, I, J, K, L, M and N

1шт.

WASHER, 1/2 lock, 16 used units A, B, C, D, E, F and G, 24 used units H, I, J, K, L, N, and N

1шт.

2

652354R2

BRACKET, scraper bar, 8 used units A, B, C, D, E, F and G, 12 used units H, I, J, K, L, M and N

1шт.

3

653656R1

SCRAPER

L, Serial Range: 1959-1960

1шт.

3

653657R1

SCRAPER

R, Serial Range: 1959-1960

1шт.

3

651137R92

SCRAPER

ASSY, L, 1955 and since

1шт.

3

651138R92

BLADE

SCRAPER ASSY, R, 1955 and since, 10 used unit B, 12 used units A, D and E, 14 used units C, G and I, 16 used units F, J and M, 18 used units H and L, 20 used units K, 22 used unit N

1шт.

BOLT, 1/2 x 1 crg, 2 per scraper

1шт.

NUT, 1/2 jam, 2 per scraper

1шт.

WASHER, 1/2 lock, 2 per scraper

1шт.

4

652002R1

BAR, scraper, 4 used unit A

1шт.

4

652004R1

BAR, scraper, 2 used unit C, 4 used unit B

1шт.

4

652006R1

BAR, scraper, 2 used unit F, 4 used unit E

1шт.

4

652007R1

BAR, scraper, 2 used unit L, 4 used unit K

1шт.

4

652360R1

BAR, scraper, 4 used unit N

1шт.

4

652940R1

BAR, front scraper, 2 used unit H

1шт.

4

652941R1

BAR, rear scraper, 2 used unit H and I

1шт.

4

652011R1

BAR, scraper, 2 used unit D, 4 used unit B

1шт.

4

652012R1

BAR, scraper, 2 used unit G, 4 used unit E

1шт.

4

652942R1

BAR, front scraper, 2 used units I and J

1шт.

4

652943R1

BAR, rear scraper, 2 used unit I

1шт.

4

652585R1

BAR, scraper, 2 used unit L, 4 used unit M

1шт.

5

651042R3

SCRAPER

BLADE, scraper, 1 used w/651137R92 and 651138R92

1шт.

RIVET, 3/8 x 7/8 truss-hd, 2 per blade

1шт.
