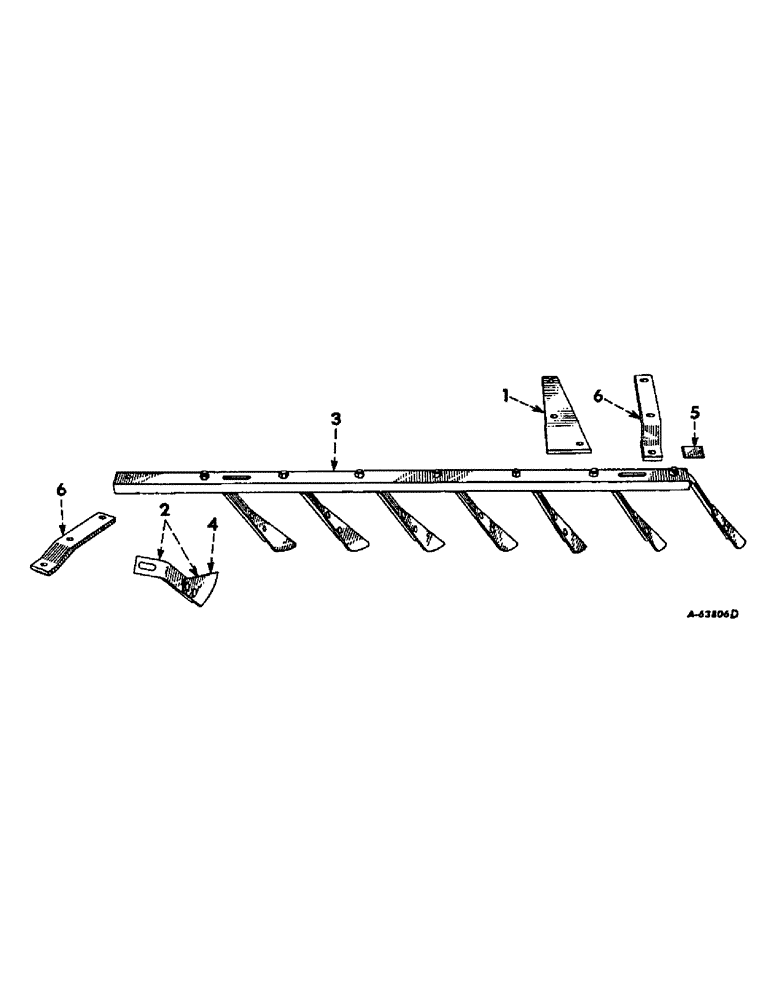

Запчасти Case IH 37 (D-16) - SCRAPERS AND SCRAPER BARS, SPECIAL, 1961 AND SINCE

1

481116R1

SUPPORT

BRACKET, scraper bar LH, will work for 465101R1, 9 in. only

1шт.

1

481117R1

BRACKET

scraper bar RH, will work for 465101R1, 9 in. only, 2 used units D, 3 used units J and L, 4 used units B, E, and G, 6 used units I and M

1шт.

1

465101R1

SUPPORT

BRACKET, scraper bar, 7 in. only, 4 used unit D, 6 used unit J and L, 8 used units A, C, and F, 12 used unit H, K and N

1шт.

BOLT W/NUT, 5/8 x 1-3/4 crg, 1 per bracket

1шт.

WASHER, 5/8 lock, 1 per bracket

1шт.

2

465060R91

SCRAPER

ASSY, left

1шт.

2

465061R91

SCRAPER

ASSY, right, 10 used unit B, 12 used units A, D, and E, 14 used units C, G and I, 16 used units F, J and M, 18 used units H and L, 20 used unit K, 22 used unit N

1шт.

618502R1

BOLT W/NUT, 1/2 x 1-1/4 crg, 1 per scraper

1шт.

WASHER, 1/2 lock, 1 per scraper

1шт.

3

465064R1

BAR, scraper, 4 used unit A

1шт.

3

479299R2

BAR

scraper, R rear, will work for 465066R1, 1 used unit B

1шт.

3

474429R2

ANGLE

BAR, scraper, L front, will work for 465571R1, 1 used units B, D and E

1шт.

3

479300R2

BAR

scraper, L rear, will work for 465067R1, 1 used unit B

1шт.

3

474428R2

ANGLE

BAR, scraper, R front, will work for 465572R1, 1 used units B and D

1шт.

3

465068R2

BAR, scraper, L front and R rear, 1 used unit D, 2 used unit C

1шт.

3

465068R2

BAR, scraper, R front and L rear, 1 used units D and E, 2 used unit C

1шт.

3

465068R2

BAR, scraper, 1 front, will work 465069R1, 1 used units E and G

1шт.

3

479291R2

ANGLE

BAR, scraper, R rear, will work for 465070R1, 1 used units E and G

1шт.

3

479292R2

ANGLE

BAR, scraper, L rear, will work for 465071R1, 1 used units E and G

1шт.

3

465072R2

BAR, scraper, L front and R rear, 1 used unit G, 2 used unit F

1шт.

3

465073R2

BAR, scraper, R front and R rear, 1 used unit G, 2 used unit F

1шт.

3

465074R2

BAR, scraper, L front, 2 used unit H

1шт.

3

465074R2

BAR, scraper L rear and R rear, will work for 466705R1 and 466706R1, 1 used units H and J

1шт.

3

465075R1

BAR, scraper, R front, 1 used unit H

1шт.

3

465076R1

BAR, scraper, L rear, 1 used units H and J

1шт.

3

465077R1

BAR, scraper, R rear, 1 used units H an J

1шт.

3

479292R2

ANGLE

BAR, scraper, L front, will work for 465080R1, 1 used units I and J

1шт.

3

479291R2

ANGLE

BAR, scraper, R front, will work for 465081R1, 1 used units I and J

1шт.

3

465082R1

BAR, scraper, L rear, 1 used unit I

1шт.

3

465083R1

BAR, scraper, R rear, 1 used unit I

1шт.

3

479304R2

BAR, scraper, L rear, will work for 466709R1, 1 used unit I

1шт.

3

479305R2

BAR, scraper, R rear, will work for 466710R1, 1 used for U

1шт.

3

465086R2

BAR, scraper, L front, 1 used only K

1шт.

3

465086R2

BAR, scraper, R rear, will work for 465089R1, 1 used units K and L, 2 used units N

1шт.

3

465087R2

BAR, scraper, R front, 1 used unit K

1шт.

3

465087R2

BAR, scraper, L rear, will work for 465088R1, 1 used units K and L

1шт.

3

479305R2

BAR, scraper, L front, will work for 465092R1, 1 used units L and M

1шт.

3

479304R2

BAR, scraper, R front, will work for 465093R1, 1 used units L and M

1шт.

3

479306R3

ANGLE

BAR, scraper, L rear, will work for 465094R1, 1 used unit M

1шт.

3

479307R3

BAR, scraper, R rear, will work for 465095R1, 1 used units M

1шт.

3

470972R2

BAR, scraper, L front and R rear, will work for 465098R1, 2 used unit N

1шт.

4

465062R1

BLADE

scraper, 10 used unit B, 12 used unit A, D and E, 14 units C, G and I, 16 used units F, J and M, 18 used units H and L, 20 used unit K, 22 used unit N

1шт.

RIVET, 3/8 x 7/8 truss-hd, 2 per blade

1шт.

5

465568R1

SPACER, scraper, on front inner scraper, 2 used units B, D, E, G, H, I, J and M

1шт.

565567R1

BOLT, 1/2UNC x 1-1/2 crg, special, 2 used units B, D, E, G, H, I, J, L and M

1шт.

NUT, 1/2UNC, 2 used units B, D, E, G, H, I, J, L and M

1шт.

WASHER, 1/2 lock, 2 used units B, D, E, G, H, I, J, L and M

1шт.

6

465101R1

SUPPORT

BRACKET, scraper bar, 7 in. only, 4 used unit D, 6 used units J and L, 8 used units A, C, and F, 12 used units H, K, and N

1шт.
