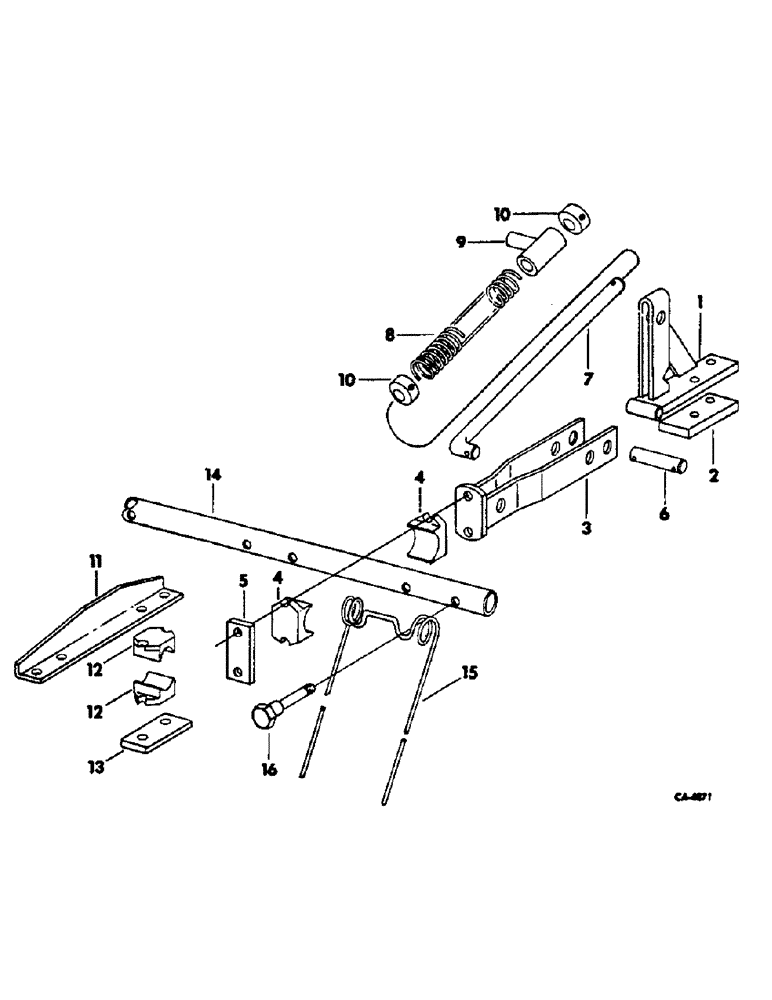

Запчасти Case IH 350 (AR-7) - MULCHER ATTACHMENT

63214C91

MULCHER ATTACHMENT, 10 ft, unit A

1шт.

63215C91

MULCHER ATTACHMENT, 12 ft, unit B

1шт.

63216C91

MULCHER ATTACHMENT, 14 ft, unit C

1шт.

63217C91

MULCHER ATTACHMENT, 18 ft, unit D

1шт.

63218C91

MULCHER ATTACHMENT, 20 ft, unit E

1шт.

1

63219C2

BRACKET, mounting, 2 for unit A, 4 for unit B & C, 6 for unit D & E

1шт.

2

63220C2

CLAMP, flat, 1 per bracket

1шт.

72828C1

STUD, threaded, 2 per clamp

1шт.

120384

WASHER,1/2"

LOCK, , 1 per screw 1/2"

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, , 1 per screw 1/2"-13, G5

1шт.

3

63221C1

FORK, 2 for unit A, 4 for unit B & C, 6 for unit D & E

1шт.

4

63222C1

CLAMP

casting, 2 per fork

1шт.

5

63223C1

PLATE

clamp, 1 per fork

1шт.

18804R1

BOLT,Hex, 7/16"-14 x 4", G2

7/16 x 4 type 1, 2 per plate

1шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, , 1 per screw 7/16"

1шт.

271501

SOCKET

NUT, 7/16-14 znd hex., 1 per screw

1шт.

6

63224C1

PIN, 9/16 x 3-1/2 in., 1 per fork

1шт.

120169

COTTER PIN,5/32" x 1"

PIN, SPLIT (COTTER), , 2 per pin 5/32" x 1"

1шт.

7

63225C1

ROD COMPRESSION, 1 per fork

1шт.

120169

COTTER PIN,5/32" x 1"

PIN, SPLIT (COTTER), 5/32" x 1"

2шт.

8

63226C1

SPRING, compression, 1 per rod

1шт.

9

63227C1

PIN

BEARING AND PIN ASSEMBLY, 1 per rod

1шт.

120169

COTTER PIN,5/32" x 1"

PIN, SPLIT (COTTER), 5/32" x 1"

2шт.

10

516595R1

COLLAR

COLLAT W/SET SCREW, 2 per rod

1шт.

21689R1

SCREW

1/2-13 x 3/4 znd sq-hd cup-pt set, 1 per collar

1шт.

11

63228C1

SUPPORT

FRAME, 3 for unit A, 4 for unit B & C, 6 for unit D & E

1шт.

12

63222C1

CLAMP

casting, 4 per frame

1шт.

18804R1

BOLT,Hex, 7/16"-14 x 4", G2

7/16-14 x 4 znd hex-hd mach, 1 per clamp

1шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

1шт.

NLS

NO LONGER SERVICED

NUT, 7/16-14 znd hex., 1 per clamp

1шт.

13

63223C1

PLATE

clamp, 2 per frame

1шт.

14

63229C1

TUBE

TOOTHBAR ASSY, 4.5 ft, 4 for unit D

1шт.

14

63230C1

TUBE

TOOTHBAR ASSY, 5.5 ft, 4 for unit E

1шт.

14

63231C1

TOOTHBAR ASSY, 6.5 ft, 4 for unit B

1шт.

14

63232C1

TUBE

TOOTHBAR ASSY, 7.5 ft, 4 for unit C

1шт.

14

63233C1

TUBE

TOOTHBAR ASSY, 8.5 ft, 2 for unit D & E

1шт.

14

63234C1

TOOTHBAR ASSY, 10.5 ft, 2 for unit A

1шт.

15

63235C2

TOOTH

6 in. spacing, 22 for unit A, 28 for unit B, 32 for unit C, 38 for unit D, 42 for unit E

1шт.

16

487082R1

BOLT,Hex, 3/8" - 16 x 2 3/4"

shoulder, 2 per tooth

1шт.

9413953

LOCK NUT,3/8"-16, GB

NUT, 3/8-16 PHC prev torque hex. lock, 2 per tooth

1шт.
