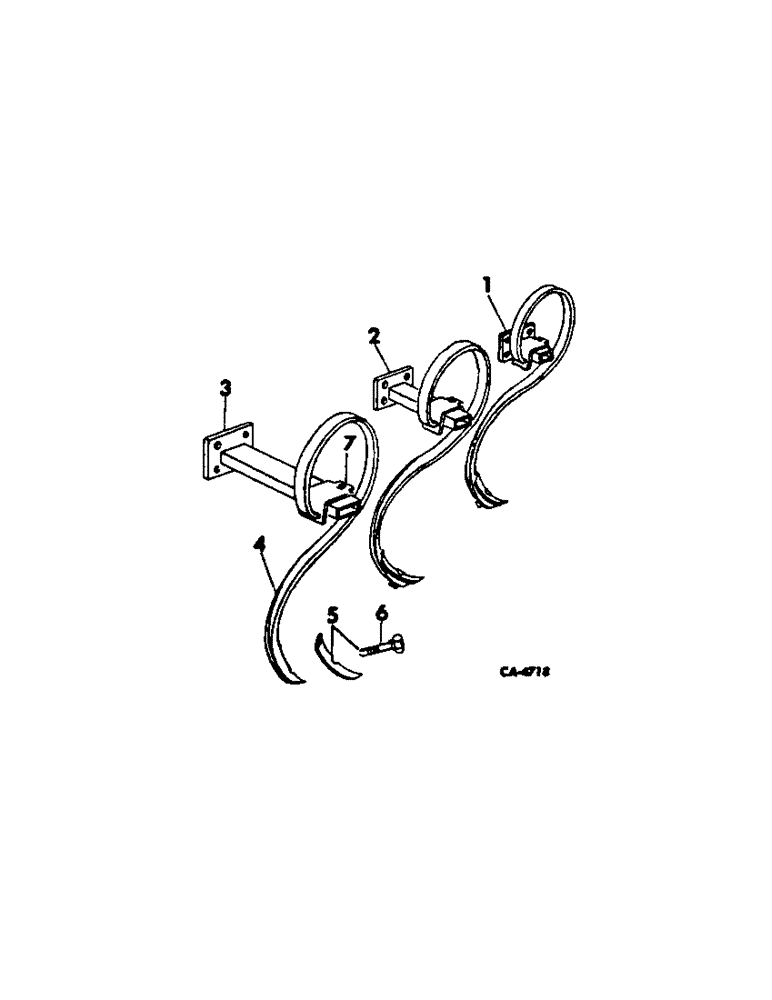

Запчасти Case IH 350 (AR-4[A]) - EXTENSION STUBS AND TINES 10, 14 AND 20 FT

1

63101C1

STUB, 4 in. extension

2шт.

2

63102C1

STUB, 8 in. extension

2шт.

3

63103C1

STUB, 12 in. extension

2шт.

18497R1

BOLT,Hex, 1/2"-13 x 1 3/4", G2

1/2-13 x 1-3/4 znd hex-hd mach

12шт.

120384

WASHER,1/2"

LOCK, 1/2"

12шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

12шт.

4

63096C1

TOOTH

TINE

1шт.

5

64478C1

POINT

replaces 63098C91

1шт.

6

734808R2

BOLT

plow

1шт.

495-21044

WASHER,3/8"

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

7

63099C1

CLAMP

tooth

1шт.

413-736

BOLT,Hex, 7/16" - 14 x 2-1/4", Gr 5

SCREW, 7/16-14 x 2-1/4 znd hex-hd cap

1шт.

231-4117

LOCK NUT,7/16"-14, GB

NUT, 7/16-14 znd hex. lock

1шт.
