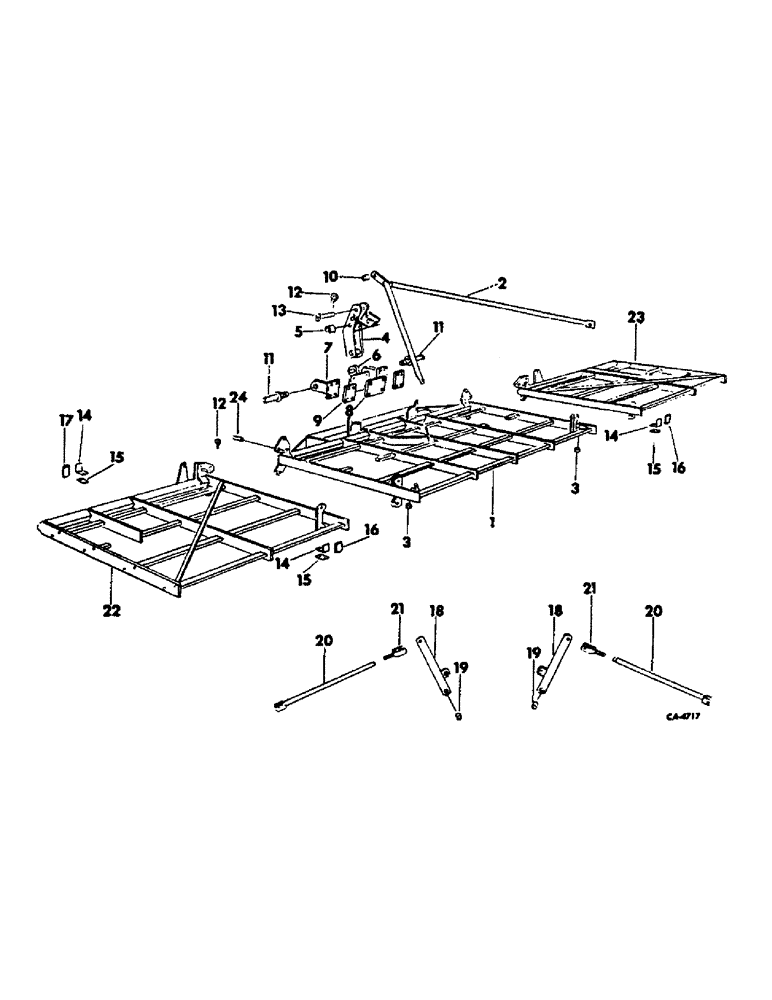

Запчасти Case IH 350 (AR-3) - FRAME ASSY, 8 FT CENTER, 18 AND 20 FT. FOLDING

1

63093C3

FRAME ASSY, 8 ft center

1шт.

2

63095C1

STABILIZER

1шт.

18458R1

BOLT,Hex, 5/8"-11 x 1 3/4", G2, Full Thd

5/8-11 x 1-3/4 hex-hd mach

2шт.

130999

WASHER,5/8"

11/16 ID x 1-3/4 OD x 10 ga plain znd

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 znd hex.

2шт.

3

63124C2

BUSHING

2шт.

4

63125C1

MAST ASSY

1шт.

18843R1

BOLT

3/4-10 x 5 znd hex-hd mach

1шт.

9413971

LOCK NUT,3/4"-10, GB

NUT, 1-8 znd hex. lock

1шт.

6

63127C1

BRACKET ASSY, mast pivot

1шт.

7

63128C1

POINT, lower hitch

2шт.

8

63129C1

CLAMP, mast

1шт.

9

63130C1

BAR

hitch point

2шт.

20527C1

BOLT, 5/8-11 x 8 znd hex-hd mach

12шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

12шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 znd hex.

12шт.

10

63131C1

BUSHING

1шт.

18824R1

BOLT,Hex, 5/8"-11 x 2 1/2", G2

5/8-11 x 2-1/2 znd hex-hd mach

1шт.

118670

WASHER, 11/16 x 1-3/4 x 10 ga

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 znd hex.

1шт.

11

74810C1

PIN, imp. hitch

2шт.

131049

HYD CONNECTOR

1-1/8 znd med lock

2шт.

427359

NUT,1 1/8"-12, G5

1-1/8-12 znd hex.

2шт.

12

373025R91

PIN ASSY.

PIN, click

5шт.

13

63133C2

PIN

mast

1шт.

14

63134C1

BRACKET, reflector support

3шт.

15

63135C1

CLAMP, flat

3шт.

18766R1

BOLT,Hex, 5/16"-18 x 1 3/4", G2

5/16-18 x 1-3/4 znd hex-hd mach

6шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

120376

NUT,5/16"-18, G5

6шт.

16

63111C1

REFLECTOR

red

2шт.

17

63212C1

REFLECTOR

amber

1шт.

18

63136C1

ARM ASSY, rocker

2шт.

18619R1

BOLT,Hex, 5/8" - 11 x 2 1/4", Gr 2

5/8-11 x 2-1/4 znd hex-hd mach

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 hex.

2шт.

19

472984R1

SPACER

BUSHING, 7/8 OD x .120 wall x 21/32

2шт.

20

63137C1

ARM ASSY, lift

2шт.

21

472986R91

LUG ASSY, adjusting

2шт.

21806R1

HEADED PIN,1/2" x 1 3/4"

PIN, 1/2 x 1-3/4 znd hd

4шт.

103396

PIN, SPLIT (COTTER),5/32" x 1"

5/32" x 1"

4шт.

22

63108C3

FRAME ASSY, 5 ft wing LH

1шт.

23

63109C3

FRAME ASSY, 5 ft wing RH

1шт.

22096R1

HEADED PIN,3/4" x 2 1/4"

PIN, 3/4 x 2-1/4 znd hd

6шт.

24

63110C1

PIN, hinge

2шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

6шт.

373025R1

PIN, click

4шт.
