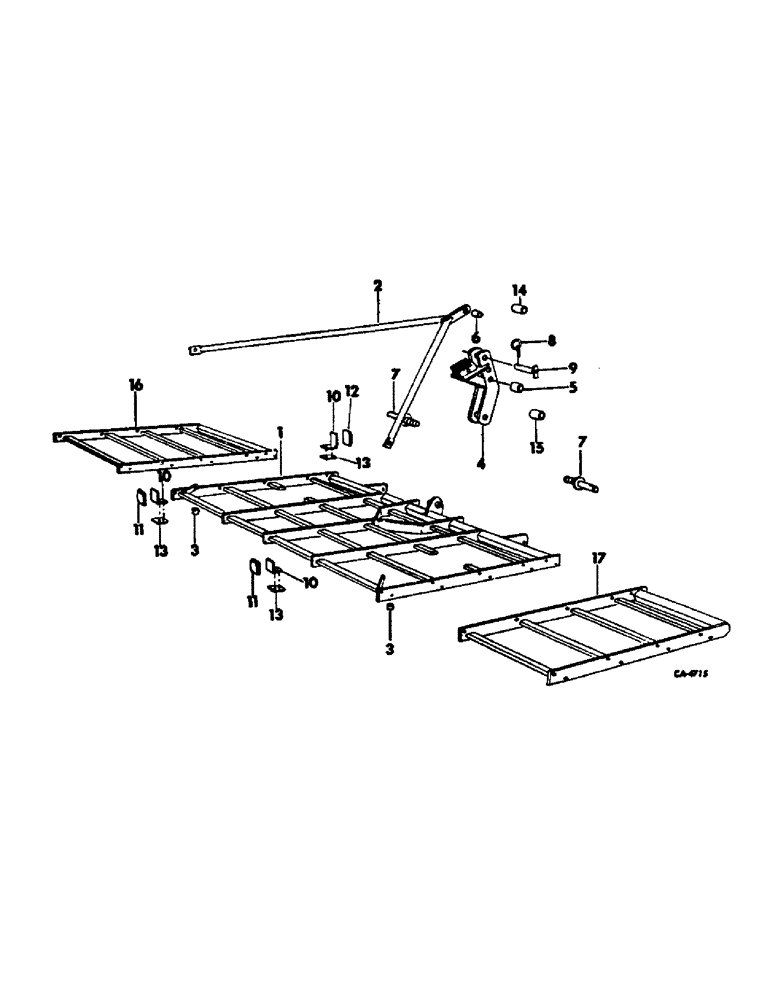

Запчасти Case IH 350 (AR-2) - FRAME ASSY, 8 FT CENTER, 10, 12 AND 14 FT. NON-FOLDING

1

63092C3

FRAME ASSY, 8 ft center

1шт.

2

63094C1

STABILIZER

1шт.

18458R1

BOLT,Hex, 5/8"-11 x 1 3/4", G2, Full Thd

5/8-11 x 1-3/4 znd hex-hd mach

2шт.

130999

WASHER,5/8"

11/16 ID x 1-3/4 OD x 10 ga plain znd

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 znd hex.

2шт.

3

63124C2

BUSHING

2шт.

4

63125C1

MAST ASSY

1шт.

18843R1

BOLT

3/4-10 x 5 znd hex-hd mach

1шт.

9413971

LOCK NUT,3/4"-10, GB

NUT, 3/4-10 znd hex. lock

1шт.

5

63126C2

BUSHING

1шт.

18860R1

BOLT

1-8 x 5-1/2 znd hex-hd mach

1шт.

24567R1

LOCK NUT,1"-8, GB

NUT, 1-8 znd hex. lock

1шт.

6

63131C1

BUSHING

1шт.

18825R1

BOLT,Hex, 5/8" - 11 x 2 3/4", Gr 2

5/8-11 x 2-3/4 znd hex-hd mach

1шт.

118670

WASHER, 11/16 x 1-3/4 x 10 ga

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 znd hex.

1шт.

7

468869R1

STUD

PIN, implement hitch

2шт.

131047

WASHER,7/8"

7/8"

2шт.

426767

NUT,7/8"-14, G5

7/8-14 znd hex.

2шт.

8

373025R91

PIN ASSY.

PIN, click

1шт.

9

63132C1

PIN, mast, for cat. I hitch

1шт.

9

63133C2

PIN

mast, for cat. II hitch

1шт.

10

63134C1

BRACKET, reflector support

3шт.

11

63111C1

REFLECTOR

red

2шт.

12

63212C1

REFLECTOR

amber

1шт.

13

63135C1

CLAMP, flat

3шт.

18766R1

BOLT,Hex, 5/16"-18 x 1 3/4", G2

5/16-18 x 1-3/4 znd hex-hd mach

6шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

120376

NUT,5/16"-18, G5

6шт.

14

63138C1

BUSHING, cat. I to II hitch adapter, upper

2шт.

15

63139C1

BUSHING, cat. I to II hitch adapter, lower

2шт.

16

63105C1

FRAME ASSY, 2 ft ext. LH, for 14 ft.

1шт.

17

63106C1

FRAME ASSY, 2 ft ext. RH, for 14 ft.

1шт.

18497R1

BOLT,Hex, 1/2"-13 x 1 3/4", G2

1/2-13 x 1-3/4 znd hex-hd mach

12шт.

120384

WASHER,1/2"

LOCK, 1/2"

12шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

12шт.
