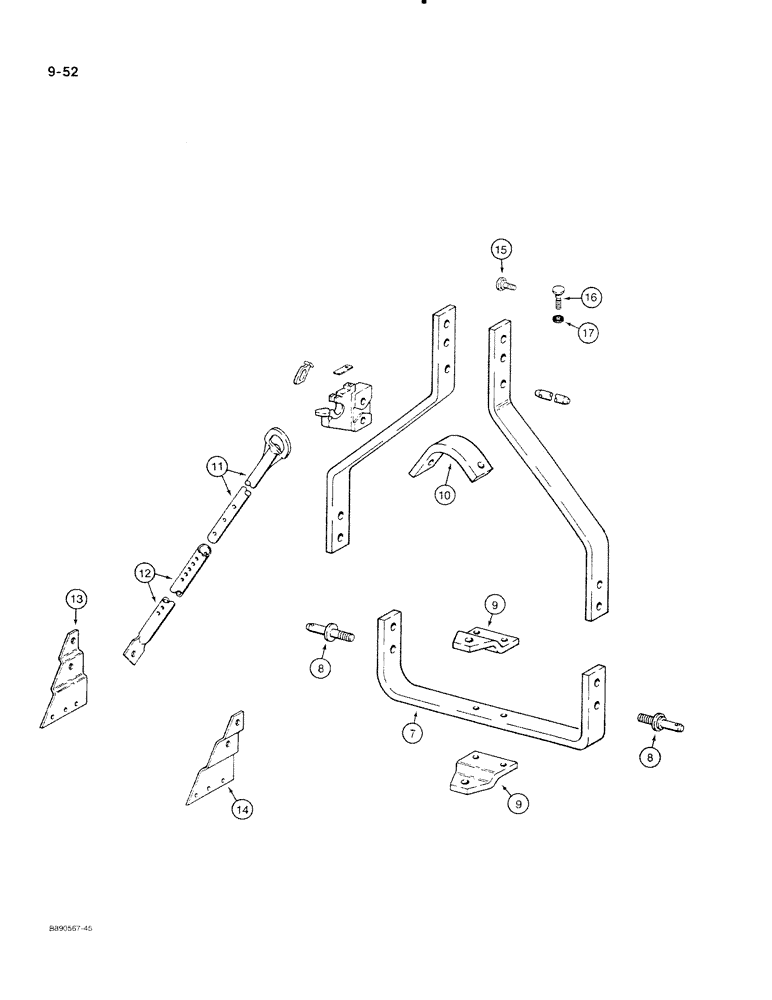

Запчасти Case IH 350 (9-52) - HITCH WEIGHT TRANSFER ATTACHMENT (09) - CHASSIS/ATTACHMENTS

7

540453R1

DRAWBAR - hitch

1шт.

(Used with 404,424,444,504,544,606 or 656 series tractors)

1шт.

7

540454R1

DRAWBAR - hitch (Used with 706,756,806,826,856,1026,1206

1шт.

1256 or 1456 series tractors)

1шт.

21477R1

BOLT - hex, 1-1/8 NC x 3-1/4 inch

2шт.

492-11112

LOCK WASHER,1 1/8"

- lock, 1-1/8 inch

4шт.

427359

NUT,1 1/8"-12, G5

- hex, 1-1/8 inch NC

4шт.

8

540441R1

PIN - link, category 1

1шт.

(Used with 404,424 or 444 series tractors)

2шт.

8

540442R1

PIN

- link, category 2 (Used with 504,544,606,656,706,756,806,826

1шт.

856 or 1026 series tractors)

2шт.

8

540443R1

PIN - link, category 3

1шт.

(Used with 1206,1256 or 1456 series tractors)

2шт.

9

540444R1

PLATE - hitch

2шт.

271821

BOLT,Hex, 7/8" - 9 x 3 1/2", Gr 5

- hex, 7/8 NC x 3-1/2 inch

2шт.

NLS

NO LONGER SERVICED

7/8"

2шт.

129-109

NUT,7/8"-9, G5

2шт.

10

540438R1

BRACE - support bracket (Used with 706,756,806,826,856,1026,1206

1шт.

1256 or 1456 series tractors)

1шт.

113-626

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

129-107

NUT,5/8"-11, G5

2шт.

11

540422R1

TUBE - support, upper

1шт.

22096R1

HEADED PIN,3/4" x 2 1/4"

PIN - clevis, 3/4 x 2-1/4 inch

1шт.

520175R1

CLIP

PIN - hair

1шт.

12

540430R1

TUBE - support, lower

1шт.

22929R1

HEADED PIN,19.05mm OD x 66.67mm L

PIN, HEADED, 3/4" x 2 5/8"

1шт.

217973

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1-1/4"

1шт.

13

540445R1

BRACKET - anchor, left-hand

1шт.

14

540446R1

BRACKET - anchor, right-hand

1шт.

113-600

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

2шт.

113-607

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

129-107

NUT,5/8"-11, G5

4шт.

15

3044388R1

STOP

LEVER - control stop

1шт.

(Used with 404,424 or 444 series tractors)

1шт.

25709R1

WASHER

- flat, 13/32 x 47/64 x 1/16 inch

1шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

25932R1

JAM NUT,Jam, 3/8"-16, G5

- hex jam, 3/8 inch NC

1шт.

16

540436R1

STOP - quadrant

1шт.

17

540437R1

WASHER - rubber (Used with 706,756,806,826,856,1026,1206

1шт.

1256 or 1456 series tractors)

1шт.

614452R1

WASHER

- 13/32 x 1-1/4 x 0.138 inch

1шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.
