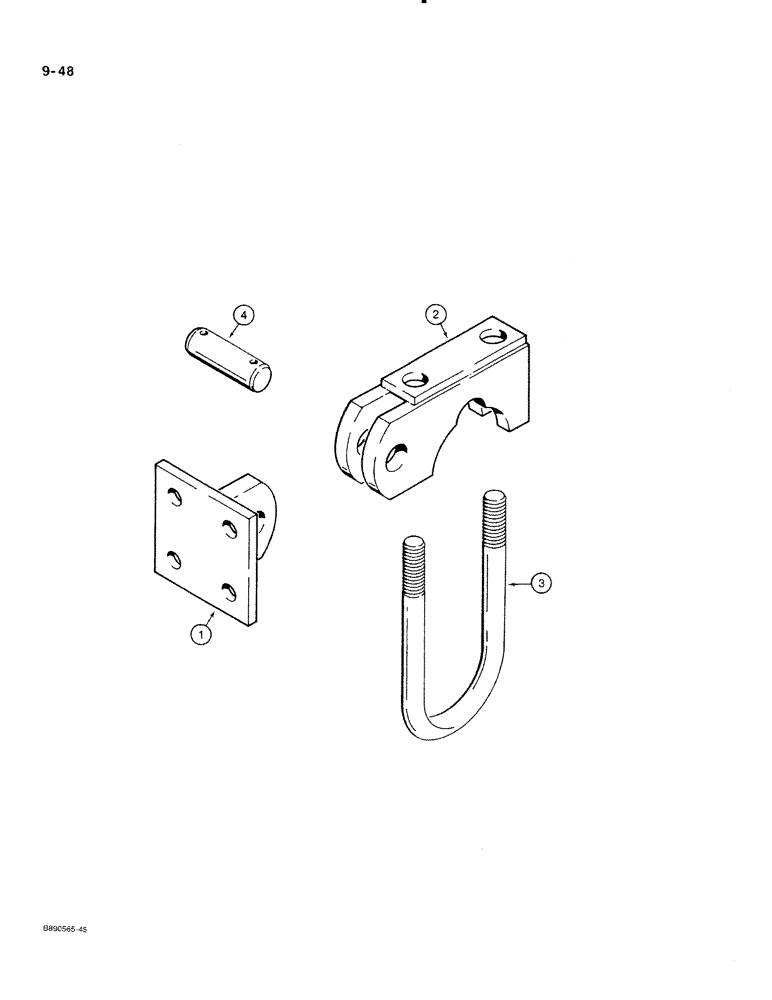

Запчасти Case IH 350 (9-48) - WHEEL AXLE CLAMP ATTACHMENT, MULCHER TO 3.5 INCH AXLE (09) - CHASSIS/ATTACHMENTS

1

540022R1

BRACKET - clamp mounting

2шт.

18822R1

BOLT,Hex, 5/8"-11 x 1 1/2", G2, Full Thd

- hex, 5/8 NC x 1-1/2 inch

8шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

129-107

NUT,5/8"-11, G5

8шт.

2

540017R1

CLAMP - saddle, for 3-1/2 inch axle

2шт.

3

540019R1

U-BOLT - saddle clamp

2шт.

192-27

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

129-108

NUT,3/4"-10, G5

4шт.

4

540021R1

PIN - bracket to saddle clamp

2шт.

20341R1

COTTER PIN,1/4" x 2"

Pin, Split (Cotter), 1/4" x 2"

4шт.
