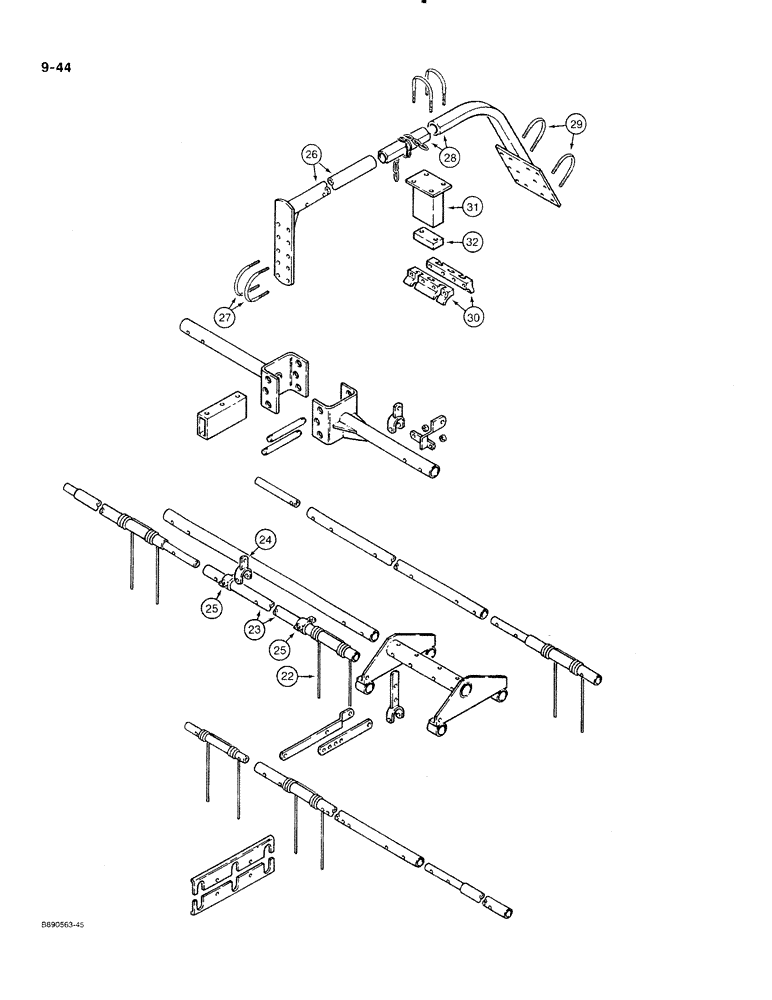

Запчасти Case IH 350 (9-44) - MULCHER ATTACHMENT, UNITS BUILT PRIOR TO 1980 (09) - CHASSIS/ATTACHMENTS

22

72901C1

TOOTH

- bar

1шт.

Ref. 18 through 21 in Figure 9-42 and Ref. 22 through 25 in this figure are used when converting from a two bar to a three bar mulcher.

1шт.

(3 used per frame 485614R2, item 1 on page 9-41)

1шт.

(4 used per frame 485615R2, item 1 on page 9-41)

1шт.

(5 used per frame 485616R2, item 1 on page 9-41)

1шт.

487082R1

BOLT,Hex, 3/8" - 16 x 2 3/4"

- shoulder (2 used per tooth)

1шт.

385525R1

LOCK NUT,3/8"-16, GB

NUT - hex, self-locking, 3/8 inch NC (2 used per tooth)

1шт.

23

485602R1

TUBE

BAR - second tooth

1шт.

Ref. 18 through 21 in Figure 9-42 and Ref. 22 through 25 in this figure are used when converting from a two bar to a three bar mulcher.

1шт.

(Disk Harrow coded R, S or T)

1шт.

23

485604R1

TUBE

BAR - second tooth

1шт.

Ref. 18 through 21 in Figure 9-42 and Ref. 22 through 25 in this figure are used when converting from a two bar to a three bar mulcher.

1шт.

(Disk Harrow coded A through J)

1шт.

23

485605R1

TUBE

BAR - second tooth

1шт.

Ref. 18 through 21 in Figure 9-42 and Ref. 22 through 25 in this figure are used when converting from a two bar to a three bar mulcher.

1шт.

(Disk Harrow coded G through T)

1шт.

137313

PIN,1/4" x 2 3/4"

Split (Cotter), 1/4" x 2 3/4"

6шт.

24

485601R1

ARM

POST - center, second tooth (1 used per bar)

1шт.

Ref. 18 through 21 in Figure 9-42 and Ref. 22 through 25 in this figure are used when converting from a two bar to a three bar mulcher.

1шт.

Q3542

HEADED PIN,11.1mm OD x 38.1mm L

PIN - clevis, 7/16 x 1-1/2 inch

1шт.

120169

COTTER PIN,5/32" x 1"

PIN, SPLIT (COTTER), 5/32" x 1"

1шт.

180159

BOLT,Hex, 7/16" - 14 x 2 3/4", Gr 5

- hex, 7/16 NC x 2-3/4 inch

1шт.

473213R1

LOCK NUT,7/16"-14, GB

NUT - hex, self-locking, 7/16 inch NC

1шт.

25

485603R1

BUSHING

- center bar, second tooth (2 used per bar)

1шт.

Ref. 18 through 21 in Figure 9-42 and Ref. 22 through 25 in this figure are used when converting from a two bar to a three bar mulcher.

1шт.

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

26

487716R1

ARM - mounting, upper

2шт.

20299R1

BOLT - hex, 5/8 NC x 3-3/4 inch

4шт.

478684R1

NUT - hex, self-locking, 5/8 inch NC

4шт.

27

487717R1

U-BOLT - upper arm mounting

4шт.

129-107

NUT,5/8"-11, G5

8шт.

478684R1

NUT - hex self-locking, 5/8 inch NC

8шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

16шт.

28

487718R1

ARM - mounting, lower

2шт.

29

487719R1

U-BOLT - lower arm mounting

8шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

16шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

16шт.

30

487720R1

CLAMP - bar

4шт.

18498R1

BOLT,Hex, 1/2" - 13 x 3 1/2", Gr 2

- 1/2 NC x 3-1/2 inch

8шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

8шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

8шт.

31

487721R1

BRACKET - mounting, rubber pad

2шт.

32

487722R1

PAD - rubber

2шт.

18675R1

BOLT,Short NK, 5/16"-18 x 1 3/4", G2

- carriage, 5/16 NC x 1-3/4 inch

4шт.

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

9635082

NUT,5/16" - 18, Gr 5

4шт.
