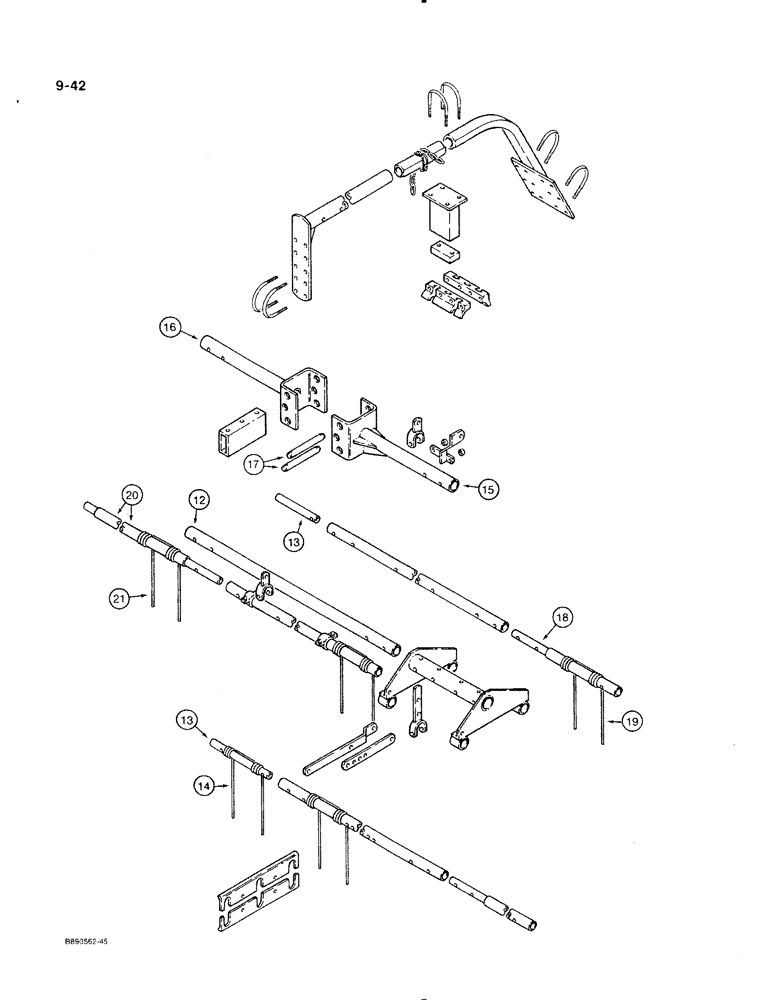

Запчасти Case IH 350 (9-42) - MULCHER ATTACHMENT, UNITS BUILT PRIOR TO 1980 (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
12
487725R1
TUBE - spanner, short
1шт.
Optional hinge parts for rigid tube spanner consists of Ref. 15, 16 and 17 (disk harrow coded K, L, P or Q)
1шт.
(Disk Harrow coded A through L, P or Q)
1шт.
(Disk Harrow coded R, S or T)
2шт.
12
487730R1
TUBE - spanner, long
1шт.
(Disk Harrow coded M or N)
1шт.
113-427
BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 5
(4 used per tube) Hex, 1/2"-13 x 3 1/4", G5
1шт.
474848R1
LOCK NUT,1/2"-13, GB
NUT - hex, self-locking, 1/2 inch NC (4 used per tube)
1шт.
13
487726R1
TUBE
CONNECTOR - tooth bar
1шт.
(Disk Harrow coded R, S, or T)
4шт.
(Disk Harrow coded A through L, P or Q)
2шт.
13
487731R1
CONNECTOR - tooth bar
1шт.
(Disk Harrow coded M or N)
2шт.
14
72901C1
TOOTH
- connector bar
1шт.
(Disk Harrow coded M or N)
2шт.
487082R1
BOLT,Hex, 3/8" - 16 x 2 3/4"
- shoulder
4шт.
385525R1
LOCK NUT,3/8"-16, GB
NUT - hex, self-locking, 3/8 inch NC
4шт.
15
487729R1
HINGE - outside
1шт.
Optional hinge parts for rigid tube spanner consists of Ref. 15, 16 and 17 (disk harrow coded K, L, P or Q)
1шт.
(Disk Harrow coded K, L, P or Q)
1шт.
16
487727R1
SUPPORT
HINGE - inside
1шт.
Optional hinge parts for rigid tube spanner consists of Ref. 15, 16 and 17 (disk harrow coded K, L, P or Q)
1шт.
(Disk Harrow coded K, L, P or Q)
1шт.
113-713
BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 5
1шт.
113-427
BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 5
4шт.
474848R1
LOCK NUT,1/2"-13, GB
NUT - hex, self-locking, 1/2 inch NC
4шт.
129-108
NUT,3/4"-10, G5
1шт.
17
487728R1
PIN - hinge
1шт.
Optional hinge parts for rigid tube spanner consists of Ref. 15, 16 and 17 (disk harrow coded K, L, P or Q)
1шт.
(Disk Harrow coded K, L, P or Q)
2шт.
668752R1
WASHER
- flat, 29/32 x 1-1/4 x 1/16 inch
2шт.
132-154
COTTER PIN,1/4" x 2"
PIN - cotter, 1/4 x 1-3/4 inch
2шт.
520177R11
PIN
- hair
2шт.
18
487777R1
TUBE
BAR - tooth extension
1шт.
Ref. 18 through 21 in this figure and Ref. 22 through 25 in Figure 9-44 are used when converting from a two bar to a three bar mulcher.
1шт.
(Disk Harrow coded P or Q) (6 used with center bar attachment)
4шт.
19
72901C1
TOOTH
- extension bar (1 used per bar)
1шт.
Ref. 18 through 21 in this figure and Ref. 22 through 25 in Figure 9-44 are used when converting from a two bar to a three bar mulcher.
1шт.
487082R1
BOLT,Hex, 3/8" - 16 x 2 3/4"
- shoulder (2 used per tooth)
1шт.
385525R1
LOCK NUT,3/8"-16, GB
NUT - hex, self-locking, 3/8 inch NC (2 used per tooth)
1шт.
20
487731R1
CONNECTOR - tooth bar
1шт.
Ref. 18 through 21 in this figure and Ref. 22 through 25 in Figure 9-44 are used when converting from a two bar to a three bar mulcher.
1шт.
(Disk Harrow coded M or N)
1шт.
21
72901C1
TOOTH
- connector bar
1шт.
Ref. 18 through 21 in this figure and Ref. 22 through 25 in Figure 9-44 are used when converting from a two bar to a three bar mulcher.
1шт.
(Disk Harrow coded M or N)
1шт.
487082R1
BOLT,Hex, 3/8" - 16 x 2 3/4"
- shoulder
2шт.
385525R1
LOCK NUT,3/8"-16, GB
NUT - hex, self-locking, 3/8 inch NC
2шт.
Выбрано товаров: 48
