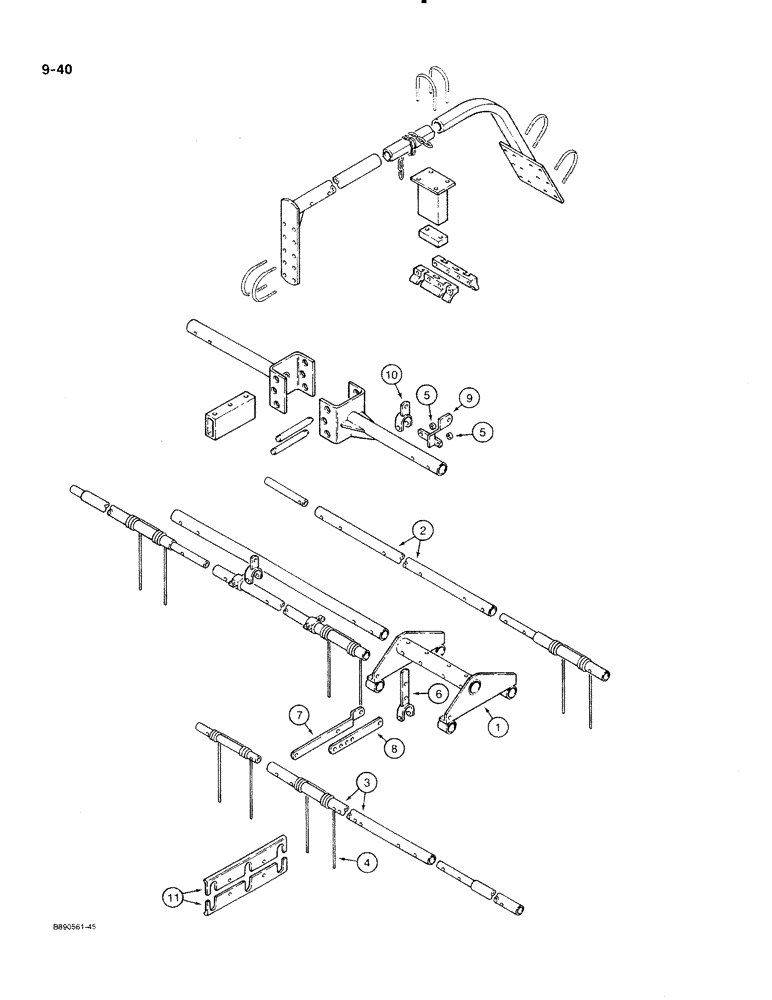

Запчасти Case IH 350 (9-40) - MULCHER ATTACHMENT, UNITS BUILT PRIOR TO 1980 (09) - CHASSIS/ATTACHMENTS

1

485614R2

FRAME

- tooth bar, 15 inches wide

1шт.

(Disk Harrow coded R, S or T)

1шт.

1

485615R2

FRAME

- tooth bar, 30 inches wide

1шт.

(Disk Harrow coded A through F)

2шт.

(Disk Harrow coded G, H or J)

1шт.

1

485616R2

FRAME

- tooth bar, 45 inches wide

1шт.

(Disk Harrow coded K through T)

2шт.

(Disk Harrow coded G, H or J)

1шт.

2

485589R1

TUBE

BAR - first tooth

1шт.

(Disk Harrow coded R, S or T)

1шт.

2

485596R1

TUBE

BAR - first tooth

1шт.

(Disk Harrow coded A through F)

2шт.

(Disk Harrow coded G, H or J)

1шт.

2

485599R1

TUBE

BAR - first tooth

1шт.

(Disk Harrow coded K through T)

2шт.

(Disk Harrow coded G, H or J)

1шт.

3

485590R1

TUBE

BAR - third tooth

1шт.

(Disk Harrow coded R, S or T)

1шт.

3

485597R1

TUBE

BAR - third tooth

1шт.

(Disk Harrow coded A through F)

2шт.

(Disk Harrow coded G, H or J)

1шт.

3

485600R1

TUBE

BAR - third tooth

1шт.

(Disk Harrow coded K through T)

2шт.

(Disk Harrow coded G, H or J)

1шт.

137313

PIN,1/4" x 2 3/4"

Split (Cotter), , 4 used per bar 1/4" x 2 3/4"

1шт.

4

485613R1

TOOTH

- first and second bar

1шт.

(Disk Harrow coded A through F)

12шт.

(Disk Harrow coded K through Q)

20шт.

(Disk Harrow coded G, H, J, R, S or T)

26шт.

487082C1

BOLT - shoulder (2 used per tooth)

1шт.

385525R1

LOCK NUT,3/8"-16, GB

NUT - hex, self-locking, 3/8 inch NC (2 used per tooth)

1шт.

5

485591R1

SPACER

BUSHING - tooth

1шт.

(Disk Harrow coded R, S and T)

2шт.

6

485592R1

ARM

HANDLE - bar (1 used per frame)

1шт.

NLS

NO LONGER SERVICED

- hex, 7/16 NC x 2-3/4 inch

2шт.

473213R1

LOCK NUT,7/16"-14, GB

NUT - hex, self-locking, 7/16 inch NC

2шт.

7

485593R1

SUPPORT

EXTENSION - handle, long (1 used per handle)

1шт.

8

485594R1

BAR

EXTENSION - handle, short (1 used per handle)

1шт.

21685R1

RIVET,Tr Hd, 3/8" x 1"

PIN - clevis, 7/16 x 1 inch

4шт.

25846R1

WASHER

- flat, 15/32 x 59/64 x 3/32 inch

3шт.

120169

COTTER PIN,5/32" x 1"

PIN, SPLIT (COTTER), 5/32" x 1"

3шт.

480523R1

HAIR PIN COTTER

1шт.

9

485595R1

SUPPORT

POST - front

1шт.

(Disk Harrow coded R, S and T)

1шт.

10

485601R1

ARM

POST - front (1 used per frame)

1шт.

(Disk Harrow coded A through Q)

1шт.

11

485598R1

SUPPORT

RAIL - center (2 used per post)

1шт.

(Disk Harrow coded A through Q)

1шт.

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

2шт.

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

9635082

NUT,5/16" - 18, Gr 5

2шт.
