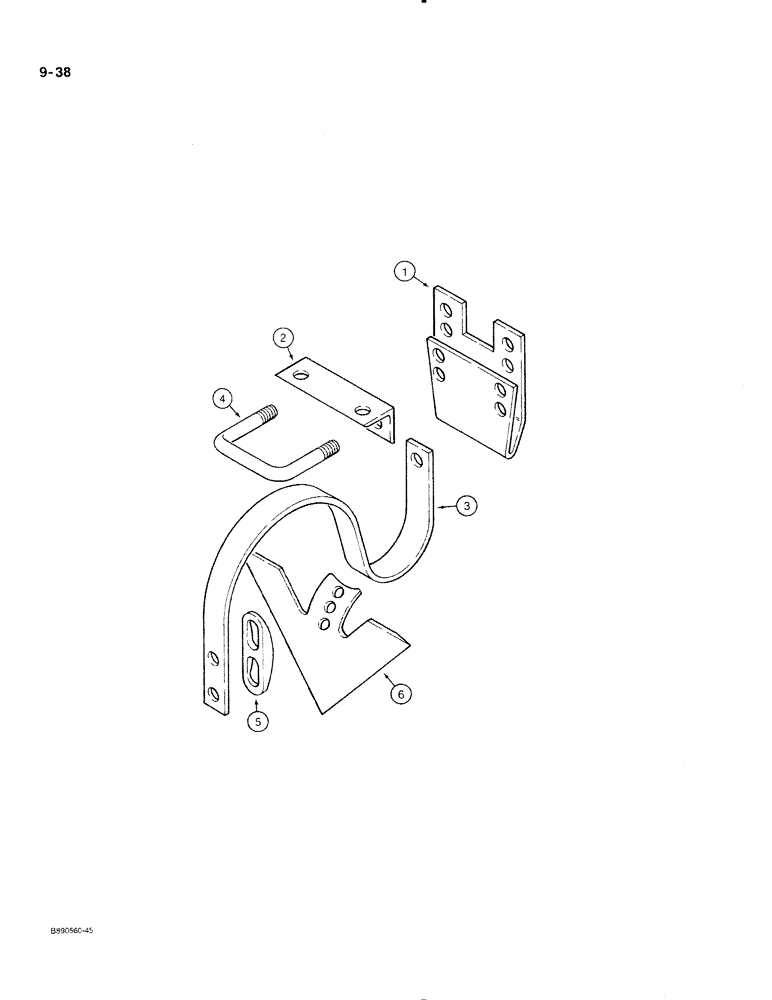

Запчасти Case IH 350 (9-38) - CENTER SHANK ATTACHMENT, U-BOLT RETAINED SUPPORT BRACKET (09) - CHASSIS/ATTACHMENTS

1

542563R1

SUPPORT ASSY.

SUPPORT - shank

1шт.

2

466947R1

ANGLE

BRACKET - support mounting

1шт.

18822R1

BOLT,Hex, 5/8"-11 x 1 1/2", G2, Full Thd

- hex, 5/8 NC x 1-1/2 inch, 2 used per support

1шт.

18458R1

BOLT,Hex, 5/8"-11 x 1 3/4", G2, Full Thd

- hex, 5/8 NC x 1-3/4 inch, 2 used per support

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, , 4 used per support 5/8"

1шт.

129-107

NUT,5/8"-11, G5

4 used per support 5/8"-11, G5

1шт.

3

542564R1

TOOTH

SHANK - center

1шт.

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

1 used per shank Hex, 1/2"-13 x 1 1/2", G5, Full Thd

1шт.

9413967

LOCK NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2 inch NC, 1 used per shank

1шт.

4

543439R1

BOLT (SPREADER),U, 1/2" - 13 x 1.60"

U-BOLT - bracket retaining, 1 used per bracket

1шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, , 2 used per bracket 1/2"

1шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex, 2 used per bracket 1/2"-13, G5

1шт.

5

466868R1

WEDGE

- sweep adjusting

1шт.

6

479005R2

SWEEP

- 6 inch, universal

1шт.

25596BBX

BOLT

- special, 1 used per sweep

1шт.

18697R1

CARRIAGE BOLT,Sq Nk, 7/16" - 14 x 1 3/4", Gr 2

BOLT - carriage, 7/16 NC x 1-3/4 inch, 1 used per sweep

1шт.

NLS

NO LONGER SERVICED

NUT - hex, 7/16 inch NC, 2 used per sweep

1шт.
