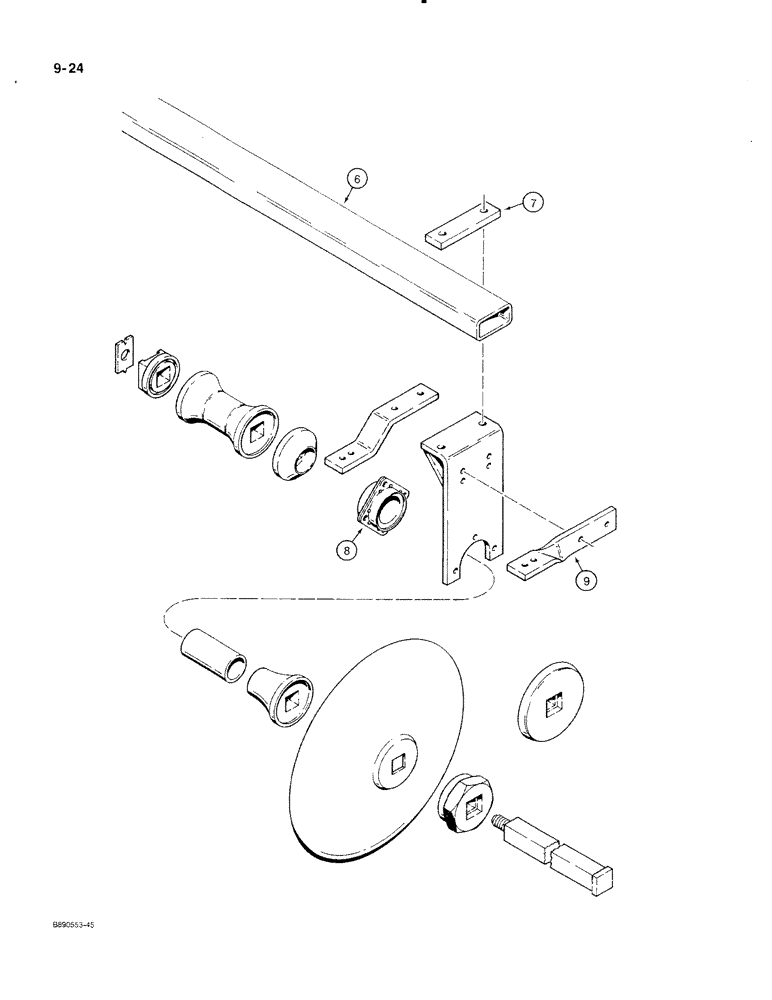

Запчасти Case IH 350 (9-24) - FRONT AND REAR GANGS AND GANG BARS (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
6
472599R3
BAR - rear gang
1шт.
(Disk Harrow coded P through T)
2шт.
6
479302R1
TUBE
BAR - rear gang
1шт.
(Disk Harrow coded D through J)
2шт.
6
479303R2
TUBE
BAR - front gang
1шт.
(Disk Harrow coded D through J)
2шт.
6
485308R1
BAR - rear gang
1шт.
(Disk Harrow coded R, S and T)
2шт.
7
479021R1
BAR
- bearing bracket
1шт.
(2 used per gang)
1шт.
(3 used on units with third bearing attachment)
1шт.
271730
SWASH PLATE,Hex, 5/8" - 11 x 3 3/4", Gr 5
- hex, 5/8 NC x 3-3/4 inch
1шт.
(Disk Harrows with 8 bearings)
15шт.
(Disk Harrows with 10 bearings)
19шт.
(Disk Harrows with 12 bearings)
23шт.
492-11062
BEARING WASHER,5/8"
WASHER, LOCK, 5/8"
1шт.
(Disk Harrows with 8 bearings)
15шт.
(Disk Harrows with 10 bearings)
19шт.
(Disk Harrows with 12 bearings)
23шт.
129-107
NUT,5/8"-11, G5
1шт.
(Disk Harrows with 8 bearings)
15шт.
(Disk Harrows with 10 bearings)
19шт.
(Disk Harrows with 12 bearings)
23шт.
8
ST490
BEARING
- ball, pre-lubricated, if used
1шт.
8
ST491A
BALL BEARING,45mm ID
BEARING - ball, with grease fitting, if used
1шт.
(2 used per gang)
1шт.
(3 used on units with third bearing attachment)
1шт.
18496R1
BOLT,Hex, 1/2"-13 x 1 1/2", G2
- hex, 1/2 NC x 1-1/2 inch
1шт.
(3 used per ball bearing)
1шт.
25710R1
WASHER
- flat, 17/32 x 1-1/16 x 5/64 inch
1шт.
(3 used per ball bearing)
1шт.
80679
LOCK WASHER,1/20.507 CST ZND
WASHER, LOCK, 1/2"
1шт.
(3 used per ball bearing)
1шт.
425-108
NUT,1/2" - 13, Gr 5
NUT, , Hex 1/2"-13, G5
1шт.
(3 used per ball bearing)
1шт.
9
482073R1
BRACKET
- scraper bar support
1шт.
(2 used per gang)
1шт.
(3 used on units with third bearing attachment)
1шт.
18496R1
BOLT,Hex, 1/2"-13 x 1 1/2", G2
- hex, 1/2 NC x 1-1/2
1шт.
(2 used per scraper bar)
1шт.
80679
LOCK WASHER,1/20.507 CST ZND
WASHER, LOCK, 1/2"
1шт.
(2 used per scraper bar)
1шт.
425-108
NUT,1/2" - 13, Gr 5
NUT, , Hex 1/2"-13, G5
1шт.
(2 used per scraper bar)
1шт.
Выбрано товаров: 44
