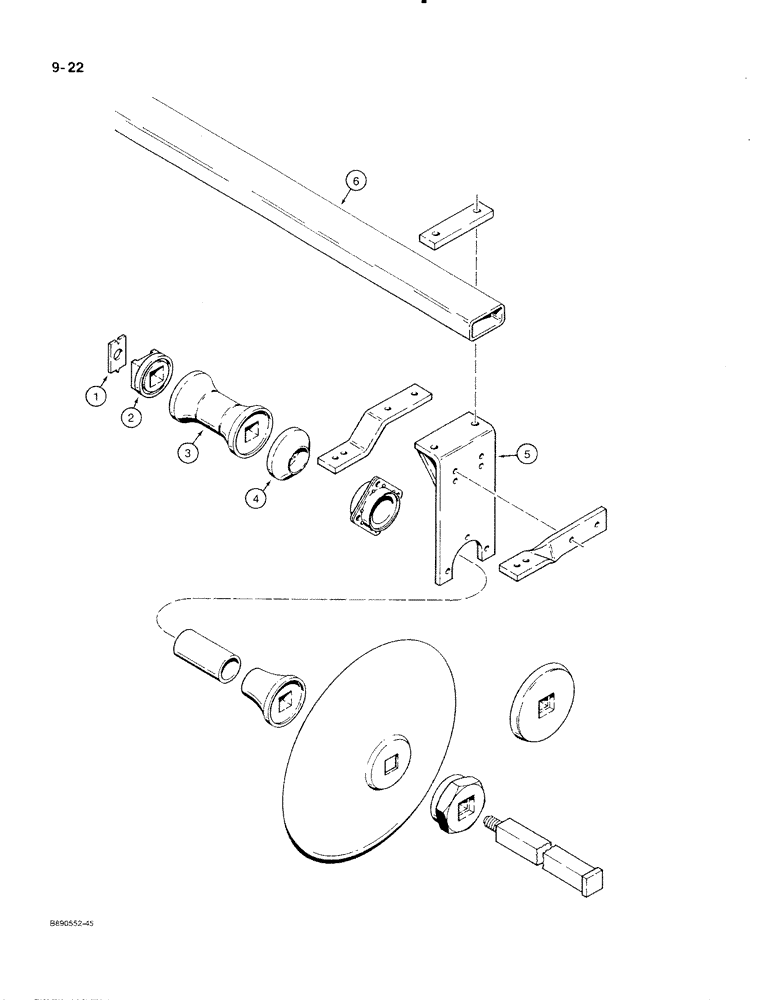

Запчасти Case IH 350 (9-22) - FRONT AND REAR GANGS AND GANG BARS (09) - CHASSIS/ATTACHMENTS

1

489292R1

SUPPORT ASSY.

LOCK - arbor bolt nut

4шт.

131049

HYD CONNECTOR

- lock, 1-1/8 inch

4шт.

2

PA4167

WASHER

- arbor bolt

4шт.

(Disk Harrow coded A through J)

4шт.

2

481611R1

WASHER

- arbor bolt

4шт.

(Disk Harrow coded K through T)

4шт.

3

481416R1

SPOOL

- spacing, 7-1/2 inch

1шт.

(Disk Harrow coded A)

12шт.

(Disk Harrow coded B)

6шт.

(Disk Harrow coded D, Q and T)

16шт.

(Disk Harrow coded E)

8шт.

(Disk Harrow coded G)

20шт.

(Disk Harrow coded H)

10шт.

(Disk Harrow coded K)

24шт.

(Disk Harrow coded M)

26шт.

(Disk Harrow coded P)

30шт.

(Disk Harrow coded S)

32шт.

3

481417R1

SPOOL

- spacing, 9 inch

1шт.

(Disk Harrow coded B)

4шт.

(Disk Harrow coded C and H)

8шт.

(Disk Harrow coded E)

6шт.

(Disk Harrow coded F and T)

12шт.

(Disk Harrow coded J)

16шт.

(Disk Harrow coded L)

18шт.

(Disk Harrow coded N)

22шт.

(Disk Harrow coded Q)

10шт.

(Disk Harrow coded R)

24шт.

4

472592R2

SPOOL

- bearing, short (All Disk Harrows except those coded D, G and K)

1шт.

(2 used per gang)

1шт.

(3 used on units with third bearing attachment)

1шт.

4

101191C1

SPOOL

- bearing (Disk Harrows coded D, G and K)

1шт.

(2 used per gang)

1шт.

5

485740R1

SUPPORT ASSY.

BRACKET - bearing

1шт.

(2 used per gang)

1шт.

(3 used on units with third bearing attachment)

1шт.

6

472595R2

BAR - front gang

1шт.

(Disk Harrow coded A, B and C)

2шт.

6

472596R1

BAR - rear gang

1шт.

(Disk Harrow coded A, B and C)

2шт.

6

472597R3

TUBE

BAR - gang

1шт.

(Disk Harrow coded K through N and Q, front)

2шт.

(Disk Harrow coded K and L, rear)

2шт.

6

472598R2

BAR - gang

1шт.

(Disk Harrow coded M and N, rear)

2шт.

(Disk Harrow coded P, front)

2шт.
