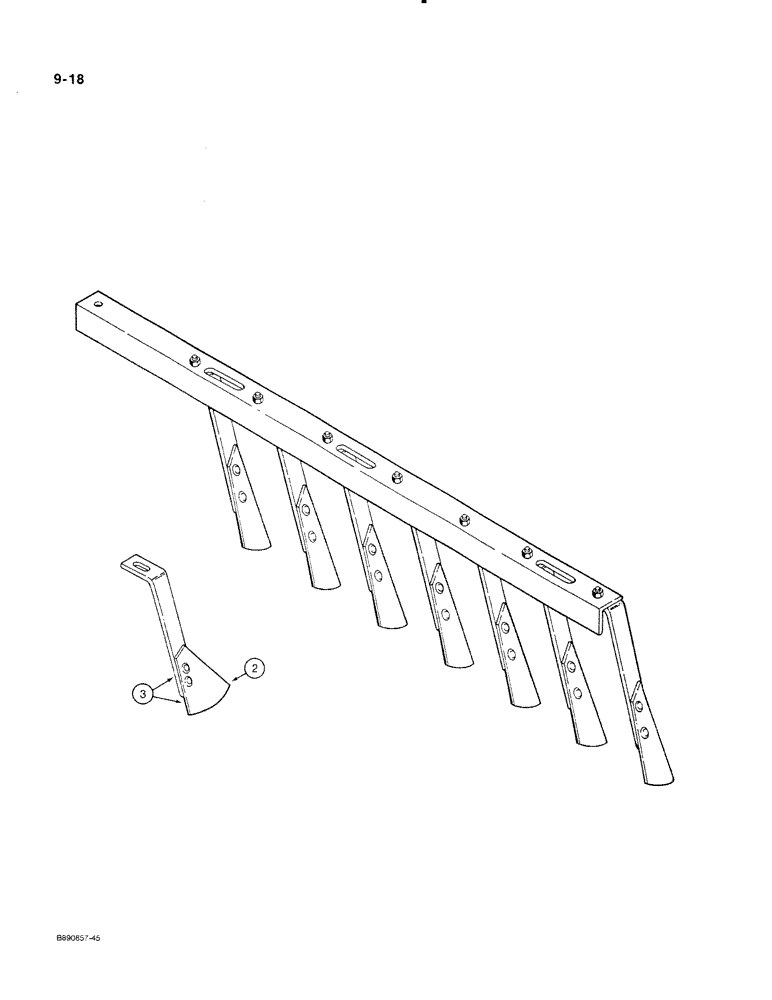

Запчасти Case IH 350 (9-18) - SCRAPERS AND SCRAPER ANGLES (09) - CHASSIS/ATTACHMENTS

2

543999R1

BLADE

- scraper

1шт.

(1 used per blade scraper)

1шт.

106930

RIVET,Tr Hd, 3/8" x 1"

- truss head, 3/8 x 1

1шт.

(2 used per blade scraper)

1шт.

3

465060R93

SCRAPER

- left-hand

1шт.

3

465061R93

BLADE

SCRAPER - right-hand

1шт.

(Disk Harrow coded A and F)

10шт.

(Disk Harrow coded B)

9шт.

(Disk Harrow coded C)

8шт.

(Disk Harrow coded D and J)

12шт.

(Disk Harrow coded E)

11шт.

(Disk Harrow coded G and L)

14шт.

(Disk Harrow coded H)

13шт.

(Disk Harrow coded K and N)

16шт.

(Disk Harrow coded M, Q and R)

18шт.

(Disk Harrow coded P and T)

20шт.

(Disk Harrow coded S)

22шт.

465567R1

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/2", Gr 5

BOLT - carriage, 1/2 NC x 1-1/2 inch

1шт.

(2 used per blade scraper)

1шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

1шт.

(2 used per blade scraper)

1шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

(2 used per blade scraper)

1шт.
