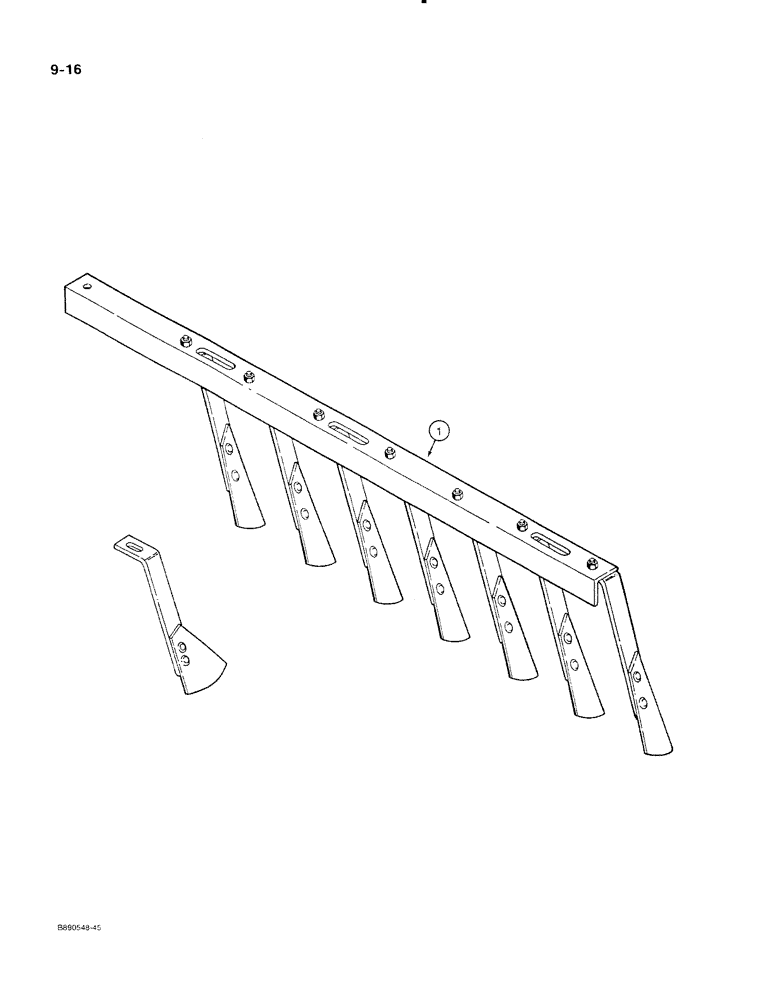

Запчасти Case IH 350 (9-16) - SCRAPERS AND SCRAPER ANGLES (09) - CHASSIS/ATTACHMENTS

1

468560R2

BAR

ANGLE - rear scraper bar, left-hand and right-hand

1шт.

(Disk Harrow coded A and B)

2шт.

1

474428R2

ANGLE

- rear scraper bar, left-hand

1шт.

(Disk Harrow coded C)

1шт.

1

474429R2

ANGLE

- rear scraper bar, right-hand

1шт.

(Disk Harrow coded C)

1шт.

1

479297R2

BAR

ANGLE - rear scraper bar, left-hand and right-hand

1шт.

(Disk Harrow coded D and E)

2шт.

1

479299R2

BAR

ANGLE - rear scraper bar, left-hand

1шт.

(Disk Harrow coded F)

1шт.

1

479300R2

BAR

ANGLE - rear scraper bar, right-hand

1шт.

(Disk Harrow coded F)

1шт.

1

479301R3

ANGLE

- rear scraper bar, left-hand and right-hand

1шт.

(Disk Harrow coded G and H)

2шт.

1

479291R3

ANGLE

- rear scraper bar, left-hand

1шт.

(Disk Harrow coded J)

1шт.

1

479292R3

ANGLE

- rear scraper bar, right-hand

1шт.

(Disk Harrow coded J)

1шт.

1

472570R3

ANGLE

- rear scraper bar, left-hand and right-hand

1шт.

(Disk Harrow coded K)

2шт.

1

479304R3

ANGLE

- rear scraper bar, left-hand

1шт.

(Disk Harrow coded L)

1шт.

1

479305R3

ANGLE - rear scraper bar, right-hand

1шт.

(Disk Harrow coded L)

1шт.

1

472572R2

ANGLE

- rear scraper bar, left-hand

1шт.

(Disk Harrow coded M)

1шт.

1

472573R2

ANGLE

- rear scraper bar, right-hand

1шт.

(Disk Harrow coded M)

1шт.

1

479306R2

ANGLE

- rear scraper bar, left-hand

1шт.

(Disk Harrow coded N)

1шт.

1

479307R2

ANGLE - rear scraper bar, right-hand

1шт.

(Disk Harrow coded N)

1шт.

1

472574R2

ANGLE

- rear scraper bar, left-hand and right-hand

1шт.

(Disk Harrow coded P and Q)

2шт.

1

481830R1

ANGLE - rear scraper bar, left-hand

1шт.

(Disk Harrow coded R)

1шт.

1

481831R1

ANGLE - rear scraper bar, right-hand

1шт.

(Disk Harrow coded R)

1шт.

1

481826R1

ANGLE - rear scraper bar, left-hand)

1шт.

(Disk Harrow coded S and T)

1шт.

1

481827R1

ANGLE - rear scraper bar, right-hand

1шт.

(Disk Harrow coded S and T)

1шт.

18573R1

CARRIAGE BOLT,Short Sq Nk, 5/8" - 11 x 1 1/2", Gr 2

BOLT - carriage, 5/8 NC x 1-1/2 (Disk Harrow coded A through J)

1шт.

(2 used per angle) (Disk Harrow coded K through T)

1шт.

(3 used per angle)

1шт.

608595R1

NUT

- hex, self-locking, 5/8 NC (Disk Harrow coded A through J)

1шт.

(2 used per angle) (Disk Harrow coded)K through T

1шт.

(3 used per angle)

1шт.
