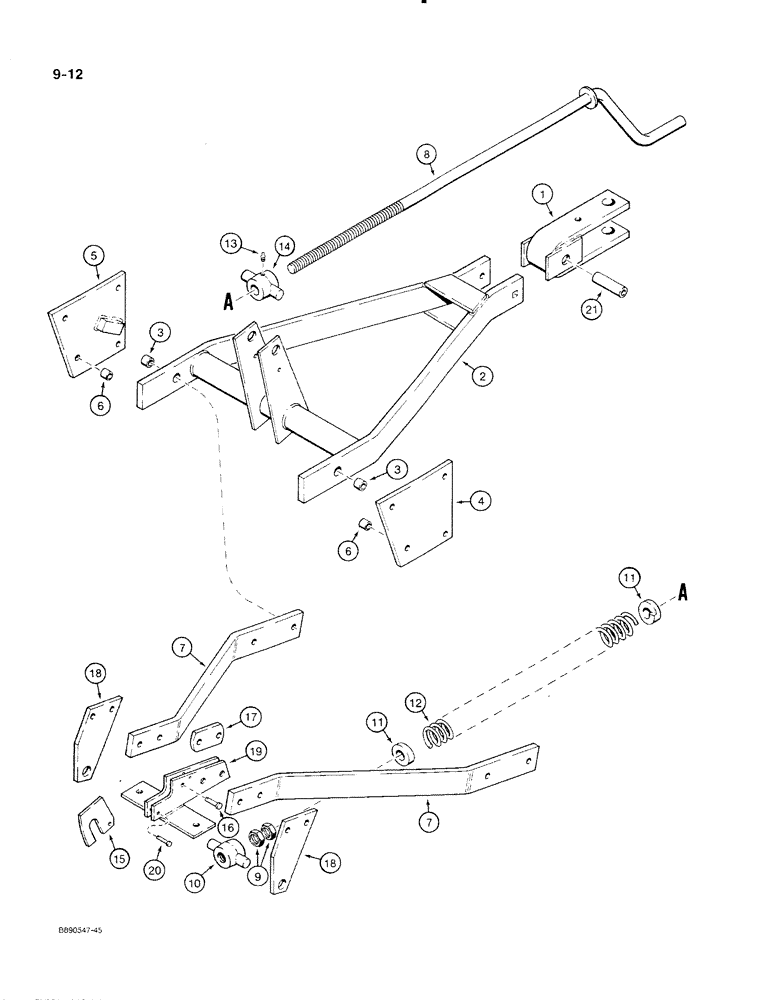

Запчасти Case IH 350 (9-12) - HITCH (09) - CHASSIS/ATTACHMENTS

1

1333760C1

CLEVIS

- hitch, replaces 468546R11

1шт.

2

472542R91

FRAME

- hitch

1шт.

466715R1

CARRIAGE BOLT,Sq Nk, 3/4" - 10 x 5 1/4", Gr 5

BOLT - carriage, hitch to clevis

1шт.

467750R1

WASHER

- flat, 25/32 x 1-1/2 x 0.138 inch (3.5 mm) thick

1шт.

192-27

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

1шт.

129-108

NUT,3/4"-10, G5

1шт.

21161R1

BOLT,Hex, 3/8"-16 x 3 3/4", G2

- hex, 3/8 NC x 3-3/4 inch

1шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

3

472547R1

BUSHING

- hitch pivot, frame side bar to side plate

2шт.

4

472549R91

PLATE

- hitch, right-hand

1шт.

5

472548R91

PLATE - hitch, left-hand

1шт.

113-607

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

4шт.

18824R1

BOLT,Hex, 5/8"-11 x 2 1/2", G2

- hex, 5/8 NC x 2-1/2 inch

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

6шт.

129-107

NUT,5/8"-11, G5

6шт.

113-705

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

- hex, 3/4 NC x 2-1/2 inch

2шт.

192-27

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

129-108

NUT,3/4"-10, G5

2шт.

6

PO11463

SPACER,3/4" Pipe x 11/16"

- 3/4 x .656 inch

2шт.

7

480957R1

SUPPORT

BRACE - cylinder bracket

2шт.

8

472556R91

CRANK

- hitch

1шт.

9

426899

NUT,Jam, 1"-8, G5

- hex, jam, hitch crank

2шт.

132-154

COTTER PIN,1/4" x 2"

PIN - cotter, 1/4 x 1-3/4 inch

1шт.

10

472558R1

PIVOT

TRUNNION - hitch crank, at aswivel bracket

1шт.

11

PO2932

RETAINER

BLOCK - spring

2шт.

12

PO25835

SPRING

- hitch crank

1шт.

13

219-87

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 x .56" lg, Self-Tap

1шт.

14

651894R3

PIVOT

TRUNNION - hitch crank, at hitch frame

1шт.

15

653673R2

LATCH

- cylinder

1шт.

16

21816R1

HEADED PIN,1/2" x 1 3/8"

PIN - clevis, 1/2 x 1-3/8 inch

1шт.

132-310

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

1шт.

17

480958R1

BLOCK

- spacer

1шт.

18

480959R1

SUPPORT

BRACKET - swivel

2шт.

413-1060

BOLT,Hex, 5/8" - 11 x 3-3/4", Gr 5

- hex, 5/8 NC x 3-3/4 inch

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

129-107

NUT,5/8"-11, G5

2шт.

19

480955R11

SUPPORT

- cylinder

1шт.

20

22900R1

HEADED PIN

PIN - clevis, 3/8 inch

1шт.

132-310

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

1шт.

486830R1

COTTER PIN

PIN - hair

1шт.

113-607

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

129-107

NUT,5/8"-11, G5

2шт.

21

466713R1

SPACER

BUSHING - hitch clevis

1шт.
