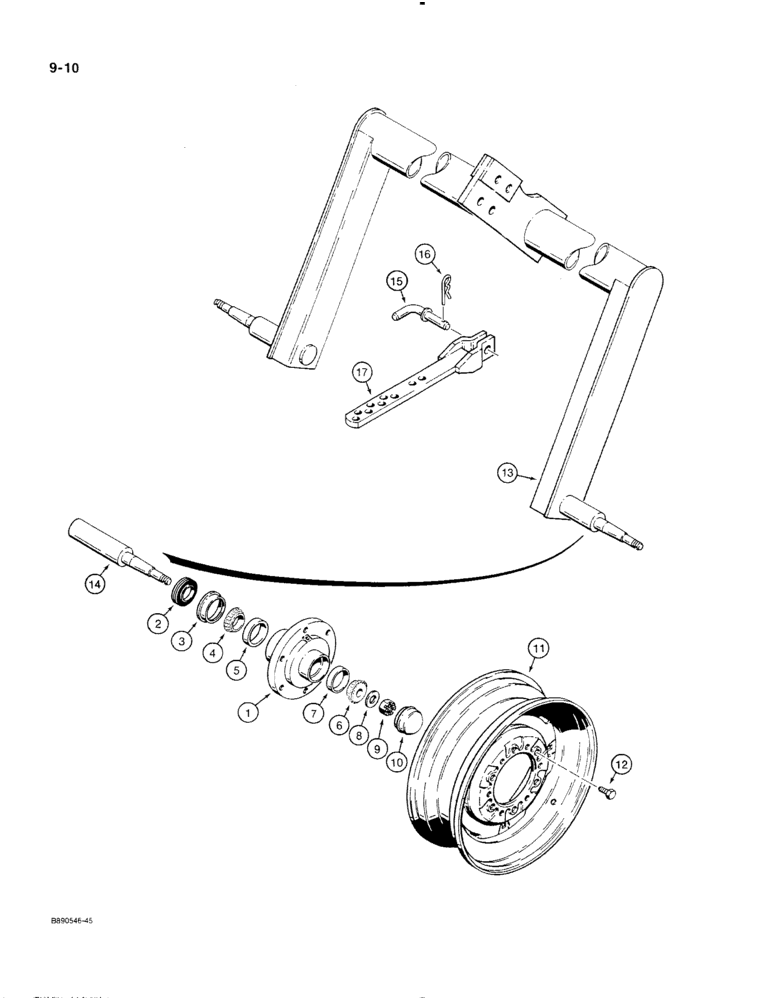

Запчасти Case IH 350 (9-10) - TRANSPORT LIFT AXLES, 6 BOLT PATTERN HUB (09) - CHASSIS/ATTACHMENTS

1

810087C2

HUB

- wheel, 6 bolt pattern

2шт.

219-87

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 x .56" lg, Self-Tap

2шт.

2

472221R91

SEAL,39.57mm ID x 58.6mm OD x 7.37mm Thk

- oil, hub

2шт.

3

472222R1

SLEEVE

- oil seal

2шт.

4

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

BEARING - tapered roller, inner

2шт.

5

651817R1

BEARING CUP

CUP - hub, inner

2шт.

5

651817R1GV

BEARING CUP

Value, Bearing Cup

2шт.

6

651815R91

BEARING ASSY,7.508" ID x 17.82" OD x 6"

BEARING - tapered roller, outer

2шт.

6

651815R91GV

BEARING CONE

Value, Cone Bearing

2шт.

7

651814R1

BEARING CUP

CUP - wheel hub, inner

2шт.

8

369857R1

WASHER,20.7mm ID x 31.75mm OD x 3mm Thk

- 25/32 x 1-1/4 x 0.118 inch

2шт.

9

427640

SLOTTED NUT,3/4"-16, G5

NUT - hex, slotted, 3/4 inch NF

2шт.

137204

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), 1/8" x 1 1/2"

2шт.

10

B13280

HUB CAP

CAP - wheel hub

2шт.

11

T25842

RIM

WHEEL - 14 x 5 inch, 6 bolt pattern

2шт.

11

T53527

WHEEL

- 15 x 5 inch, 6 bolt pattern

2шт.

12

549962R1

BOLT,1 1/2" - 20 x 1 1/2", Class 3

- wheel hub

12шт.

13

96129C91

CENTER AXLE

AXLE ASSEMBLY - wheel, includes items 8, 9 and 14

1шт.

14

96131C91

SPINDLE

ASSEMBLY - axle, includes items 8 and 9

2шт.

15

651896R1

ROD

PIN - gauging strap

1шт.

16

486830R1

COTTER PIN

PIN - hair

1шт.

17

651965R91

STRAP

- gauging

1шт.

21805R1

PIN

- clevis, 5/8 x 2-1/8 inch

1шт.

21829R1

COTTER PIN,3/16" x 1 1/8"

3/16" x 1 1/8"

1шт.
