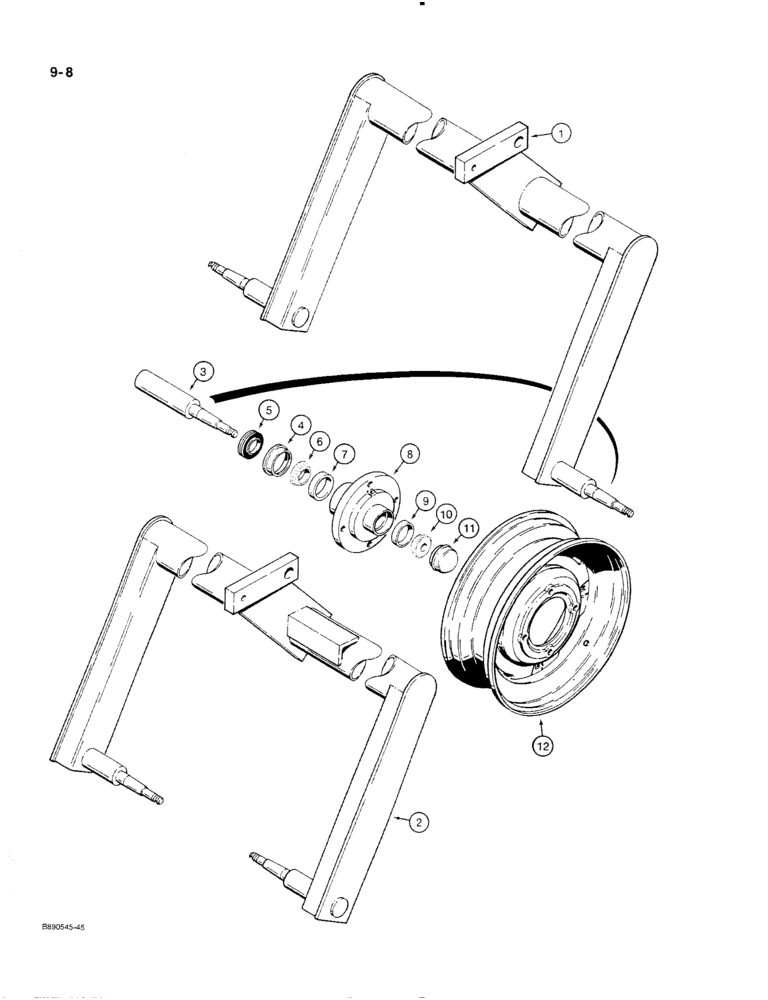

Запчасти Case IH 350 (9-08) - TRANSPORT LIFT AXLES, 4 BOLT PATTERN HUB (09) - CHASSIS/ATTACHMENTS

1

472613R91

AXLE

ASSEMBLY - wheel, 4 bolt pattern hub (Disk Harrow coded A through J)

1шт.

2

479344R91

AXLE

ASSEMBLY - wheel, 4 bolt pattern hub (Disk Harrow coded K through T)

1шт.

.

(Used with 80 inch axle)

1шт.

2

543200R91

AXLE

ASSEMBLY - wheel, 4 bolt pattern hub (Disk Harrow coded K through T)

1шт.

.

(Used with 120 inch axle)

1шт.

3

472225R1

SPINDLE

ASSEMBLY - wheel

2шт.

.

132-335

COTTER PIN,1/8" x 1 1/4"

1/8" x 1-1/4"

1шт.

.

369857R1

WASHER,20.7mm ID x 31.75mm OD x 3mm Thk

- 25/32 x 1-1/2 x 0.138 inch (3.5 mm) thick

1шт.

.

69442D

NUT

- hex, slotted, 3/4 NF

1шт.

4

472222R1

SLEEVE

- oil seal

2шт.

5

472221R91

SEAL,39.57mm ID x 58.6mm OD x 7.37mm Thk

- oil, wheel hub

2шт.

6

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

BEARING - tapered roller, wheel, inner

2шт.

7

651817R1

BEARING CUP

CUP - wheel hub, inner

2шт.

7

651817R1GV

BEARING CUP

Value, Bearing Cup

2шт.

8

472220R11

HUB

ASSEMBLY - wheel

2шт.

.

443804

SCREW - set, slotted headless, 1/4 NF x 1/4 inch

1шт.

.

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING - grease, straight, 1/4 NF

2шт.

.

351079R1

BOLT,Hex Counter Shank, 1/2" - 20 x 23/32"

- wheel hub

8шт.

9

651814R1

BEARING CUP

CUP - wheel hub, outer

2шт.

10

651815R91

BEARING ASSY,7.508" ID x 17.82" OD x 6"

BEARING - tapered roller, wheel, outer

2шт.

10

651815R91GV

BEARING CONE

Value, Cone Bearing

2шт.

11

651194R1

CAP

- wheel hub

2шт.

12

455169R92

WHEEL

ASSEMBLY - disk and rim, 15 inch, 4 bolt pattern

2шт.

12

T25852

RIM

WHEEL ASSEMBLY - disk and rim, 14 inch, 4 bolt pattern

2шт.
