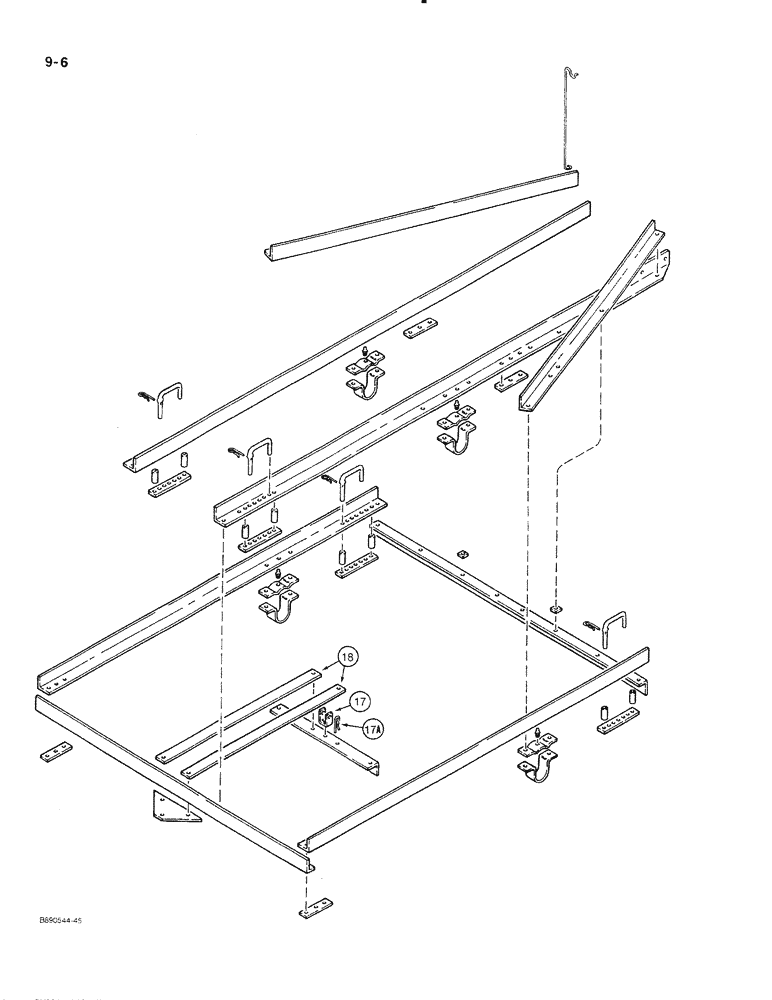

Запчасти Case IH 350 (9-06) - MAIN FRAME (09) - CHASSIS/ATTACHMENTS

17

472540R1

CLEVIS

- transport

1шт.

113-618

BOLT,Hex, 5/8" - 11 x 4", Gr 5

- hex, 5/8 NC x 4 inch

1шт.

425-1410

JAM NUT,Jam, 5/8"-11, G5

- hex jam, 5/8 inch NC

2шт.

465867R1

HEADED PIN,1/2" x 2 1/8"

PIN - clevis, 1/2 x 2-1/8 inch

1шт.

18

472539R1

BAR - weight support

1шт.

(Disk Harrow coded A through J)

2шт.

(Disk Harrow coded K through T with 120 inch axle)

2шт.

18822R1

BOLT,Hex, 5/8"-11 x 1 1/2", G2, Full Thd

- hex, 5/8 NC x 1-1/2 inch

2шт.

18823R1

BOLT,Hex, 5/8"-11 x 2", G2

- hex, 5/8 NC x 2 inch

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

129-107

NUT,5/8"-11, G5

4шт.

18

479317R1

BAR - weight support

1шт.

(Disk Harrow coded K through T with 80 inch axle)

2шт.

18822R1

BOLT,Hex, 5/8"-11 x 1 1/2", G2, Full Thd

- hex, 5/8 NC x 1-1/2 inch

2шт.

18823R1

BOLT,Hex, 5/8"-11 x 2", G2

- hex, 5/8 NC x 2 inch

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

129-107

NUT,5/8"-11, G5

4шт.
