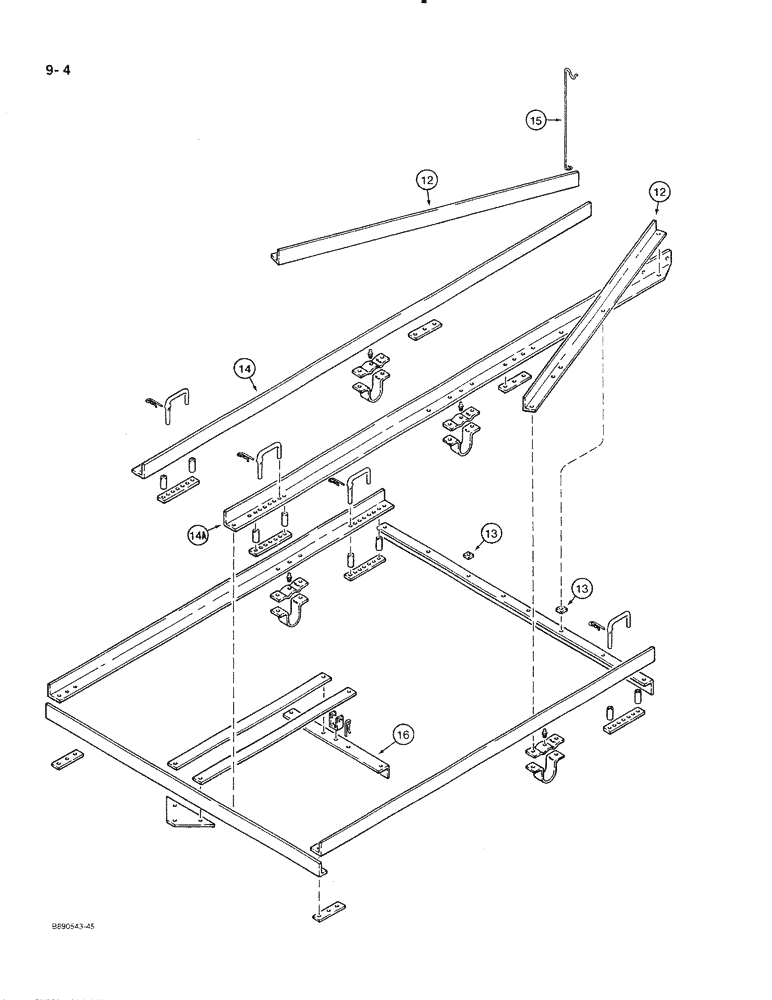

Запчасти Case IH 350 (9-04) - MAIN FRAME (09) - CHASSIS/ATTACHMENTS

12

472533R1

ANGLE

- diagonal

1шт.

(Disk Harrow coded A through J)

2шт.

12

479316R1

ANGLE - diagonal (Disk Harrow coded K through T)

1шт.

(Used with 80 inch axle)

2шт.

12

472534R1

ANGLE - diagonal (Disk Harrow coded K through T)

1шт.

(Used with 120 inch axle)

2шт.

18822R1

BOLT,Hex, 5/8"-11 x 1 1/2", G2, Full Thd

- 5/8 NC x 1-1/2 inch

2шт.

18458R1

BOLT,Hex, 5/8"-11 x 1 3/4", G2, Full Thd

- 5/8 NC x 1-3/4 inch

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

129-107

NUT,5/8"-11, G5

4шт.

13

454075R1

DRIVE CHAIN

SPACER - front frame and diagonal angle

2шт.

14

472523R2

ANGLE

- inner frame, left-hand

1шт.

(Disk Harrow coded A through J)

1шт.

14a

472524R2

ANGLE

- inner frame, right-hand

1шт.

(Disk Harrow coded A through J)

1шт.

14

479311R2

ANGLE - inner frame, left-hand (Disk Harrow coded K through T)

1шт.

(Used with 80 inch axle)

1шт.

14a

479312R2

ANGLE - inner frame, right-hand (Disk Harrow coded K through T)

1шт.

(Used with 80 inch axle)

1шт.

14

472525R2

ANGLE - inner frame, left-hand (Disk Harrow coded K through T)

1шт.

(Used with 120 inch axle)

1шт.

14a

472526R2

ANGLE - inner frame, right-hand (Disk Harrow coded K through T)

1шт.

(Used with 120 inch axle

1шт.

15

651793R2

SUPPORT

- hose

1шт.

18823R1

BOLT,Hex, 5/8"-11 x 2", G2

- hex, 5/8 NC x 2 inch

1шт.

464623R1

WASHER

- 21/32 x 1-1/2 x 0.138 inch (3.5 mm) thick

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

129-107

NUT,5/8"-11, G5

1шт.

16

472538R2

ANGLE - transport

1шт.

18822R1

BOLT,Hex, 5/8"-11 x 1 1/2", G2, Full Thd

- hex, 5/8 NC x 1-1/2 inch

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

129-107

NUT,5/8"-11, G5

2шт.
