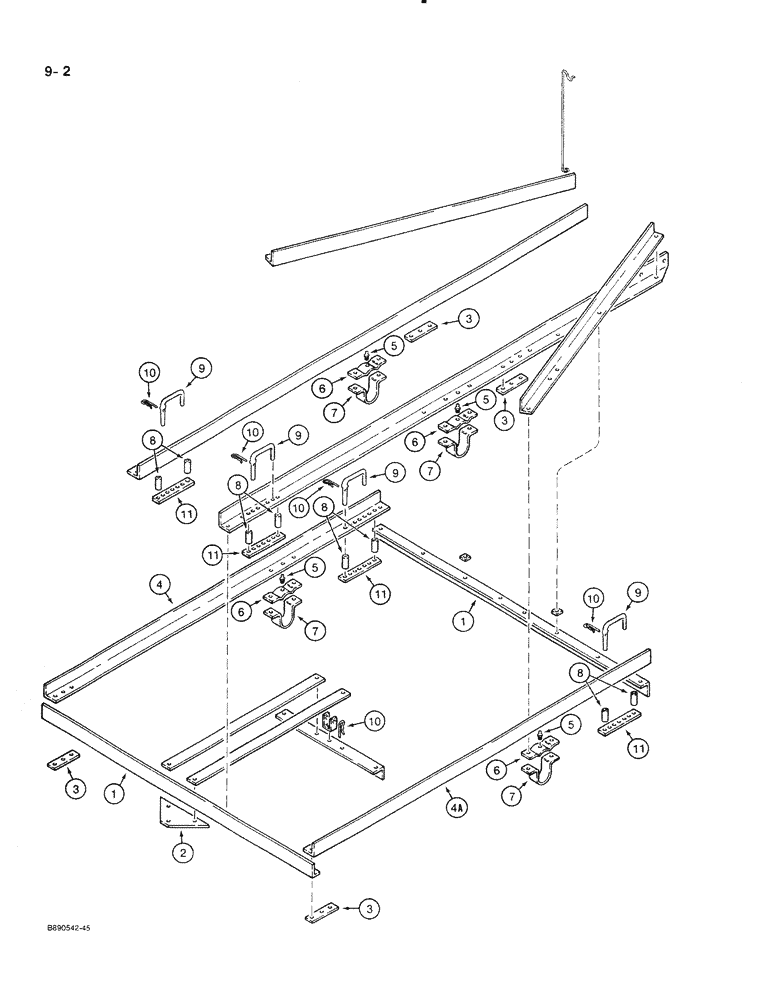

Запчасти Case IH 350 (9-02) - MAIN FRAME (09) - CHASSIS/ATTACHMENTS

1

472531R1

ANGLE

- front and rear frame

1шт.

(Disk Harrow coded A through J)

2шт.

1

479325R1

ANGLE - front frame (Disk Harrow coded K through T)

1шт.

(Used with 80 inch and 120 inch axles)

1шт.

1

485739R1

ANGLE - rear frame (Disk Harrow coded K through T)

1шт.

(Used with 80 inch and 120 inch axles)

1шт.

18822R1

BOLT,Hex, 5/8"-11 x 1 1/2", G2, Full Thd

- hex, 5/8 NC x 1-1/2 inch

8шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

129-107

NUT,5/8"-11, G5

8шт.

2

474006R1

PLATE - rear, hitch

1шт.

3

472535R1

PLATE

STRAP - gang bar

4шт.

113-628

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

Hex, 5/8"-11 x 3 1/2", G5

8шт.

608595R1

NUT

- hex, self-locking, 5/8 inch NC

8шт.

4

472527R1

ANGLE - outer frame, left-hand

1шт.

(Disk Harrow coded A through J)

1шт.

4a

472528R1

ANGLE - outer frame, right-hand

1шт.

(Disk Harrow coded A through J)

1шт.

4

485991R1

ANGLE - outer frame, left-hand (Disk Harrow coded K through T)

1шт.

(Used with 80 inch axle)

1шт.

4a

485992R1

ANGLE - outer frame, right-hand (Disk Harrow coded K through T)

1шт.

(Used with 80 inch axle)

1шт.

4

485989R1

ANGLE - outer frame, left-hand (Disk Harrow coded K through T)

1шт.

(Used with 120 inch axle)

1шт.

4a

485990R1

ANGLE - outer frame, right-hand (Disk Harrow coded K through T)

1шт.

(Used with 120 inch axle)

1шт.

5

128274

LUBE NIPPLE,1/4"-28 NPT x 1.12" lg

FITTING - grease, straight, 1/4 NF

4шт.

6

652815R1

SUPPORT

BEARING - axle, upper

4шт.

7

652816R1

CLAMP

BEARING - axle, lower

4шт.

18458R1

BOLT,Hex, 5/8"-11 x 1 3/4", G2, Full Thd

- hex, 5/8 NC x 1-3/4 inch

6шт.

18619R1

BOLT,Hex, 5/8" - 11 x 2 1/4", Gr 2

- hex, 5/8 NC x 2-1/4 inch

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

129-107

NUT,5/8"-11, G5

8шт.

8

659932R1

BUSHING

SPACER - strap

8шт.

9

472541R1

ROD

PIN - angling

4шт.

10

1978738C1

HAIR PIN COTTER

5шт.

11

472536R1

BAR

STRAP - gang bar

1шт.

(Disk Harrow coded A through J)

4шт.

11

472537R1

STRAP - gang bar .

1шт.

(Disk Harrow coded K through T)

4шт.

271730

SWASH PLATE,Hex, 5/8" - 11 x 3 3/4", Gr 5

- hex, 5/8 NC x 3-3/4 inch

8шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

129-107

NUT,5/8"-11, G5

8шт.
