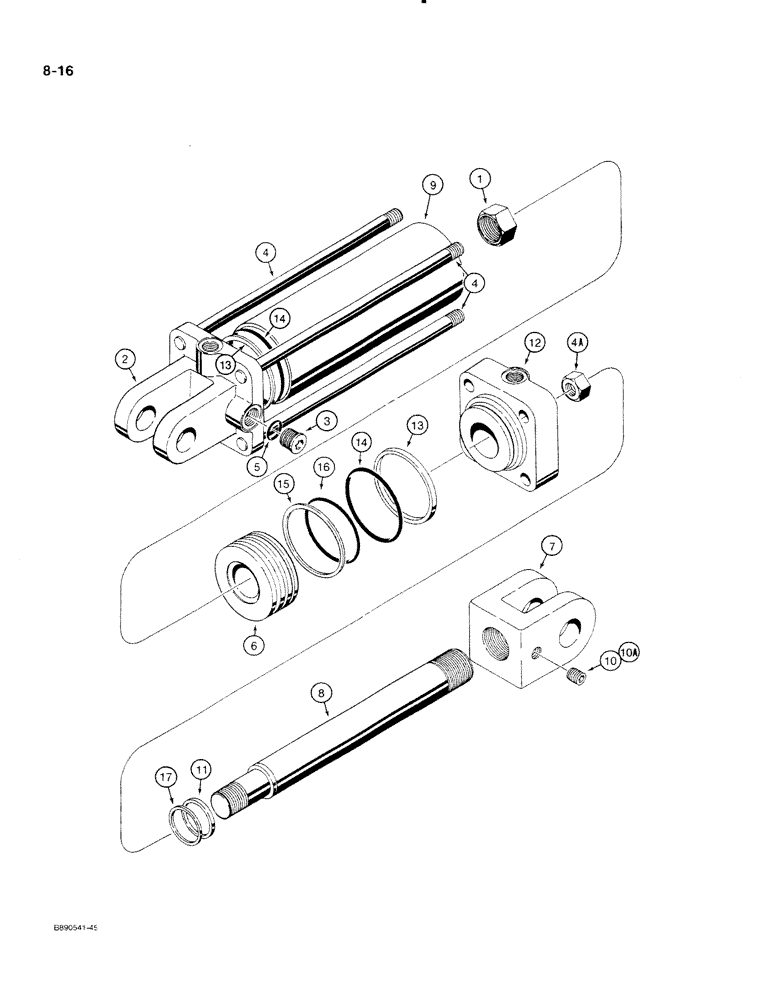

Запчасти Case IH 350 (8-16) - TRANSPORT LIFT CYLINDER -1272147C91 (08) - HYDRAULICS

1272147C91

CYLINDER

ASSEMBLY - 3-1/2 inch ID x 8 inch stroke

1шт.

1

20268R1

LOCK NUT,7/8"-14, GC

NUT - hex, self-locking, 7/8 inch NC, grade 8

1шт.

2

1923599C1

HEAD

CAP - end, cylinder, replaces 1272825C1 end cap

1шт.

3

224582C1

PLUG

- hex socket, 3/4 inch NF

1шт.

4

1272524C1

TIE-ROD,1/2" -13 x 12.65", UNC

BOLT - tie, cylinder

4шт.

4a

102637

NUT,1/2"-13, G5

4шт.

5

NSS

NOT SOLD SEPARAT

O-RING - plug

1шт.

Part of Cylinder Repair Kit P/N 84919C2

1шт.

6

145422C1

PISTON

- cylinder

1шт.

7

145233C1

CLEVIS,1/4" - 12

- rod end

1шт.

8

145231C1

PISTON ROD

ROD - piston

1шт.

9

NSS

NOT SOLD SEPARAT

TUBE - cylinder

1шт.

10

145453C1

PLUG,Lock, 7.938mm Dia x 3.175mm Thk, Nylon

PAD - insert, clevis

1шт.

10a

125843

SET SCREW,Hex Skt, 3/8"-16 x 3/8"

SCREW - set, hex socket, 3/8 NC x 3/8 inch

1шт.

11

NSS

NOT SOLD SEPARAT

WIPER - piston rod

1шт.

Part of Cylinder Repair Kit P/N 84919C2

1шт.

12

1272826C1

HEAD

GLAND - cylinder

1шт.

13

NSS

NOT SOLD SEPARAT

RING - backup, gland and end cap O-rings

2шт.

Part of Cylinder Repair Kit P/N 84919C2

1шт.

14

NSS

NOT SOLD SEPARAT

O-RING - gland and end cap

2шт.

Part of Cylinder Repair Kit P/N 84919C2

1шт.

15

NSS

NOT SOLD SEPARAT

RING - backup, piston O-ring

1шт.

Part of Cylinder Repair Kit P/N 84919C2

1шт.

16

NSS

NOT SOLD SEPARAT

O-RING - piston

1шт.

Part of Cylinder Repair Kit P/N 84919C2

1шт.

17

NSS

NOT SOLD SEPARAT

SEAL - piston rod

1шт.

Part of Cylinder Repair Kit P/N 84919C2

1шт.

84919C2

GASKET KIT

KIT - cylinder repair, Includes: Ref. 5, 11, and 13-17

1шт.
