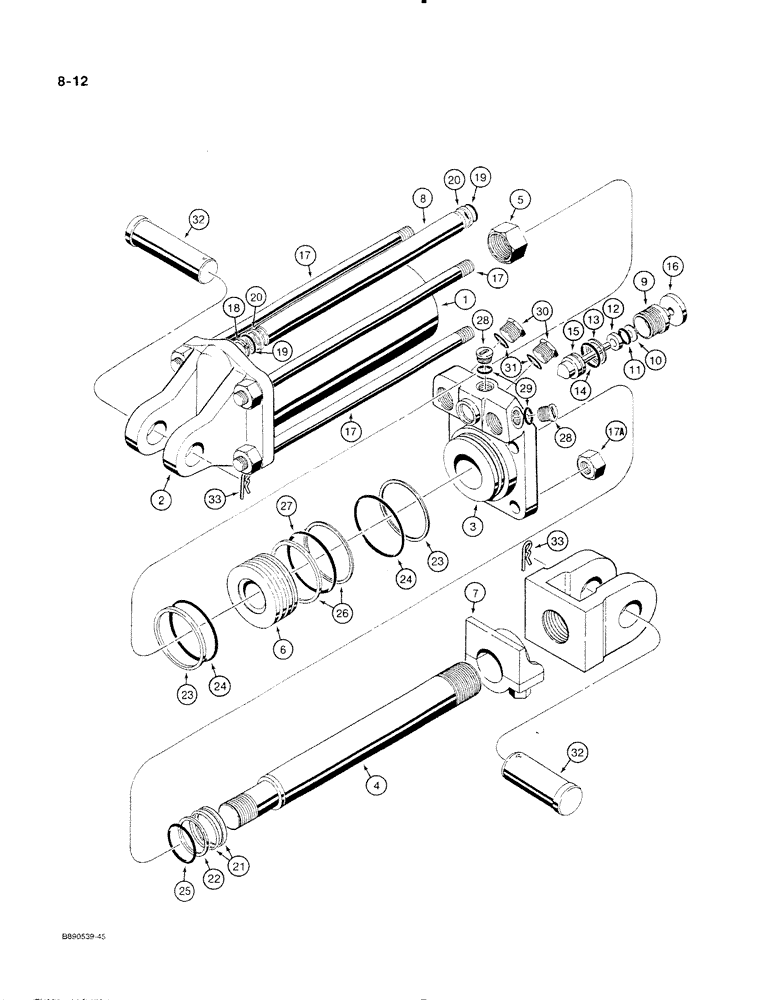

Запчасти Case IH 350 (8-12) - TRANSPORT LIFT CYLINDER -403842R94 (08) - HYDRAULICS

403842R94

CYLINDER

ASSEMBLY - 3-1/2 x 8 inch, transport lift no longer available, for service order 1263474C91 cylinder

1шт.

assembly, see Figure 8-10

1шт.

1

404021R1

TUBE - cylinder

1шт.

2

547662R1

HEAD

CAP - end, cylinder

1шт.

3

404014R2

GLAND - cylinder, replaces 367615R11 gland and 444788 plug

1шт.

4

547661R1

ROD

- piston

1шт.

5

25126R1

LOCK NUT,1 1/8"-12, GC

NUT - hex, self-locking, 1-1/8 inch NF, grade 8

1шт.

6

404019R1

PISTON

- cylinder

1шт.

7

404034R1

CLAMP

COLLAR - stroke limiting

1шт.

181595

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5

- hex, 5/16 NF x 3/4 inch

1шт.

8

404023R1

TUBE

- return, replaces 354834R2 tube

1шт.

9

404024R91

HOUSING

ASSEMBLY - stop limiting valve

1шт.

10

NSS

NOT SOLD SEPARAT

RING - backup, valve O-ring

1шт.

Part of O-Ring and Seal Kit P/N 527324R92

1шт.

11

NSS

NOT SOLD SEPARAT

O-RING - valve

1шт.

Part of O-Ring and Seal Kit P/N 527324R92

1шт.

12

404027R1

RETAINER

- stop limiting valve

1шт.

13

NSS

NOT SOLD SEPARAT

RING - backup, housing O-ring

1шт.

Part of O-Ring and Seal Kit P/N 527324R92

1шт.

14

NSS

NOT SOLD SEPARAT

O-RING - housing

1шт.

Part of O-Ring and Seal Kit P/N 527324R92

1шт.

15

404029R1

LOCK VALVE

VALVE - stop limiting

1шт.

16

361009R1

PLATE

- retaining, stop limiting valve

1шт.

179792

BOLT,Hex, 1/4" - 20 x 9/16"

- hex, 1/4 NC x 9/16 inch

2шт.

17

404022R1

ROD,5/8" - 11 x 14"

BOLT - tie, cylinder

4шт.

17a

25528R1

NUT,5/8"-11, G8

- hex, 5/8 inch NF, grade 8

4шт.

18

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

19

NSS

NOT SOLD SEPARAT

O-RING - return tube

2шт.

Part of O-Ring and Seal Kit P/N 527324R92

1шт.

20

NSS

NOT SOLD SEPARAT

RING - backup

2шт.

Part of O-Ring and Seal Kit P/N 527324R92

1шт.

21

NSS

NOT SOLD SEPARAT

WIPER - piston rod

1шт.

Part of O-Ring and Seal Kit P/N 527324R92

1шт.

22

NSS

NOT SOLD SEPARAT

SEAL - piston rod

1шт.

Part of O-Ring and Seal Kit P/N 527324R92

1шт.

23

NSS

NOT SOLD SEPARAT

RING - backup, end cap and gland O-ring

2шт.

Part of O-Ring and Seal Kit P/N 527324R92

1шт.

24

NSS

NOT SOLD SEPARAT

O-RING - end cap and gland

2шт.

Part of O-Ring and Seal Kit P/N 527324R92

1шт.

25

NSS

NOT SOLD SEPARAT

O-RING - piston rod

1шт.

Part of O-Ring and Seal Kit P/N 527324R92

1шт.

26

NSS

NOT SOLD SEPARAT

RING - backup, piston O-ring

2шт.

Part of O-Ring and Seal Kit P/N 527324R92

1шт.

27

NSS

NOT SOLD SEPARAT

O-RING - piston

1шт.

Part of O-Ring and Seal Kit P/N 527324R92

1шт.

28

404033R1

PLUG

- slotted, end cap

2шт.

29

NSS

NOT SOLD SEPARAT

O-RING - plug

2шт.

Part of O-Ring and Seal Kit P/N 527324R92

1шт.

30

9410360

PLUG

- hex head, end cap

2шт.

31

NSS

NOT SOLD SEPARAT

O-RING - plug

2шт.

Part of O-Ring and Seal Kit P/N 527324R92

1шт.

32

61571C1

PIN

- clevis, cylinder

2шт.

33

520175R1

CLIP

PIN - hair, 3/16 inch diameter

2шт.

527324R92

KIT

- seal and O-ring, Includes: Ref. 10, 11, 13, 14, 19-27, 29 and 31

1шт.
