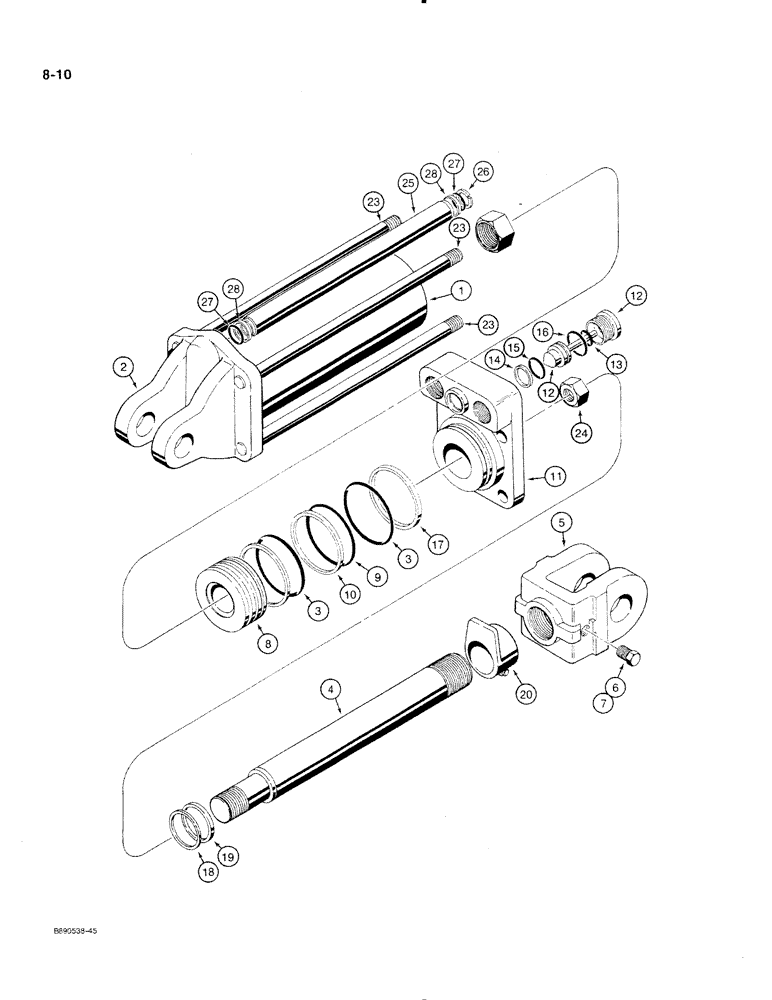

Запчасти Case IH 350 (8-10) - TRANSPORT LIFT CYLINDER -1263474C91 (08) - HYDRAULICS

1263474C91

CYLINDER ASSY.

CYLINDER ASSEMBLY - 3-1/2 x 8 inch, transport lift

1шт.

1

NSS

NOT SOLD SEPARAT

TUBE - cylinder

1шт.

2

145354C1

HEAD

CAP - end, cylinder

1шт.

3

NSS

NOT SOLD SEPARAT

O-RING - end cap and gland

2шт.

Part of O-Ring and Seal Kit P/N 79978C2

1шт.

4

145231C1

PISTON ROD

ROD - piston

1шт.

5

1282366C1

RAM FORK

CLEVIS - piston rod

1шт.

6

25496R1

BOLT,Hex, 3/8" - 16 x 7/8", Gr 8

- hex, 3/8 NC x 7/8 inch

1шт.

7

145453C1

PLUG,Lock, 7.938mm Dia x 3.175mm Thk, Nylon

PAD - clevis, nylon

1шт.

8

145422C1

PISTON

- cylinder

1шт.

9

NSS

NOT SOLD SEPARAT

O-RING - piston

1шт.

Part of O-Ring and Seal Kit P/N 79978C2

1шт.

10

NSS

NOT SOLD SEPARAT

SEAL - piston

1шт.

Part of O-Ring and Seal Kit P/N 79978C2

1шт.

11

1255096C1

END

GLAND - cylinder

1шт.

1260968C91

VALVE

ASSEMBLY - stop limiting

1шт.

12

NSS

NOT SOLD SEPARAT

VALVE - stop limiting

1шт.

13

NSS

NOT SOLD SEPARAT

O-RING - valve, small

1шт.

Part of Valve and Transfer Tube Kit P/N 1272597C91

1шт.

14

NSS

NOT SOLD SEPARAT

RING - backup, O-ring

1шт.

Part of Valve and Transfer Tube Kit P/N 1272597C91

1шт.

15

NSS

NOT SOLD SEPARAT

O-RING - valve, large

1шт.

Part of Valve and Transfer Tube Kit P/N 1272597C91

1шт.

16

NSS

NOT SOLD SEPARAT

O-RING - valve retainer to gland

1шт.

Part of Valve and Transfer Tube Kit P/N 1272597C91

1шт.

17

NSS

NOT SOLD SEPARAT

WASHER - backup

1шт.

Part of O-Ring and Seal Kit P/N 79978C2

1шт.

18

NSS

NOT SOLD SEPARAT

SEAL - piston rod

1шт.

Part of O-Ring and Seal Kit P/N 79978C2

1шт.

19

NSS

NOT SOLD SEPARAT

WIPER - piston rod

1шт.

Part of O-Ring and Seal Kit P/N 79978C2

1шт.

20

224581C3

ARM

STOP - depth, cylinder

1шт.

1263435C91

ADJUSTMENT SCREW

LEVER ASSEMBLY - cylinder adjusting

2шт.

21

NSS

NOT SOLD SEPARAT

LEVER - cylinder adjusting, not shown

1шт.

22

425-145

JAM NUT,Jam, 5/16"-18, G5

- hex jam, 5/16 inch NC, not shown

1шт.

23

145250C1

BOLT,5/8" - 11 x 345mm

- tie, cylinder

4шт.

24

425-1010

NUT,5/8"-11, G5

4шт.

25

371211R2

TUBE,0.573" ID, 0.748" OD, 10.963" Length

- return

1шт.

26

110730

LOCK WASHER

WASHER - lock, 3/8 inch

1шт.

Part of Valve and Transfer Tube Kit P/N 1272597C91

1шт.

27

NSS

NOT SOLD SEPARAT

O-RING - return tube

2шт.

Part of Valve and Transfer Tube Kit P/N 1272597C91

1шт.

28

NSS

NOT SOLD SEPARAT

RING - backup, return tube O-ring

2шт.

Part of Valve and Transfer Tube Kit P/N 1272597C91

1шт.

79978C2

SEAL KIT

KIT - seal and O-ring, Includes: Ref. 3, 9, 10, 17, 18 and 19

1шт.

1272597C91

KIT

- valve and transfer tube, Includes: Ref. 13-16 and 26-28

1шт.
