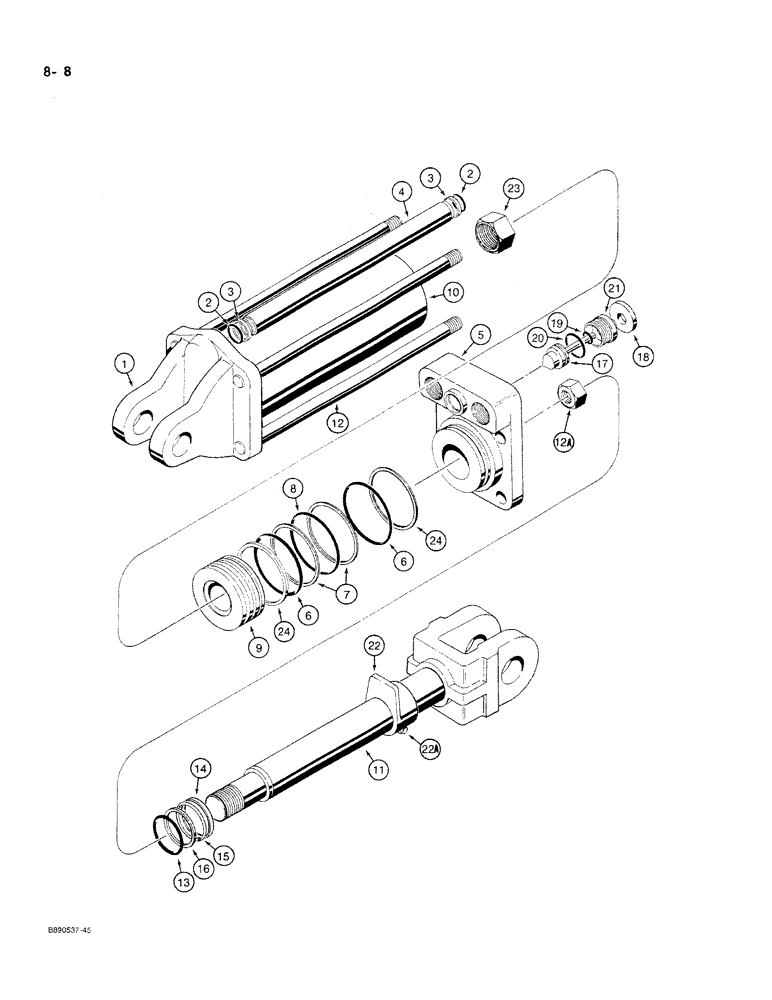

Запчасти Case IH 350 (8-08) - TRANSPORT LIFT CYLINDER -360997R95 (08) - HYDRAULICS

360997R95

CYLINDER

ASSEMBLY - 3-1/2 x 8 inch, transport lift no longer available, for service order 1263474C91 cylinder

1шт.

assembly, see Figure 8-10

1шт.

1

60782C1

HEAD

CAP - end, cylinder

1шт.

2

NSS

NOT SOLD SEPARAT

O-RING - return tube

2шт.

Part of O-Ring and Seal Kit P/N 363138R94

1шт.

3

NSS

NOT SOLD SEPARAT

RING - backup

2шт.

Part of O-Ring and Seal Kit P/N 363138R94

1шт.

4

371211R2

TUBE,0.573" ID, 0.748" OD, 10.963" Length

- return, replaces 354834R2 tube

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

5

60780C91

HEAD

GLAND - cylinder, replaces 367615R11 gland and 444788 plug

1шт.

444688

PLUG

- hex socket pipe, 1/8 inch PT

1шт.

6

NSS

NOT SOLD SEPARAT

O-RING - end cap and gland

2шт.

Part of O-Ring and Seal Kit P/N 363138R94

1шт.

7

NSS

NOT SOLD SEPARAT

RING - backup, piston O-ring

2шт.

Part of O-Ring and Seal Kit P/N 363138R94

1шт.

8

NSS

NOT SOLD SEPARAT

O-RING - piston

1шт.

Part of O-Ring and Seal Kit P/N 363138R94

1шт.

9

361003R1

HEAD

PISTON - cylinder

1шт.

10

354051R1

BARREL,3.5035" ID, .429" OD, 10.26" Length

TUBE - cylinder

1шт.

11

60784C91

ROD

- piston, replaces 361005R13 piston rod by also ordering 61571C1 clevis pin and 520175R1 hair pin

1шт.

12

361004R1

BOLT,Hex, 1/2" - 20 x 13 7/16"

- tie, cylinder

4шт.

12a

25-118

NUT,1/2"-20, G5

- hex, 1/2 inch NF

4шт.

13

NSS

NOT SOLD SEPARAT

O-RING - gland

1шт.

Part of O-Ring and Seal Kit P/N 363138R94

1шт.

14

NSS

NOT SOLD SEPARAT

RETAINER - wiper

1шт.

Part of O-Ring and Seal Kit P/N 363138R94

1шт.

15

NSS

NOT SOLD SEPARAT

WIPER - piston rod

1шт.

Part of O-Ring and Seal Kit P/N 363138R94

1шт.

16

NSS

NOT SOLD SEPARAT

RING - backup, gland O-ring

1шт.

Part of O-Ring and Seal Kit P/N 363138R94

1шт.

17

361006R12

VALVE

- stop limiting

1шт.

18

361009R1

PLATE

- retaining, stop limiting valve

1шт.

179792

BOLT,Hex, 1/4" - 20 x 9/16"

- hex, 1/4 NC x 9/16 inch

2шт.

19

NSS

NOT SOLD SEPARAT

O-RING - valve, small

1шт.

Part of O-Ring and Seal Kit P/N 363138R94

1шт.

20

NSS

NOT SOLD SEPARAT

O-RING - valve, large

1шт.

Part of O-Ring and Seal Kit P/N 363138R94

1шт.

21

361007R11

RETAINER

- stop limiting valve

1шт.

22

375426R91

COLLAR

- stroke limiting

1шт.

22a

393503R1

THUMB SCREW,5/16" - 24 x 5/8"

- thumb

1шт.

23

9412368

NUT

- hex, self-locking, 3/4 inch NF, grade 8

1шт.

24

NSS

NOT SOLD SEPARAT

RING - backup, gland O-ring

1шт.

61571C1

PIN

- clevis, cylinder, replaces 352231R11 and 27267R1 pins

2шт.

520175R1

CLIP

PIN - hair, 3/16 inch diameter, replaces 352369R2 pin, 103373 pin, 354837R1 washer, and 352370R1 spring

2шт.

363138R94

PACKAGE

KIT - seal and O-ring, Includes: Ref. 2, 3, 6-8, 13-16, 19 and 20

1шт.
