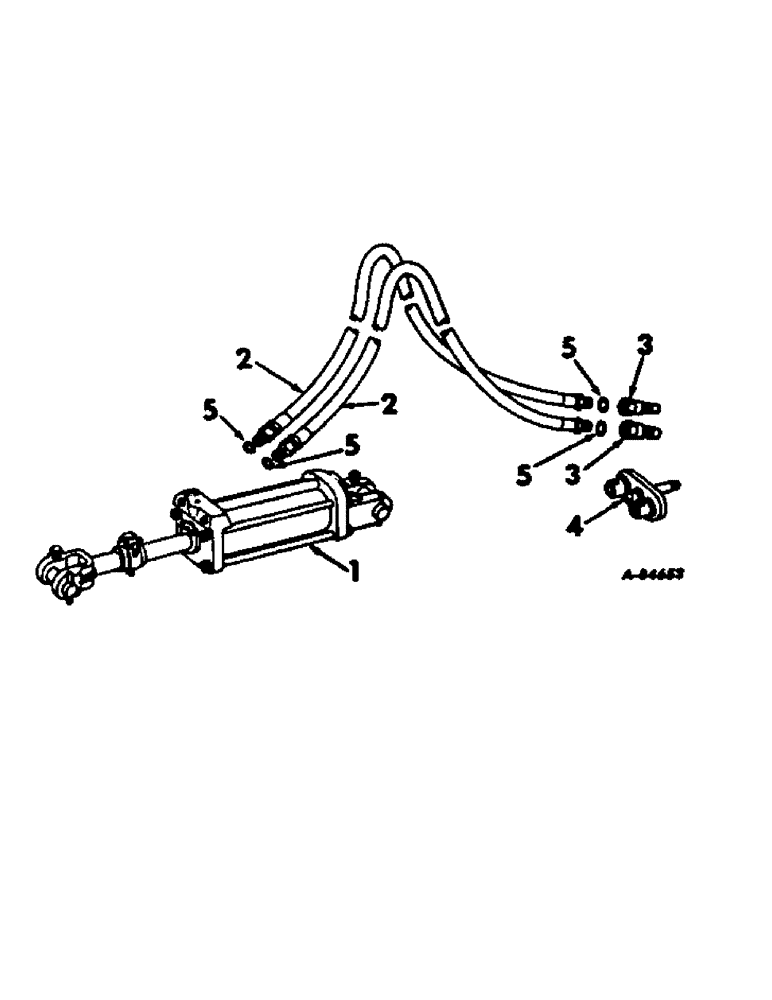

Запчасти Case IH 330 (N-09[A]) - HYDRAULIC CYLINDER AND CONNECTIONS

1

360997R95

CYLINDER

hyd 3-1/2 x / in., unit A, refer to cyl- 1 for components

1шт.

1

371292R95

CYLINDER

hyd 3-1/2 x 8 in., unit B, order cylinder 403842R91, refer to cyl, 1 for components

1шт.

1

403842R94

CYLINDER

hyd 3-1/2 x 8 in., unit B, refer to cyl, 1 for components

1шт.

2

357962R91

HOSE

ASSY, hyd 96 in., 2 for unit A

1шт.

2

372437R91

HOSE

ASSY, hyd 112 in., 2 for unit B

1шт.

3

395149R1

QUICK MALE COUPLING

COUPLING ASSY, self-sealing male, 2 for unit B

1шт.

4

353216R91

COUPLING

ASSY, unit A

1шт.

5

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

3/4 x 15/16 x 3/32, 4 for unit B

1шт.
