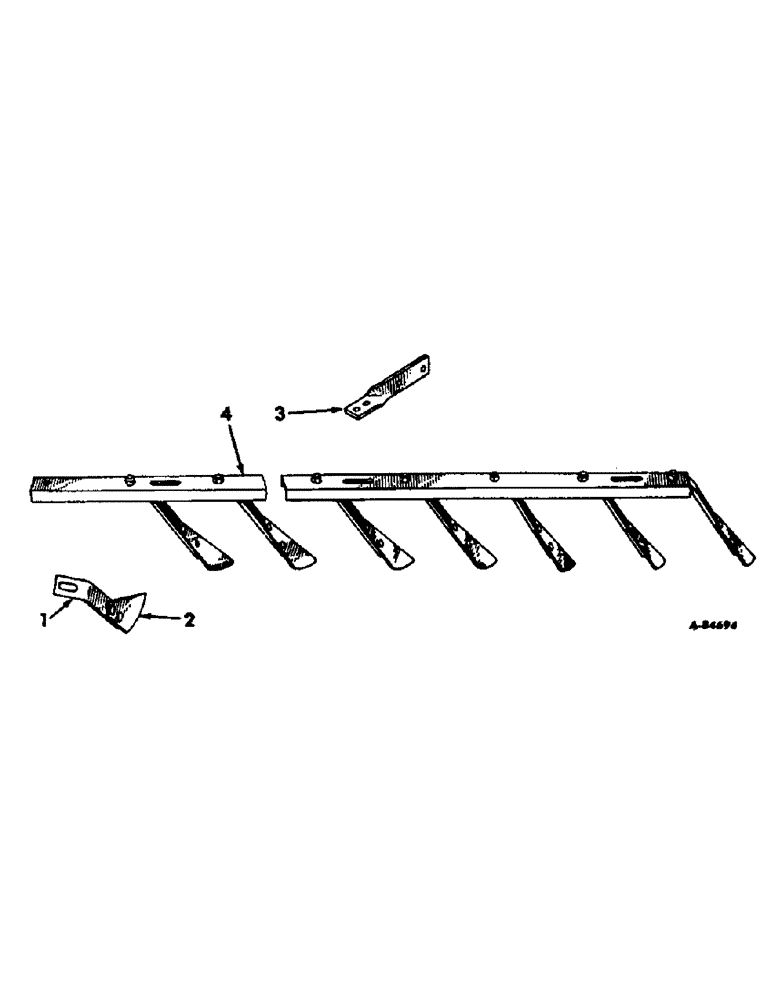

Запчасти Case IH 330 (N-08) - SCRAPERS

1

465060R92

SCRAPER

ASSY, LH

1шт.

1

465061R92

SCRAPER

ASSY, RH, 10 for unit B, 12 for unit A and D, 14 for unit C and F, 16 for units E and H, 18 for unit G, 20 for unit J

1шт.

465567R1

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/2", Gr 5

BOLT, 1/2-13 x 1-1/2 C-Z sq-nk crg

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, , 1 used per scraper assy 1/2"

1шт.

2

465062R1

BLADE

scraper, one per scraper assy

1шт.

106930

RIVET,Tr Hd, 3/8" x 1"

3/8 x 1 truss-hd, 2 per blade

1шт.

3

482073R1

BRACKET

scraper bar support

8шт.

18496R1

BOLT,Hex, 1/2"-13 x 1 1/2", G2

1/2-13 x 1-1/2 C-Z hex-hd mach

16шт.

120384

WASHER,1/2"

LOCK, 1/2"

16шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

16шт.

4

479287R2

ANGLE

scraper LH front, unit A

1шт.

4

479288R2

ANGLE

scraper RH front, unit A

1шт.

4

479297R2

BAR

ANGLE, scraper rear, 2 for unit A

1шт.

4

479295R2

ANGLE, scraper LH front, unit B

1шт.

4

479296R2

ANGLE, scraper RH front, unit B

1шт.

4

479299R2

BAR

ANGLE, scraper LH rear, unit B

1шт.

4

479300R2

BAR

ANGLE, scraper RH rear, unit B

1шт.

4

479289R2

ANGLE

scraper LH front, unit C

1шт.

4

479290R2

ANGLE

scraper RH front, unit C

1шт.

4

479301R2

BAR

ANGLE, scraper rear, 2 for unit C

1шт.

4

479293R2

ANGLE

scraper LH front, unit D

1шт.

4

479294R2

ANGLE, scraper RH front, unit D

1шт.

4

479291R2

ANGLE

scraper LH rear, unit D

1шт.

4

479292R2

ANGLE

scraper RH rear, unit D

1шт.

4

472561R3

BAR

ANGLE, scraper LH front, unit E

1шт.

4

472562R3

BAR

ANGLE, scraper RH front, unit E

1шт.

4

472570R2

BAR

ANGLE, scraper rear, 2 for unit E

1шт.

4

479323R2

ANGLE

scraper LH front, unit F

1шт.

4

479324R2

ANGLE

scraper RH front, unit F

1шт.

4

479304R3

ANGLE

scraper LH rear, unit F

1шт.

4

479305R3

ANGLE, scraper RH rear, unit F

1шт.

4

472563R2

ANGLE, scraper LH front, unit G

1шт.

4

472564R2

ANGLE

scraper RH front, unit G

1шт.

4

472572R2

ANGLE

scraper LH rear, unit G

1шт.

4

472573R2

ANGLE

scraper RH rear, unit G

1шт.

4

479308R2

ANGLE

scraper LH front, unit H

1шт.

4

479309R2

ANGLE

scraper RH front, unit H

1шт.

4

479306R2

ANGLE

scraper LH rear, unit H

1шт.

4

479307R2

ANGLE, scraper RH rear, unit H

1шт.

4

468551R2

ANGLE

scraper LH front, unit J

1шт.

4

468552R2

ANGLE

scraper RH front, unit J

1шт.

4

472574R2

ANGLE

scraper rear, 2 for unit J

1шт.

18573R1

CARRIAGE BOLT,Short Sq Nk, 5/8" - 11 x 1 1/2", Gr 2

BOLT, 5/8-11 x 1-1/2 C-Z sq-nk crg

8шт.

608595R1

NUT

5/8-11 C-Z gripco top lock

8шт.
