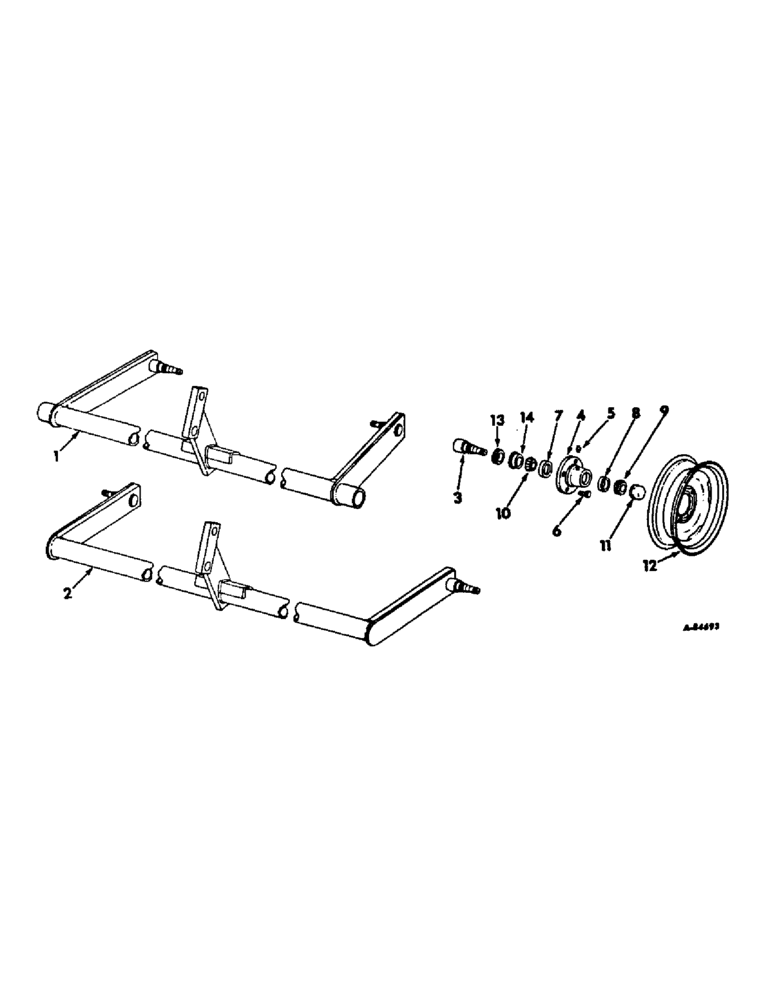

Запчасти Case IH 330 (N-05) - WHEEL AXLE, HUB AND WHEEL

1

479344R91

AXLE

W/NUTS, C-pins & washer assy, wheel, 80 in. wheel axle, units E, F, G, H & J

1шт.

467750R1

WASHER

25/32 x 1-1/2 x 11 ga C-Z

2шт.

87395

COTTER PIN,1/8" OD x 1-1/4" OAL

PIN, SPLIT (COTTER), 1/8" x 1-1/4"

2шт.

69442D

NUT

3/4-16 slt-hex.

2шт.

2

472614R91

AXLE W/NUTS, C-pins & washers assy, wheel, 120 in. wheel axle, 1965 to 1969, unit E, F, G, H & J

1шт.

2

543200R91

AXLE

w/nuts, C-pins and washer assy, wheel, 120 in. wheel axle, 1970 and since, units E, F, G, H and J

1шт.

2

472613R91

AXLE

W/NUTS, C-pins & washer assy, wheel, units A, B, C, & D

1шт.

467750R1

WASHER

25/32 x 1-1/2 x 11 ga C-Z

2шт.

87395

COTTER PIN,1/8" OD x 1-1/4" OAL

PIN, SPLIT (COTTER), 1/8" x 1-1/4"

2шт.

69442D

NUT

3/4-13 slt hex.

2шт.

3

472289R91

SPINDLE

ASSY, w/nuts, cot. pins & washer

1шт.

467750R1

WASHER

25/32 x 1-1/2 x 11 ga C-Z

1шт.

87395

COTTER PIN,1/8" OD x 1-1/4" OAL

PIN, SPLIT (COTTER), 1/8" x 1-1/4"

1шт.

69442D

NUT

3/4-16 slt hex.

1шт.

4

472220R11

HUB

ASSY, w/set screw

1шт.

443804

SCREW, 1/4-28 x 1/4 C-Z hdls slt set

1шт.

5

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING, 1/4-28 str lub

2шт.

6

351079R1

BOLT,Hex Counter Shank, 1/2" - 20 x 23/32"

wheel hub, special

8шт.

7

651817R1

BEARING CUP

BEARING. wheel hub inner cup

2шт.

7

651817R1GV

BEARING CUP

Value, Bearing Cup

2шт.

8

651814

BEARING, wheel hub outer cup

2шт.

9

651815R91

BEARING ASSY,7.508" ID x 17.82" OD x 6"

BEARING ASSY, wheel outer cone

2шт.

9

651815R91GV

BEARING CONE

Value, Cone Bearing

2шт.

10

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

BEARING ASSY, wheel inner cone

2шт.

11

651194R1

CAP

wheel hub

2шт.

12

455169R92

WHEEL

ASSY, 15 x 4-1/2KB, for 6.70-15 tire

2шт.

12

463036R1

WHEEL (STEERING)

WHEEL ASSY, 14 x 5KB, for 8.00, 14 tire

2шт.

13

472221R91

SEAL,39.57mm ID x 58.6mm OD x 7.37mm Thk

OIL SEAL, wheel hub

2шт.

14

472224R1

SLEEVE

oil seal wear

2шт.
