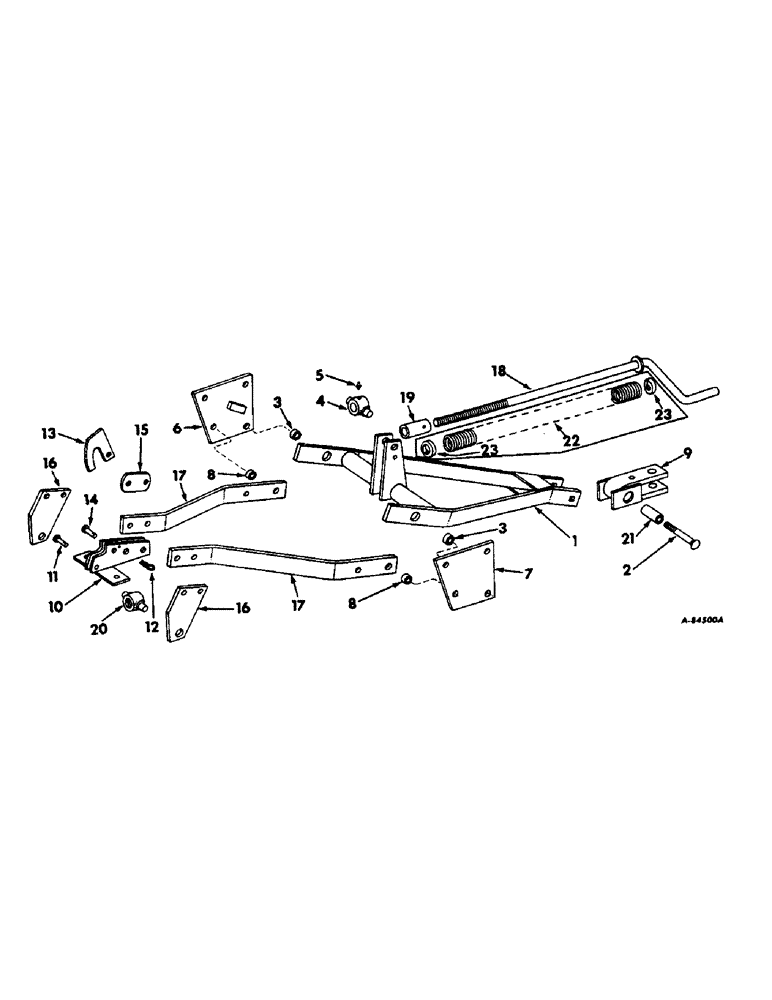

Запчасти Case IH 330 (N-04) - HITCH

1

472542R91

FRAME

ASSY, hitch

1шт.

21161R1

BOLT,Hex, 3/8"-16 x 3 3/4", G2

3/8-16 x 3-3/4 C-Z hex-hd mach

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

2

466715R1

CARRIAGE BOLT,Sq Nk, 3/4" - 10 x 5 1/4", Gr 5

BOLT, hitch, hitch assy to clevis bushing

1шт.

467750R1

WASHER

25/32 x 1-1/2 x 11 ga C-Z

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

1шт.

280954

NUT,3/4"-10, G5

1шт.

3

472547R1

BUSHING

hitch pivot, frame side bar to side plate

2шт.

4

651894R3

PIVOT

TRUNNION

1шт.

5

219-8

LUBE NIPPLE,1/4" - 28 NPTF

FITTING, 1/4-28 std lub

1шт.

6

472548R91

PLATE ASSY, hitch LH

1шт.

7

472549R91

PLATE

ASSY, hitch RH

1шт.

413-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5

SCREW, 5/8-11 x 1-1/2 C-Z hex-hd cap

4шт.

18824R1

BOLT,Hex, 5/8"-11 x 2 1/2", G2

5/8-11 x 2-1/2 C-Z hex-hd mach

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

6шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex.

6шт.

413-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

Hex, 3/4"-10 x 2-1/2", G5

2шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

2шт.

280954

NUT,3/4"-10, G5

2шт.

8

PO11463

SPACER,3/4" Pipe x 11/16"

2шт.

9

468546R11

CLEVIS

ASSY, hitch

1шт.

10

480955R11

SUPPORT

ASSY, cylinder

1шт.

NLS

NO LONGER SERVICED

SCREW, 5/8-11 x 1-1/2 C-Z hex-hd cap

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex.

2шт.

11

21809R1

HEADED PIN,3/8" x 1 5/16"

PIN, 3/8 x 1-5/16 C-Z std-hd

1шт.

137185

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

1шт.

12

517843R1

COTTER PIN

PIN, quick attachable cot.

1шт.

13

653673R2

LATCH

cylinder

1шт.

14

21816R1

HEADED PIN,1/2" x 1 3/8"

PIN, 1/2 x 1-3/8 C-Z std-hd

1шт.

18481R1

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

1шт.

15

480958R1

BLOCK

spacer

1шт.

16

480959R1

SUPPORT

BRACKET, swivel

2шт.

17

480957R1

SUPPORT

BRACE, cyl bracket

2шт.

413-1060

BOLT,Hex, 5/8" - 11 x 3-3/4", Gr 5

SCREW, 5/8-11 x 3-3/4 C-Z hed-hd cap

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex.

2шт.

18

472556R91

CRANK

ASSY, screw

1шт.

19471R1

PIN, SPLIT (COTTER),1/4" x 1 3/4"

1шт.

19

482071R1

SPACER, set

1шт.

21228R1

SCREW, 7/16-14 x 3/4 C-Z sq-hd cup-pt set

2шт.

20

472558R1

PIVOT

TRUNNION

1шт.

21

466713R1

SPACER

BUSHING, hitch clevis

1шт.

22

PO25835

SPRING

cushion, Serial Range: up-1966

1шт.

23

PO2932

RETAINER

BLOCK, spring, Serial Range: up-1966

2шт.
