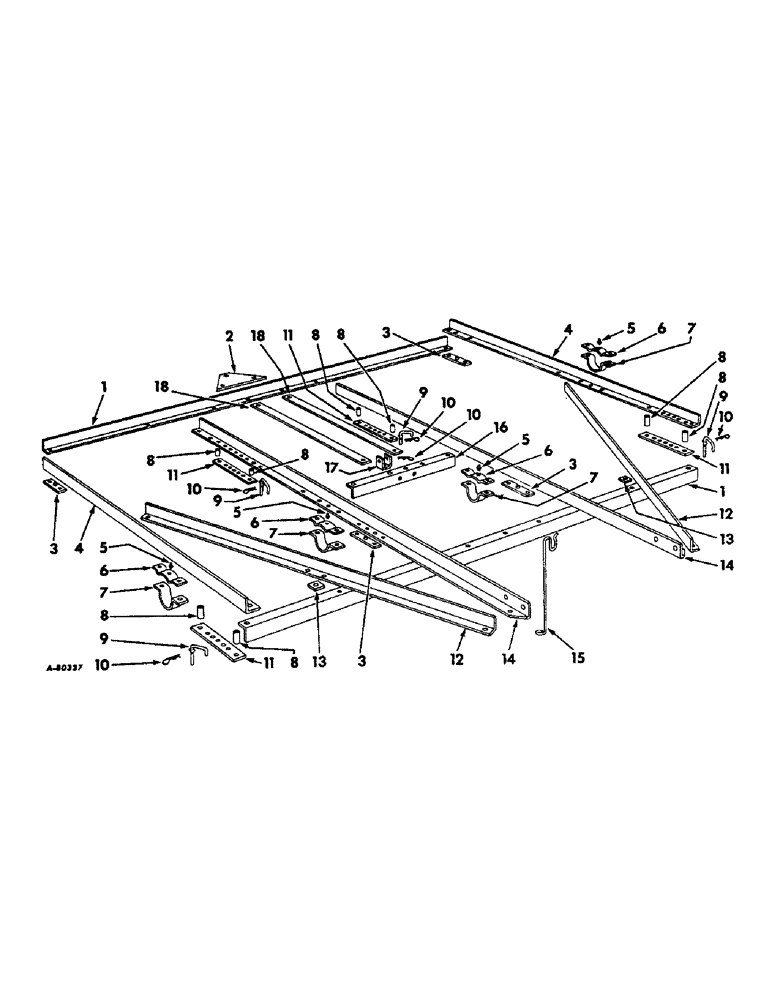

Запчасти Case IH 330 (N-02) - MAIN FRAME & RELATED PARTS

1

472531R1

ANGLE

front & rear frame, 2 for units A, B, C & D

1шт.

1

479325R1

ANGLE, front & rear frame, 2 for units E, F, G, H & J

1шт.

18822R1

BOLT,Hex, 5/8"-11 x 1 1/2", G2, Full Thd

5/8-11 x 1-1/2 C-Z hex-hd mach

8шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex.

8шт.

2

474006R1

PLATE, rear hitch

1шт.

3

472535R1

PLATE

STRAP, gang bar

4шт.

271729

BOLT,Hex, 5/8" - 11 x 3 1/2", Gr 5

SCREW, 5/8-11 x 3-1/2 C-Z hex-hd cap

8шт.

608595R1

NUT

5/8-11 C-Z hex.

8шт.

4

472527R1

ANGLE, outer frame, LH

1шт.

4

472528R1

ANGLE, outer frame, RH, units A, B, C & D

1шт.

4

485991R1

ANGLE, outer frame LH

1шт.

4

485992R1

ANGLE, outer frame RH, for 80 in. wheel axle, units E, F, G, H & J

1шт.

4

485989R1

ANGLE, outer frame LH

1шт.

4

485990R1

ANGLE, outer frame RH, for 120 in. wheel axle, units E, F, G H & J

1шт.

5

128274

LUBE NIPPLE,1/4"-28 NPT x 1.12" lg

FITTING, 1/4-28 str lub

4шт.

6

652815R1

SUPPORT

BEARING, axle top

4шт.

7

652816R1

CLAMP

BEARING, axle bottom

4шт.

18458R1

BOLT,Hex, 5/8"-11 x 1 3/4", G2, Full Thd

5/8-11 x1-3/4 C-Z hex-hd mach

6шт.

18619R1

BOLT,Hex, 5/8" - 11 x 2 1/4", Gr 2

5/8-11 x 2-1/4 C-Z hex-hd mach

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex.

8шт.

8

659932R1

BUSHING

stand

8шт.

9

472541R1

ROD

PIN, angling

4шт.

10

520175R1

CLIP

PIN, quick attachable cot.

5шт.

11

472536R1

BAR

STRAP, gang bar, 4 for units A, B, C & D

1шт.

11

472537R1

STRAP, gang bar, 4 for units E, F, G, H, & J

1шт.

271730

SWASH PLATE,Hex, 5/8" - 11 x 3 3/4", Gr 5

SCREW, 5/8-11 x 3-3/4 C-Z hex-hd cap

8шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex.

8шт.

12

472533R1

ANGLE

diagonal, 2 for units A, B, C, & D

1шт.

12

479316R1

ANGLE, diagonal, 80 in. wheel axle, 2 for units E, F, G, H & J

1шт.

12

472534R1

ANGLE, diagonal, 120 in. wheel axle, 2 for units E, F, G, H & J

1шт.

18822R1

BOLT,Hex, 5/8"-11 x 1 1/2", G2, Full Thd

5/8-11 x 1-1/2 C-Z hex-hd mach

1шт.

18458R1

BOLT,Hex, 5/8"-11 x 1 3/4", G2, Full Thd

5/8-11 x 1-3/4 C-Z hex-hd mach

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex.

2шт.

13

454075R1

DRIVE CHAIN

SPACER

2шт.

14

472523R2

ANGLE

inner frame, LH

1шт.

14

472524R2

ANGLE

inner frame, RH, units A, B, C & D

1шт.

14

479311R2

ANGLE, inner frame LH

1шт.

14

479312R2

ANGLE, inner frame RH, for 80 in. wheel axle, units E, F, G, H & J

1шт.

14

472525R2

ANGLE, inner frame LH

1шт.

14

472526R2

ANGLE, inner frame RH, for 120 in. wheel axle, units E, F, G, H & J

1шт.

15

651793R1

SUPPORT

flexible hose

1шт.

18823R1

BOLT,Hex, 5/8"-11 x 2", G2

5/8-11 x 2 C-Z hex-hd mach

1шт.

464623R1

WASHER

21/32 x 1-1/2 x 11 ga C-Z

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex.

1шт.

16

472538R2

ANGLE, transport

1шт.

18822R1

BOLT,Hex, 5/8"-11 x 1 1/2", G2, Full Thd

5/8-11 x 1-1/2 C-Z hex-hd mach

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex.

2шт.

17

472540R1

CLEVIS

transport

1шт.

18828R1

BOLT,Hex, 5/8"-11 x 4", G5

5/8-11 x 4 C-Z hex-hd mach

1шт.

425-1410

JAM NUT,Jam, 5/8"-11, G5

5/8-11 C-Z hex. jam

2шт.

465867R1

HEADED PIN,1/2" x 2 1/8"

PIN, 1/2 x 2-1/8 C-Z std-hd

1шт.

18

479317R1

BAR, weight support, for 80 in. wheel axle, 2 for units E, F, G, H & J

2шт.

18

472539R1

BAR, weight support, for 120 in. wheel axle, 2 for units A thru J

1шт.

18822R1

BOLT,Hex, 5/8"-11 x 1 1/2", G2, Full Thd

5/8-11 x 1-1/2 C-Z hex-hd mach

2шт.

18823R1

BOLT,Hex, 5/8"-11 x 2", G2

5/8-11 x 2 C-Z hex-hd mach

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex.

4шт.
