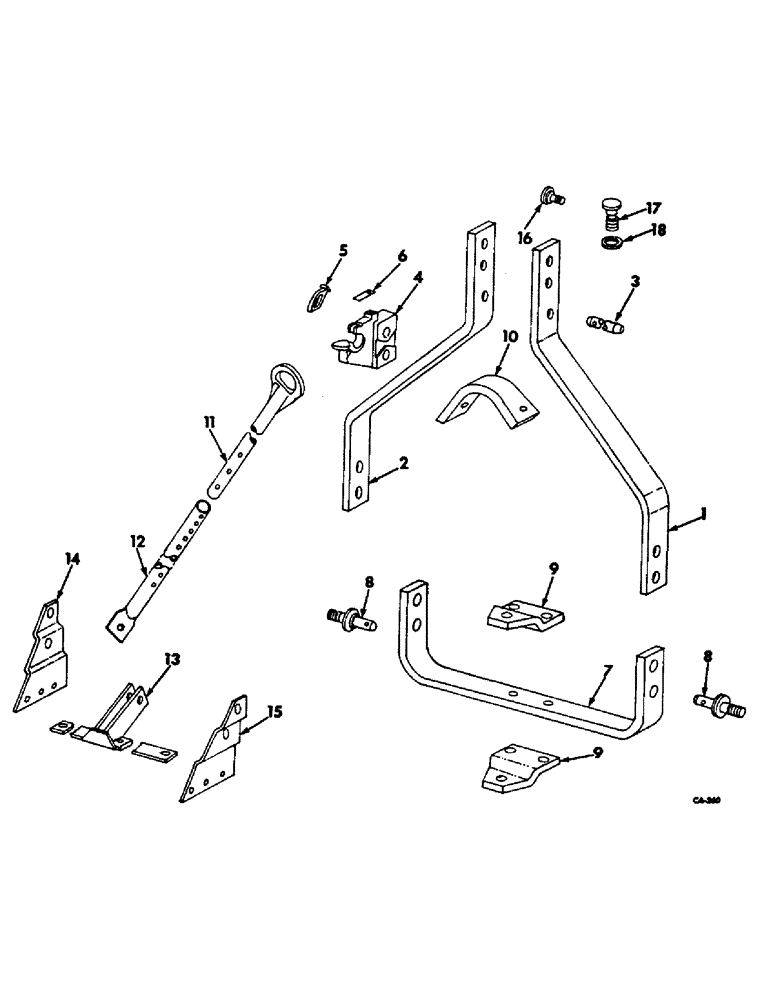

Запчасти Case IH 330 (N-13) - HITCH WEIGHT TRANSFER ATTACHMENT

1

540449R1

SUPPORT, bracket LH, unit A

1шт.

1

540451R1

SUPPORT, bracket LH, unit D

1шт.

1

540447R1

SUPPORT, bracket LH, unit B

1шт.

1

540455R1

SUPPORT, bracket LH, unit C

1шт.

2

540450R1

SUPPORT, bracket RH, unit A

1шт.

2

540452R1

SUPPORT, bracket RH, unit D

1шт.

2

540448R1

SUPPORT, bracket RH, unit B

1шт.

2

540456R1

SUPPORT, bracket RH, unit C

1шт.

3

374132R1

PIN

upper link implement, 1 for unit A and B

1шт.

3

540474R1

PIN, upper link implement, 1 for unit C

1шт.

517758R91

SPLIT PIN/SAFETY PIN

PIN, implement

1шт.

4

528242R1

BLOCK, release

1шт.

5

528241R1

LATCH

1шт.

6

540435R1

BAR, spring

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 x 3/4 znd hex-hd cap

1шт.

469668R1

WASHER

13/32 x 3/4 x 11 ga C-Z

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

413-1480

BOLT,Hex, 7/8" - 9 x 5", Gr 5

SCREW, 7/8-9 x 5 znd hex-hd cap

2шт.

413-1476

BOLT,Hex, 7/8" - 9 x 4-3/4", Gr 5

SCREW, 7/8-9 x 4-3/4 znd hex-hd cap , Course threads

2шт.

NLS

NO LONGER SERVICED

7/8"

2шт.

425-1014

NUT,7/8"-9, G5

NUT, 7/8"-9, G5

2шт.

7

540453R1

DRAWBAR, 1 for units B and C

1шт.

540454R1

DRAWBAR, 1 for units A and D

1шт.

21477R1

SCREW, 1-1/8-12 x 3-1/4 znd hex-hd cap

2шт.

131049

HYD CONNECTOR

1-1/8 C-Z med lock

4шт.

427359

NUT,1 1/8"-12, G5

1-1/8-12 C-Z hex

4шт.

8

540441R1

PIN, link, cat. I, 2 for unit C

1шт.

8

540442R1

PIN

link, cat. II, 2 for units A and B

1шт.

8

540443R1

PIN, link, cat. III, 2 for unit D

1шт.

9

540444R1

PLATE, clevis brace

2шт.

271821

BOLT,Hex, 7/8" - 9 x 3 1/2", Gr 5

SCREW, 7/8-9 x 3-1/2 znd hex-hd cap

2шт.

131047

WASHER,7/8"

7/8"

2шт.

425-1014

NUT,7/8"-9, G5

NUT, 7/8"-9, G5

2шт.

10

540438R1

BRACE, 1 for units A and D

1шт.

271725

SNAP RING,Hex, 5/8" - 11 x 2 1/2", Gr 5

SCREW, 5/8-11 x 2-1/2 C-Z hex-hd cap

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex.

2шт.

11

540422R1

TUBE ASSY

1шт.

22096R1

HEADED PIN,3/4" x 2 1/4"

PIN, 3/4 x 2-1/4 C-Z std-hd

1шт.

520175R1

CLIP

PIN, quick-attachable cot.

1шт.

12

540430R1

TUBE ASSY, support

1шт.

21670R1

HEADED PIN,3/4" x 2 1/4"

PIN, 3/4 x 2-1/4 C-Z std-hd

1шт.

217973

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1-1/4"

1шт.

13

(Not used in this application)

1шт.

14

540439R1

BRACKET, anchor LH

1шт.

15

540440R1

BRACKET, anchor RH

1шт.

16

3044388R1

STOP

LEVER, control stop, 1 for unit C

1шт.

469668R1

WASHER

13/32 x 3/4 x 16 ga C-Z

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

124829

JAM NUT,Hex, 3/8" - 16, Gr 5

1шт.

17

540436R1

STOP, quadrant, 1 for units A and D

1шт.

18

540437R1

WASHER, rubber, 1 for unit A and D

1шт.

614452R1

WASHER

13/32 x 1-1/4 x 11 ga C-Z

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.
