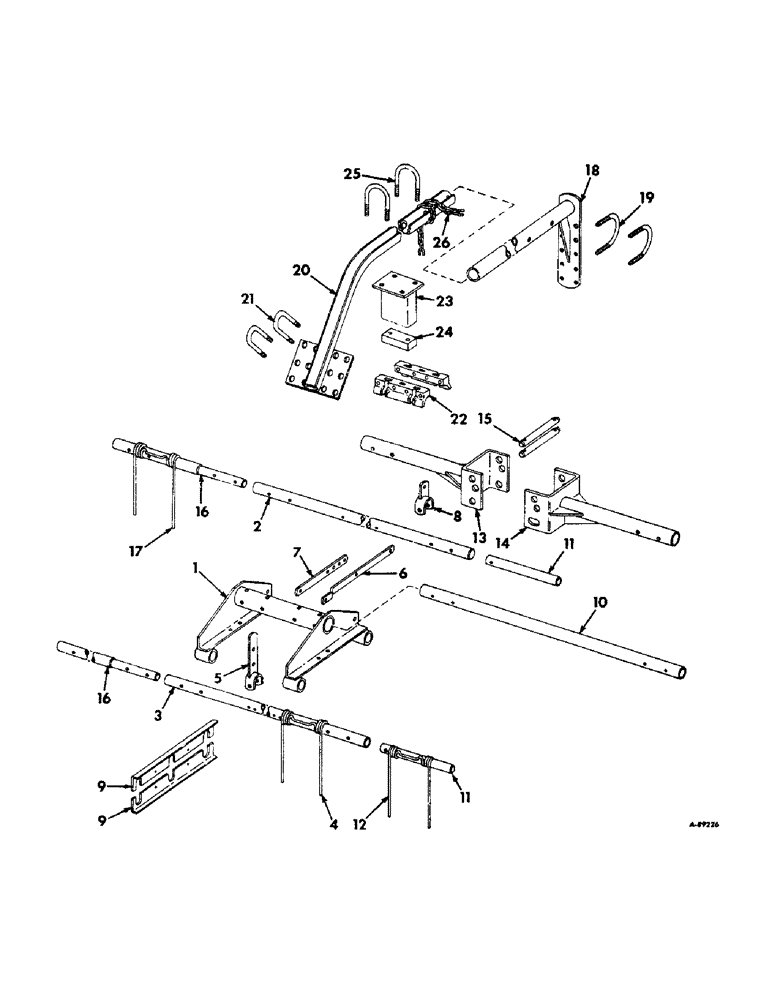

Запчасти Case IH 330 (N-11) - MULCHER ATTACHMENT
№
Артикул
Название
Примечание
Количество
1
485615R2
FRAME
ASSY, 2 ft., 6 in., for units, C & D, 2 for units A & B
1шт.
1
485616R2
FRAME
ASSY, 3 ft., 9 in., for units C & D, 2 for units E, F, G, H & J
1шт.
2
485596R1
TUBE
BAR, 1st tooth, for units C & D, 2 for units A & B
1шт.
2
485599R1
TUBE
BAR, 1st tooth, for units C & D, 2 for units E, F, G, H & J
1шт.
3
485597R1
TUBE
BAR, 3rd tooth, for units C & D, 2 for units A & B
1шт.
3
485600R1
TUBE
BAR, 3rd tooth, for units C & D, 2 for units E, F, G, H & J
1шт.
4
485613R1
TOOTH
16 for units A & B, 18 for units C & D, 20 for units E, F, G, H & J
1шт.
487082R1
BOLT,Hex, 3/8" - 16 x 2 3/4"
shoulder, 2 per tooth
1шт.
472144R1
NUT
3/8-16 two-way lock C-Z, 2 per tooth
1шт.
5
485592R1
ARM
HANDLE ASSY, 1 per frame assy
1шт.
180159
BOLT,Hex, 7/16" - 14 x 2 3/4", Gr 5
SCREW, 7/16-14 x 2-3/4 C-Z hex-hd cap
2шт.
473213R1
LOCK NUT,7/16"-14, GB
NUT, 7/16-14 two-way lock
2шт.
6
485593R1
SUPPORT
REACH, handle, 1 per handle assy
1шт.
7
485594R1
BAR
REACH, adj, 1 per handle assy
1шт.
21685R1
RIVET,Tr Hd, 3/8" x 1"
PIN, 7/16 x 1 zn-pltd std-hd
4шт.
607891R1
WASHER
15/32 x 1 x 16 ga C-Z
3шт.
120169
COTTER PIN,5/32" x 1"
PIN, SPLIT (COTTER), 5/32" x 1"
3шт.
480523R1
HAIR PIN COTTER
quick attachable
1шт.
8
485601R1
ARM
POST, assy, 1 per frame assy
1шт.
9
485598R1
SUPPORT
RAIL, center, 2 per post assy
1шт.
18764R1
HARDWARE,Hex, 5/16"-18 x 3/4", G2
BOLT, 5/16-18 x 3/4 C-Z hex-hd mach
2шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
2шт.
120376
NUT,5/16"-18, G5
2шт.
10
487725R1
TUBE, spanner short, for units A, B, C, E, F & J note A
1шт.
10
487730R1
TUB, spanner long, for units G & H
1шт.
180191
BOLT,Hex, 1/2" - 13 x 3 1/4", Gr 5
SCREW, 1/2 x 3-1/4 C-Z hex-hd cap, 4 per tube
1шт.
474848R1
LOCK NUT,1/2"-13, GB
NUT, 1/2-13 two-way lock C-Z, 4 per tube
1шт.
11
487726R1
TUBE
CONNECTOR, tooth bar, 2 for unit A, B, C, D, E, F & J
1шт.
11
487731R1
CONNECTOR, tooth bar, 2 for units G & H
1шт.
12
485613R1
TOOTH
2 for units G & H
1шт.
487082R1
BOLT,Hex, 3/8" - 16 x 2 3/4"
shoulder
4шт.
472144R1
NUT
3/8-16 two-way lock C-Z
4шт.
13
487729R1
HINGE ASSY, outside, note A, for units E, F & J
1шт.
14
487727R1
SUPPORT
HINGE ASSY, inside, note A, for units E, F & J
1шт.
180191
BOLT,Hex, 1/2" - 13 x 3 1/4", Gr 5
SCREW, 1/2-13 x 3-1/4 C-Z hex-hd cap
4шт.
474848R1
LOCK NUT,1/2"-13, GB
NUT, 1/2-13 two-way lock C-Z
4шт.
15
487728R1
PIN, hinge, note A, 2 for units E, F & J
1шт.
668752R1
WASHER
29/32 x 1-1/4 x 16 ga C-Z
2шт.
19471R1
PIN, SPLIT (COTTER),1/4" x 1 3/4"
2шт.
520177R11
PIN
quick attachable cot.
2шт.
16
487777R1
TUBE
BAR ASSY, tooth extension, 4 for unit J
1шт.
17
485613R1
TOOTH
4 for unit J
1шт.
487082R1
BOLT,Hex, 3/8" - 16 x 2 3/4"
shoulder
8шт.
472144R1
NUT
3/8-16 two-way lock C-Z
8шт.
18
487716R1
ARM ASSY, mounting
2шт.
20299R1
BOLT, 5/8-11 x 3-3/4 C-Z hex-hd mach
4шт.
478684R1
NUT, 5/8-11 two-way lock
4шт.
19
487717R1
BOLT, arm mounting U
4шт.
20
487718R1
ARM ASSY, lower carrying
2шт.
21
487719R1
BOLT, arm lower carrying U
8шт.
120384
WASHER,1/2"
LOCK, 1/2"
16шт.
120378
NUT,Hex, 1/2" - 13, Gr 5
NUT, 1/2"-13, G5
16шт.
22
487720R1
CLAMP
4шт.
18498R1
BOLT,Hex, 1/2" - 13 x 3 1/2", Gr 2
1/2-13 x 3-1/2 C-Z hex-hd mach
8шт.
120384
WASHER,1/2"
LOCK, 1/2"
8шт.
120378
NUT,Hex, 1/2" - 13, Gr 5
NUT, 1/2"-13, G5
8шт.
23
487721R1
BUMPER ASSY
2шт.
24
487722R1
PAD, rubber
2шт.
18675R1
BOLT,Short NK, 5/16"-18 x 1 3/4", G2
5/16-18 x 1-3/4 C-Z sq-nk crg
4шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
4шт.
120376
NUT,5/16"-18, G5
4шт.
25
487753R1
BOLT, U
4шт.
120384
WASHER,1/2"
LOCK, 1/2"
8шт.
120378
NUT,Hex, 1/2" - 13, Gr 5
NUT, 1/2"-13, G5
8шт.
26
487754R1
CHAIN, 175 links
1шт.
26
487723R1
CHAIN, 40 links
1шт.
18494R1
BOLT,Hex, 3/8" - 16 x 1", Gr 2
3/8-16 x 1-1/2 C-Z hex-hd mach
4шт.
178374R1
WASHER
17/32 x 1-1/4 x 11 ga C-Z
4шт.
472144R1
NUT
3/8-16 two-way lock C-Z
4шт.
Выбрано товаров: 73
