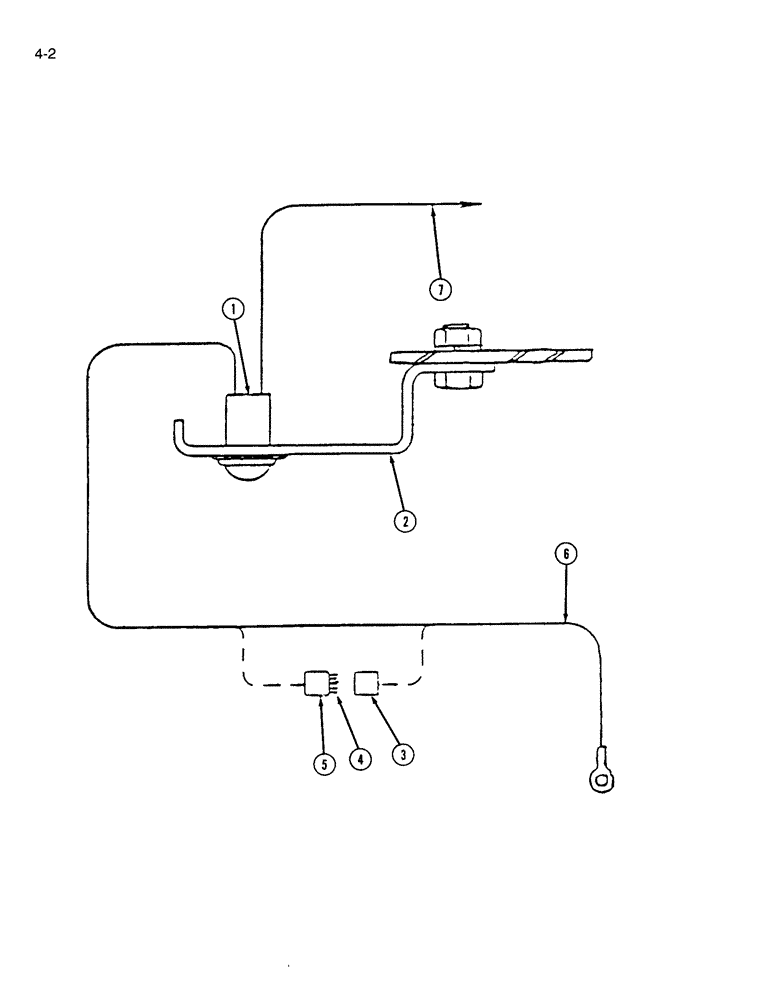

Запчасти Case IH 310 (4-02) - FEED SHAFT ROTATION INDICATOR (04) - ELECTRICAL SYSTEMS

1

676922R91

LAMP

ASSEMBLY - indicator

1шт.

2

816788C1

PANEL

- indicator lamp

1шт.

816848C1

PLUG

- panel filler

5шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

2шт.

425-106

NUT,3/8"-16, Cl 5

2шт.

49211038

WASHER - lock, 3/8 inch

2шт.

21403R1

WASHER

- flat, 13/32 x 1 x 7/64 inch

2шт.

3

405002C1

MULTIPOLE CONNECTOR,Male, 7 Pin

CONNECTOR - wire, for quick disconnect

1шт.

4

892136C1

ELEC CONNECTOR,Female

CONNECTOR - wire, for quick disconnect

1шт.

5

188395R1

WIRE CONNECTOR,Male

CONNECTOR - wire, for quick disconnect

1шт.

6

WIRE - 18 GA contact

1шт.

7

WIRE - 18 GA contact

1шт.
