Запчасти Case IH 310 (9-118) - MULCHER, 1981 SEASON AND AFTER (09) - CHASSIS/ATTACHMENTS

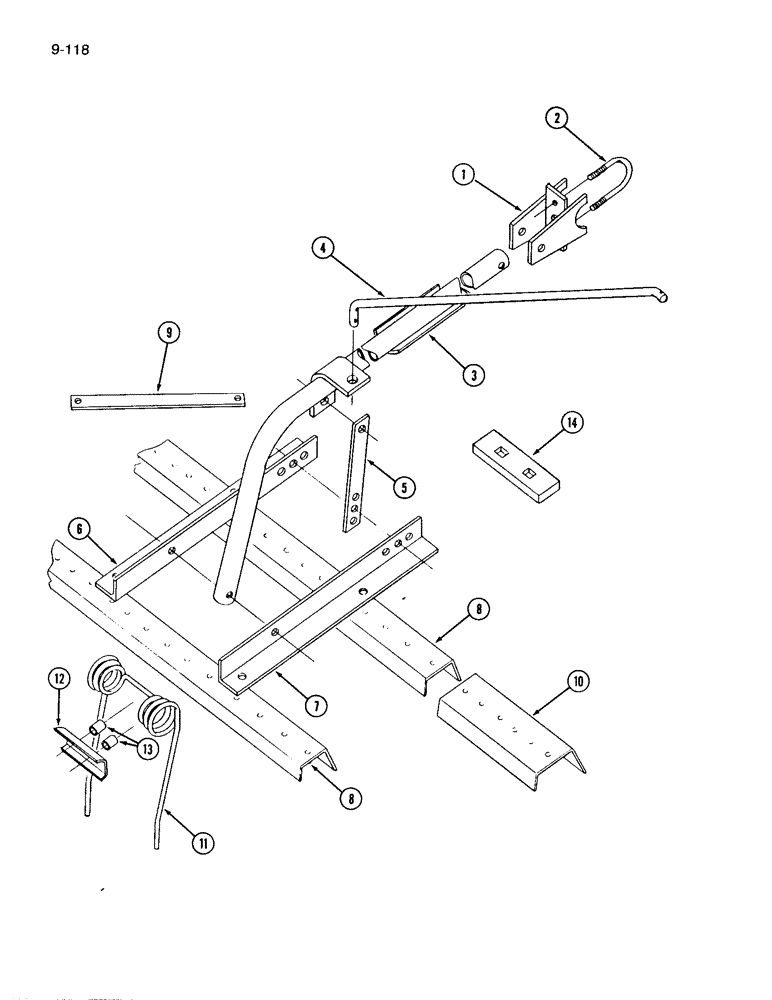

Схема запчастей Case IH 310 - (9-118) - MULCHER, 1981 SEASON AND AFTER (09) - CHASSIS/ATTACHMENTS
13
4
7
1
2
8
14
12
3
6
9
8
10
11
5

Артикул

Название

Примечание

Количество

1

814935C1

SUPPORT

ASSEMBLY - carrier arm, (2 used on 12 foot)

4шт.

2

814881C1

BOLT,3/8" - 16 x 3 1/2"

U-BOLT - support, (2 used on 12 foot)

4шт.

425-106

NUT,3/8"-16, Cl 5

(4 used on 12 foot) 3/8"-16, G5

8шт.

492-11038

LOCK WASHER,3/8"

(4 used on 12 foot) 3/8"

8шт.

3

814917C1

ARM

ASSEMBLY - carrier, (2 used on 12 foot)

4шт.

23173R1

CLEVIS PIN

PIN - clevis, 1/2 x 2-3/4 inch, (4 used on 12 foot)

8шт.

432-124

PIN - cotter, 3/16 x 1-1/2 inch, (4 usedon 12 foot)

8шт.

4

814921C1

ROD

- stabliser, (1 used on 12 foot)

2шт.

21782R1

WASHER

- flat, 21/32 x 1-1/2 x 3/64 inch

4шт.

432-1224

COTTER PIN,3/16" x 1-1/2"

(2 used on 12 foot) 3/16" x 1 1/2"

4шт.

5

814925C1

BAR

- mulcher front support, (2 used on 12 foot)

4шт.

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch, (2 used on 12 foot)

4шт.

425-106

NUT,3/8"-16, Cl 5

(2 used on 12 foot) 3/8"-16, G5

4шт.

492-11038

LOCK WASHER,3/8"

(2 used on 12 foot) 3/8"

4шт.

23173R1

CLEVIS PIN

PIN - clevis, 1/2 x 2-3/4 inch, (2 used on 12 foot)

4шт.

432-1216

COTTER PIN,3/16" x 1"

(2 used on 12 foot) 3/16" x 1"

4шт.

6

814926C1

ANGLE

- mulcher channel support, left

1шт.

7

814927C1

ANGLE

- mulcher channel support, right, (2 used on 12 foot)

4шт.

8

814813C2

CHANNEL

- 3 tooth mulcher, (16 foot)

4шт.

8

814815C2

CHANNEL

- 5 tooth mulcher, (16 foot)

4шт.

8

814835C2

CHANNEL

- 6 tooth mulcher, (12 foot)

4шт.

180121

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

- hex, 3/8 NC x 7/8 inch

1шт.

425-106

NUT,3/8"-16, Cl 5

1шт.

492-11038

LOCK WASHER,3/8"

1шт.

9

811047C1

BAR

- channel stiffener, (4 used on 12 foot)

6шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch, (4 used on 12 foot)

6шт.

425-106

NUT,3/8"-16, Cl 5

(4 used on 12 foot) 3/8"-16, G5

6шт.

492-11038

LOCK WASHER,3/8"

(4 used on 12 foot) 3/8"

6шт.

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch), (4 used on 12 foot) 3/8"

6шт.

10

814816C1

CHANNEL

- mulcher connecting, (2 used on 12 foot)

4шт.

180121

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

- hex, 3/8 NC x 7/8 inch, (4 used on 12 foot)

8шт.

425-106

NUT,3/8"-16, Cl 5

(4 used on 12 foot) 3/8"-16, G5

8шт.

492-11038

LOCK WASHER,3/8"

(4 used on 12 foot) 3/8"

8шт.

11

814800C1

TOOTH

- mulcher, spring, (24 used on 12 foot)

32шт.

12

814811C1

CLAMP

- spring tooth, (24 used on 12 foot)

32шт.

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

(48 used on 12 foot) Hex, 3/8"-16 x 1 3/4", G5

64шт.

425-106

NUT,3/8"-16, Cl 5

(48 used on 12 foot) 3/8"-16, G5

64шт.

492-11038

LOCK WASHER,3/8"

(48 used on 12 foot) 3/8"

64шт.

13

814812C1

SPACER

- spring tooth, (48 used on 12 foot)

64шт.

14

810918C1

BAR

- arm, wear, (2 used on 12 foot)

4шт.

433-840

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 2 1/2", Gr 5

BOLT - round head square neck, 1/2 NC x 2-1/2 inch, (4 used on 12 foot)

8шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex (4 used on 12 foot) 1/2"-13, G5

8шт.

21375R1

WASHER

- flat, 17/32 x 1-1/4 x 5/32 inch, (6 used on 12 foot)

12шт.

Выбрано товаров: 43
