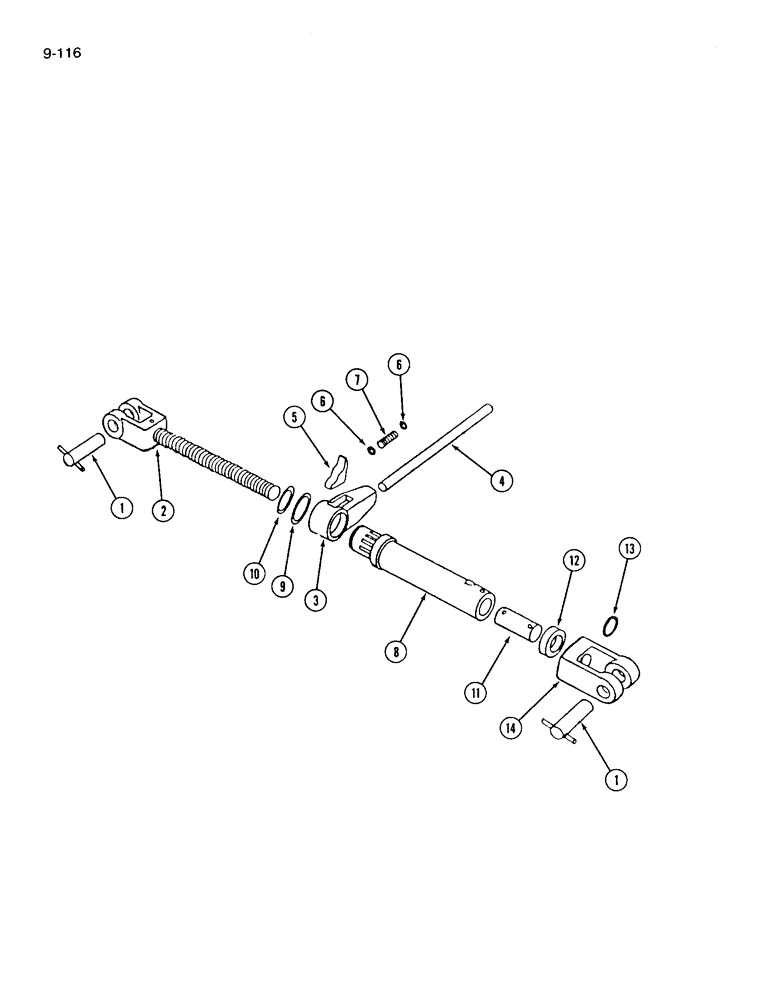

Запчасти Case IH 310 (9-116) - HAND LIFT, PRIOR TO JULY 1978 (09) - CHASSIS/ATTACHMENTS

1

591104R1

PIN

- locking

2шт.

443186

GROOVED PIN,3/8" x 2 3/4", Type E

PIN - roll, 3/8 x 2-3/4 inch

2шт.

591107R1

COTTER PIN

- hair

2шт.

2

591117R91

CAPSCREW

ROD ASSEMBLY - tension, hand lift

1шт.

616387R1

PIN,3/8" x 2", Coiled

1шт.

3

591109R1

SUPPORT

LEVER - ratchet, hand lift control

1шт.

591101R1

PIN

- stop

1шт.

4

591103R1

ROD

- hand lift control

1шт.

591225R1

PIN,5/32" x 1 1/4", Coiled

1шт.

5

591108R1

PAWL

DOG - ratchet

1шт.

591260R1

Pin, 1/4" x 1 7/8", Coiled 1/4" x 1 7/8", Coiled

1шт.

591102R1

PIN

- ratchet arm rod

1шт.

364577R1

PIN,5/32" x 3/4", Coiled

PiIN, 5/32" x 3/4", Coiled

1шт.

6

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

2шт.

7

M296

SPRING

- ratchet

1шт.

8

591112R1

TUBE,1.437" ID, 2.5" OD, 12.625" Length

- lift adjusting

1шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg

1шт.

221-849

PLUG,Hex Soc, 1/8"-27

- square head, 1/8 inch NPT

1шт.

9

22811R1

WASHER

- flat, 2-1/32 x 2-3/4 x 1/16 inch

1шт.

10

591116R1

SNAP RING,#200, 1.909", Ext Spiral

RING - adjusting tube

1шт.

11

591105R1

ANCHOR

PIN - adjusting screw anchor

1шт.

616387R1

PIN,3/8" x 2", Coiled

1шт.

12

591474R1

COLLAR

- adjusting tube pin

1шт.

617944R1

PIN,3/8" x 1 3/4", Coiled

1шт.

13

50738V

THRUST BEARING

- thrust, adjusting tube pin

1шт.

14

591110R1

YOKE

- adjusting

1шт.
