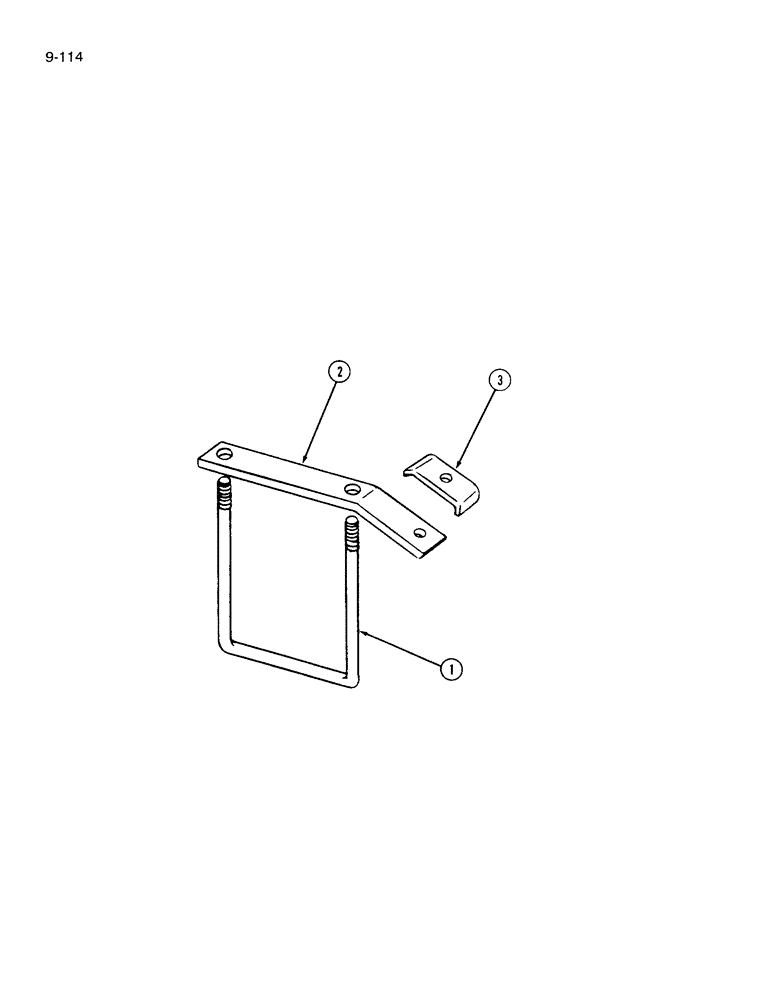

Запчасти Case IH 310 (9-114) - HYDRAULIC HOSE SUPPORT, FOR USE ON SINGLE, DUPLEX OR TRIPLEX, HYDRAULIC TUBE SUPPORT (09) - CHASSIS/ATTACHMENTS

651793R2

SUPPORT

ROD - hose support (1 used on single, 3 used on duplex and 5 used on triplex)

1шт.

113-626

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

1шт.

425-1010

NUT,5/8"-11, G5

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

464623R1

WASHER

- flat, 21/32 x 1-1/2 x 3/32 inch

1шт.

1

596905R1

BOLT,U, 5/8" - 11 x 9.63"

U BOLT - tube support

1шт.

425-1010

NUT,5/8"-11, G5

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

2

597137R1

BAR

SUPPORT - hydraulic connecting tube

1шт.

113-122

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

(Used on first machine of duplex and first and second machine of triplex) Hex, 5/16"-18 x 1 1/2", G5

1шт.

113-111

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

(Used on first machine of triplex) Hex, 5/16"-18 x 2 1/2", G5

1шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

1шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

3

614323R2

CLAMP

- hydraulic connecting tube (1 per support on first machine fo duplex and second machine of triplex) (3 per support on first machine fo triplex)

1шт.

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- hex, 5/16 NC x 1-1/4 inch (Use on first machine of duplex and second machine of triplex)

1шт.

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

(Use on first machine of triplex) Hex, 5/16"-18 x 2", G5

1шт.

425-103

NUT - hex, 5/16 inch NC

1шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.
