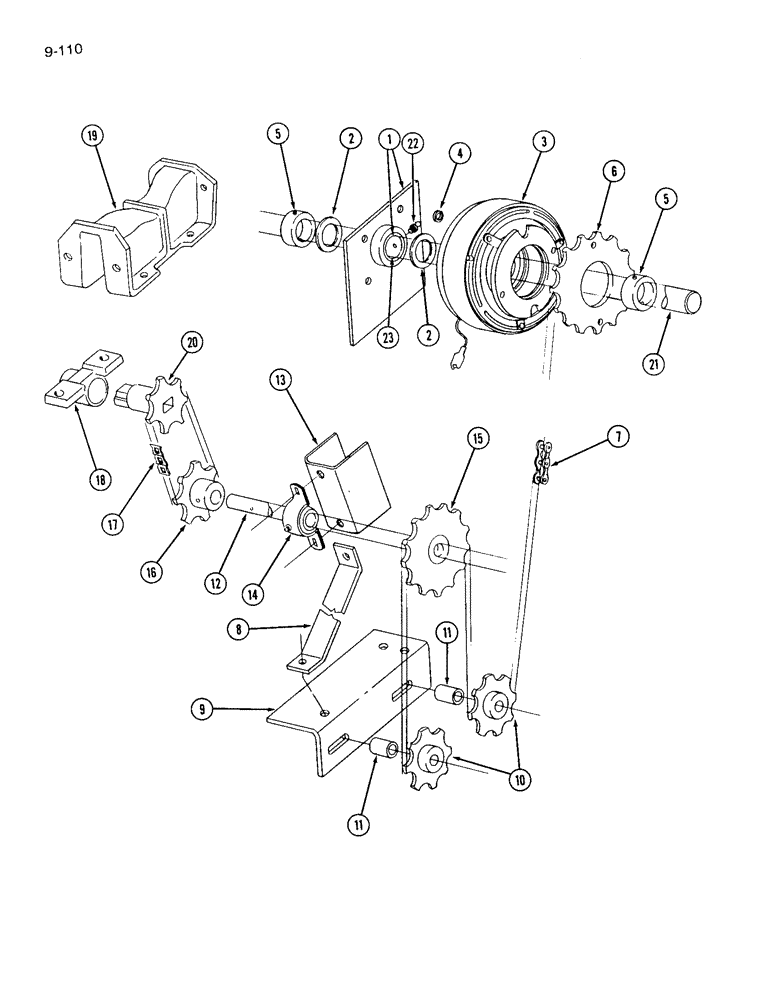

Запчасти Case IH 310 (9-110) - AVADEX DRIVE, 1981 SEASON AND AFTER (09) - CHASSIS/ATTACHMENTS

1

814988C1

SUPPORT

- clutch, with bushing

1шт.

2

609836R1

WASHER

- flat, 1-1/32 x 1-3/4 x 3/64 inch

2шт.

3

814979C91

CLUTCH

ASSEMBLY, Avadex drive

1шт.

463-1108

SCREW,Hex Hd, #10-24 x 1/2"

- machine, hex, No. 10 NC x 1/2 inch

5шт.

225-14110

NUT,#10-24

Machine #10-24

5шт.

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

5шт.

452779R1

KEY,1/4" Sq x 3/4", Par

- square parallel, 1/4 x 3/4 inch

1шт.

4

27616R1

WASHER,.281" x 5/8" x .075", HDN

- hardened, 0.281 x 0.625 x 0.065 inch

4шт.

5

455102R21

COLLAR

- locking, bearing, (with set screw)

2шт.

6

814962C1

SPROCKET ASSY.

SPROCKET - 28 tooth

1шт.

413-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

2шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

7

NSS

NOT SOLD SEPARAT

CHAIN - countershaft drive (Use 57 links from a 10 foot roll 569088R91 and one connecting link 457113R91)

1шт.

8

814970C1

BRACE

- support angle

1шт.

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

2шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

9

814972C1

ANGLE

- idler support

1шт.

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

2шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

10

819458C1

DRIVE SPROCKET

SPROCKET - chain tightener, 8 tooth

2шт.

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

- hex, 3/8"-16 NC x 1-3/4", grade 5

2шт.

425-106

NUT,3/8"-16, Cl 5

2шт.

492-11038

LOCK WASHER,3/8"

2шт.

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

8шт.

11

814985C1

SPACER,5/8" Tube x 13/16"

- tube, 5/8 inch x 21 mm

2шт.

12

814964C1

ROD

- countershaft, (12 foot)

1шт.

12

814965C1

ROD

- countershaft, (16 foot)

1шт.

13

814971C1

CHANNEL

- bearing support

2шт.

14

814966C91

HOUSING ASSY.

BEARING - countershaft rod, (5 used on 12 foot)

4шт.

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch, (6 used on 12 foot)

4шт.

113-177

BOLT,Hex, 5/16" - 18 x 3", Gr 5

4шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC, (10 used on 12 foot)

8шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, (10 used on 12 foot) 5/16"

8шт.

15

814959C1

SPROCKET ASSY.

SPROCKET ASSEMBLY - driven, 28 tooth

1шт.

483-1388

SET SCREW,Hex Soc, 3/8"-16 x 1/2"

SCREW - set, headless hex socket, 3/8 NC x 1/2 inch

1шт.

16

814963C1

SPROCKET ASSY.

SPROCKET - Avadex drive, 8 tooth

2шт.

191953

SCREW,Hdls Hex Skt, 3/8" - 16 x 5/16", Cup Pt

- set, headless hex socket, 3/8 NC x 5/16 inch

2шт.

464623R1

WASHER

- flat, 21/32 x 1-1/2 x 3/32 inch

4шт.

17

28378R1

CHAIN - No. 25, 22 links

2шт.

18

816533C1

BRACKET

BEARING - sprocket

2шт.

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

4шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

4шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

19

816532C1

GUARD

- drive chain

2шт.

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

8шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

8шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

19

816532C1

GUARD

- drive chain

2шт.

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

8шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

8шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

20

NA1475

DRIVE SPROCKET

SPROCKET - Avadex, driven, 7 tooth

2шт.

432-1216

COTTER PIN,3/16" x 1"

2шт.

21

ROD - main drive, (Refer to main drive shaft, See Page 9-91)

1шт.

22

219-16

LUBE NIPPLE,5/16" NPTF

FITTING - lube, 5/16 inch, straight

1шт.

23

676815R1

BUSHING

- drive shaft

1шт.
