Запчасти Case IH 310 (9-108) - AVADEX DRIVE, PRIOR TO 1981 SEASON (09) - CHASSIS/ATTACHMENTS

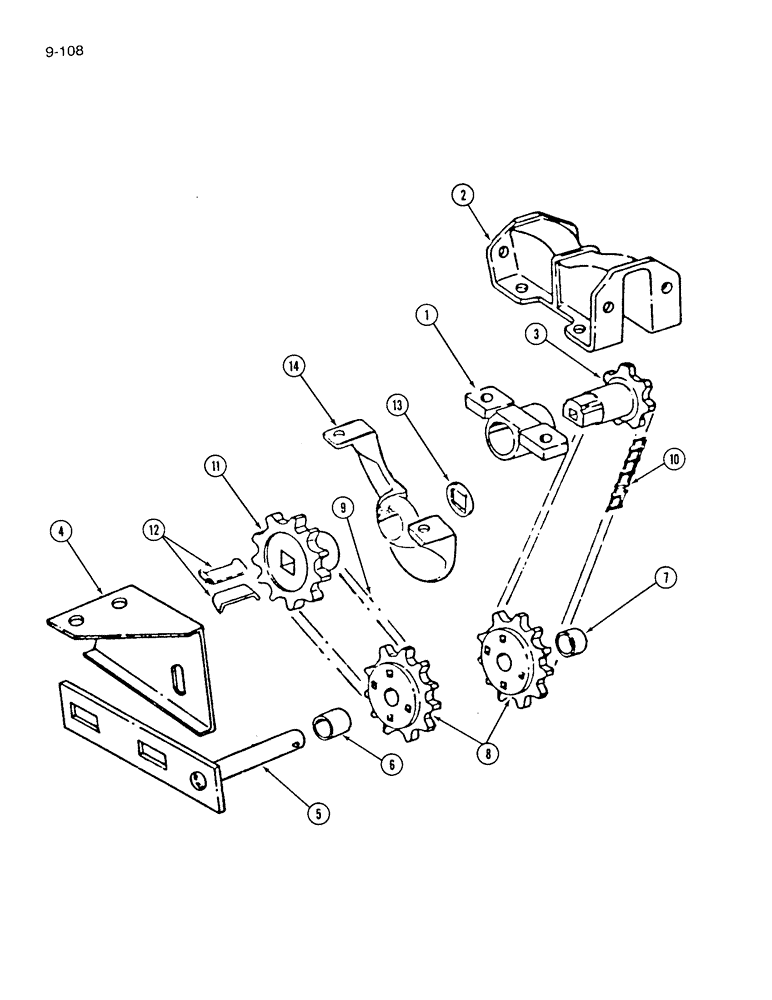

Схема запчастей Case IH 310 - (9-108) - AVADEX DRIVE, PRIOR TO 1981 SEASON (09) - CHASSIS/ATTACHMENTS
8
6
9
3
14
7
11
10
12
4
2
13
1
5

Артикул

Название

Примечание

Количество

1

816533C1

BRACKET

BEARING - driven sprocket

2шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

- hex, 5/16 NC x 1 inch

4шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

4шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

2

816532C1

GUARD

- drive chain

2шт.

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

8шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

8шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

3

NA1475

DRIVE SPROCKET

SPROCKET - Avadex, driven, 7 tooth

2шт.

432-1216

COTTER PIN,3/16" x 1"

2шт.

4

815638C1

BRACKET

SUPPORT - chain tightener bracket

2шт.

180121

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

- hex, 3/8 NC x 7/8 inch

4шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

4шт.

425-106

NUT,3/8"-16, Cl 5

8шт.

492-11038

LOCK WASHER,3/8"

8шт.

5

816340C2

BRACKET

ASSEMBLY - drive chain tightener

2шт.

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

BOLT - round head square neck, 3/8 NC x 1 inch

2шт.

434-620

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 1/4", G5, Full Thd

2шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

492-11038

LOCK WASHER,3/8"

4шт.

21403R1

WASHER

- flat, 13/32 x 1 x 7/64 inch

2шт.

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

2шт.

6

PO15237

SPACER

- tightener sprocket inner

2шт.

7

590750R1

SPACER

- tightener sprocket outer

2шт.

8

NSS

NOT SOLD SEPARAT

SPROCKET ASSEMBLY - chain tightener, 10 tooth, cast (Order one 819949C1, sprocket and one 816340C2, bracket)

4шт.

8

819949C1

DRIVE SPROCKET

SPROCKET - chain tightener

4шт.

433-432

CARRIAGE BOLT,Sq Nk, 1/4" - 20 x 2", Gr 5

BOLT - round head square neck, 1/4 NC x 2 inch

4шт.

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

4шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

9

NSS

NOT SOLD SEPARAT

CHAIN ASSEMBLY - Avadex, drive (Use 26 links of No. 25 steel chain from a 10 foot roll CS25)

2шт.

10

NSS

NOT SOLD SEPARAT

CHAIN ASSEMBLY - Avadex, driven (Use 45 links of No. 25 steel chain from a 10 foot roll CS25)

2шт.

11

815324C1

DRIVE SPROCKET

SPROCKET - Avadex drive, 10 tooth

2шт.

12

815803C1

CLIP

- sprocket retaining

4шт.

13

N11791

WASHER

- drive sprocket

2шт.

14

815499C2

HANGER

- Avadex drive sprocket

2шт.

180078

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

- hex, 5/16 NC x 7/8 inch

4шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

4шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

Выбрано товаров: 38
