Запчасти Case IH 310 (9-104) - AVADEX HOPPER (09) - CHASSIS/ATTACHMENTS

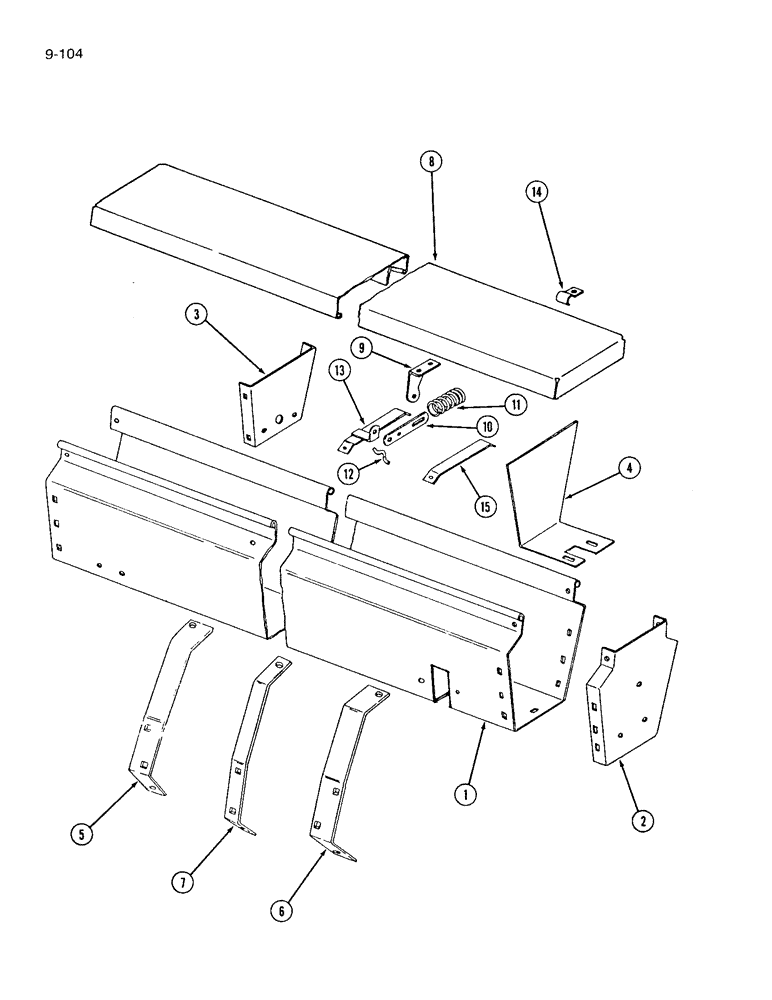

Схема запчастей Case IH 310 - (9-104) - AVADEX HOPPER (09) - CHASSIS/ATTACHMENTS
11
2
15
10
4
8
3
7
12
14
6
1
13
5
9

Артикул

Название

Примечание

Количество

1

816858C2

HOPPER

- 12 foot Avadex

1шт.

1

815589C3

HOPPER

- 16 foot Avadex

2шт.

113-101

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

(16 foot) Hex, 5/16"-18 x 1/2", G5, Full Thd

8шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC, (16 foot)

8шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, (16 foot) 5/16"

8шт.

2

819060C2

PANEL, SIDE

PANEL - hopper end, (2 used on 12 foot)

4шт.

470-1258

SCREW,Slotted Pan Hd, 1/4"-20 x 1/2"

- machine, pan head slotted, 1/4 NC x 1/2 inch (4 used on 12 foot)

8шт.

434-58

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1/2", Gr 5

BOLT CARRIAGE, (6 used on 12 foot) Short NK, 5/16"-18 x 1/2", G5, Full Thd

20шт.

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

BOLT - round head square neck, 5/16 NC x 3/4 inch

8шт.

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC, (4 used on 12 foot)

8шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC, (6 used on 12 foot)

20шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, (4 used on 12 foot) 1/4"

8шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, (6 used on 12 foot) 5/16"

20шт.

3

815597C1

PLATE

BAFFLE - Avadex, (7 used on 12 foot)

8шт.

5

815634C2

BRACE

- hopper end support, left hand, (1 used on 12 foot)

2шт.

6

815635C2

BRACE

- hopper end support, right hand, (1 used on 12 foot)

2шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 x 1 inch NC, (4 used on 12 foot)

8шт.

425-106

NUT,3/8"-16, Cl 5

(4 used on 12 foot) 3/8"-16, G5

8шт.

492-11038

LOCK WASHER,3/8"

(4 used on 12 foot) 3/8"

8шт.

7

815636C1

BRACKET

BRACE - hopper support, intermediate

4шт.

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

8шт.

425-106

NUT,3/8"-16, Cl 5

8шт.

492-11038

LOCK WASHER,3/8"

8шт.

8

816861C1

COVER

ASSEMBLY - hopper, (12 foot)

1шт.

8

815601C1

COVER

ASSEMBLY - hopper, (16 foot)

2шт.

9

815615C1

SUPPORT

BRACKET - cover spring, (1 used on 12 foot)

2шт.

470-1258

SCREW,Slotted Pan Hd, 1/4"-20 x 1/2"

- machine, pan head slotted, 1/4 NC x 1/2 inch (2 used on 12 foot)

4шт.

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC, (2 used on 12 foot)

4шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, (2 used on 12 foot) 1/4"

4шт.

10

N32052

BAR

BRACKET - cover spring, (1 used on 12 foot)

2шт.

104066

RIVET,But Hd, 3/16" x 9/32"

- button head, 3/16 x 3/8 inch

1шт.

23039R1

WASHER

- 0.203 x 0.875 x 0.042 inch, flat

1шт.

11

6628

SPRING

- cover, (1 used on 12 foot)

2шт.

12

N32114

LINCH PIN

LOCK - spring, (1 used on 12 foot)

2шт.

13

815616C1

BRACKET

- cover, (1 used on 12 foot)

2шт.

113-101

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

(1 used on 12 foot) Hex, 5/16"-18 x 1/2", G5, Full Thd

2шт.

413-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

(1 used on 12 foot) Hex, 5/16"-18 x 5/8", G5, Full Thd

2шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC, (1 used on 12 foot)

2шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, (1 used on 12 foot) 5/16"

2шт.

104066

RIVET,But Hd, 3/16" x 9/32"

- button head, 3/16 x 3/8 inch, (1 used on 12 foot)

2шт.

23039R1

WASHER

- flat, 0.203 x 0.875 x 0.042 inch, (1 used on 12 foot)

2шт.

14

815618C1

CLAMP

- cover hinge, (7 used on 12 foot)

10шт.

113-101

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

(2 used on 12 foot) Hex, 5/16"-18 x 1/2", G5, Full Thd

4шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC, (2 used on 12 foot)

4шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, (2 used on 12 foot) 5/16"

4шт.

15

815599C1

BRACKET

BRACE - hopper

4шт.

413-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

4шт.

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

4шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

8шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

Выбрано товаров: 50
