Запчасти Case IH 310 (9-100) - AVADEX FEED SHAFT (09) - CHASSIS/ATTACHMENTS

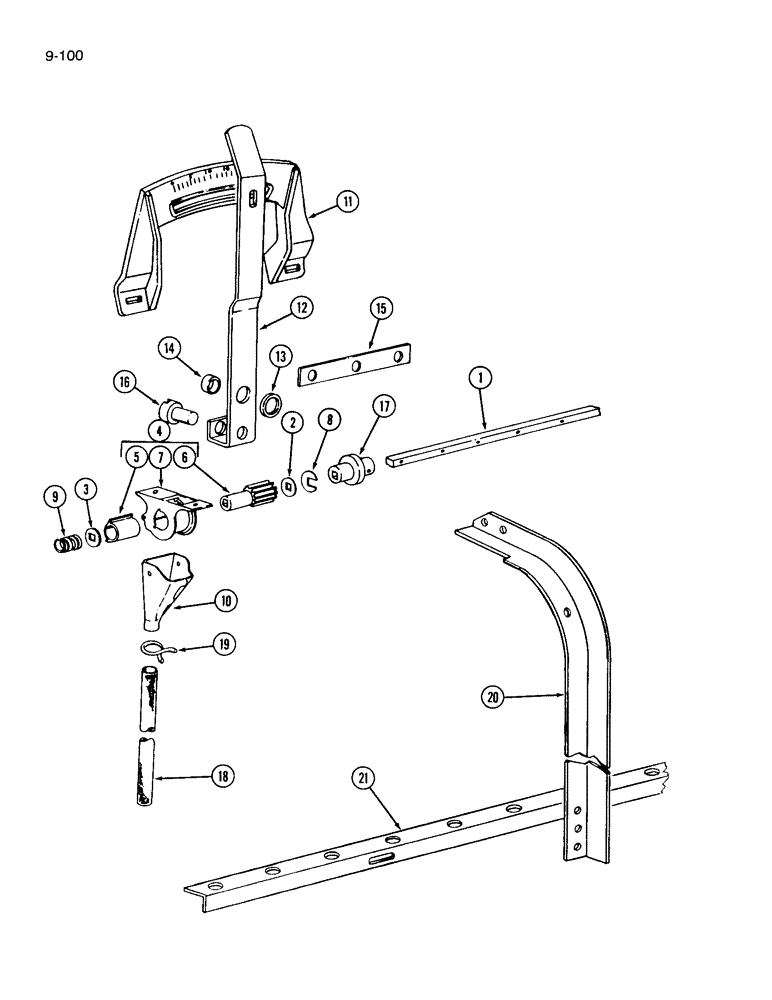

Схема запчастей Case IH 310 - (9-100) - AVADEX FEED SHAFT (09) - CHASSIS/ATTACHMENTS
18
20
16
7
2
6
3
5
1
9
4
8
12
10
11
21
14
17
13
19
15

Артикул

Название

Примечание

Количество

1

816335C2

BAR

- feed shaft, (12 foot)

2шт.

1

815620C1

DRIVE SHAFT

BAR - feed shaft, (16 foot)

2шт.

432-812

COTTER PIN,3/4" OAL x 1/8" W

PIN, SPLIT (COTTER), (48 used on 12 foot) 1/8" x 3/4"

64шт.

2

23051R1

SQ HOLE WASHER,.344" x 3/4" x .018", Sq. Hole

- square hole, 11/32 x 3/4 x 1/64 inch

1шт.

3

23050R1

SQ HOLE WASHER,.344" x 3/4" x .060", Sq. Hole

- square hole, 11/32 x 3/4 x 3/64 inch (24 used on 12 foot)

32шт.

4

600924R92

CUP ASSY.

CUP ASSEMBLY - Avadex feed, (24 used on 12 foot)

32шт.

470-1258

SCREW,Slotted Pan Hd, 1/4"-20 x 1/2"

- machine, pan head slotted, 1/4 NC x 1/2 inch (48 used on 12 foot)

64шт.

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC, (48 used on 12 foot)

64шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, (48 used on 12 foot) 1/4"

64шт.

5

600923R2

BLOCK

THIMBLE - feed cup cutoff, (24 used on 12 foot)

32шт.

6

601463R1

FINGER ASSY.

ROLL - feed, (24 used on 12 foot)

32шт.

7

615750R92

SUPPORT ASSY.

CUP - feed, (24 used on 12 foot)

32шт.

8

N32109

WASHER

- slotted, 11/32 x 3/4 x 1/64 inch

1шт.

9

N32176

SPRING

- feed, (24 used on 12 foot)

32шт.

10

603817R1

TUBE

TOP - grass seed tube, (24 used on 12 foot)

32шт.

11

815627C1

INDICATOR

- Avadex feed

2шт.

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

4шт.

425-106

NUT,3/8"-16, Cl 5

4шт.

492-11038

LOCK WASHER,3/8"

4шт.

12

815628C1

LEVER

- shifter

2шт.

434-516

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1", Gr 5

BOLT, Short NK, 5/16"-18 x 1", G5, Full Thd

1шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

2шт.

7500032

BUSHING

NUT - wing, 5/16 inch NC

2шт.

425-106

NUT,3/8"-16, Cl 5

2шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

492-11038

LOCK WASHER,3/8"

2шт.

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

4шт.

13

151401C1

BELLEVILLE WASHER

WASHER - Belleville

2шт.

14

2551F

WASHER

- lever pivot

2шт.

15

815629C1

BAR

BRACE - reinforcing

2шт.

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

4шт.

425-106

NUT,3/8"-16, Cl 5

4шт.

492-11038

LOCK WASHER,3/8"

4шт.

16

815630C1

PIN,25.4mm OD x 42.16mm L

- feed shifter

2шт.

17

819227C1

SLEEVE

BUSHING - feed shifter

2шт.

104056

RIVET

- round head, 1/8 x 7/8 inch

2шт.

18

609398R2

TUBE,12.95 mm ID, 1397 mm Length

- Avadex, (Cut to 44 inch recommended length) (24 used on 12 foot)

32шт.

19

603699R2

CLAMP

- seed tube top, (24 used on 12 foot)

32шт.

20

813734C2

SUPPORT

- tube, angle

4шт.

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

BOLT - round head square neck, 5/16 NC x 3/4 inch

8шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

8шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

21

813733C1

ANGLE,1.5" Diameter, 79" Length

- tube support, (12 foot)

2шт.

21

813732C1

ANGLE,1.5 mm Diameter, 107" Length

- tube support, (16 foot)

2шт.

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

4шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

4шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

20893R1

WASHER

- flat, 11/32 x 1 x 7/64 inch

4шт.

132-54

COTTER PIN,1/8" x 1 3/4"

Pin, Split (Cotter), , (24 used on 12 foot) 1/8" x 1 3/4"

32шт.

Выбрано товаров: 49
