Запчасти Case IH 310 (9-098) - TWO SPEED SEEDING DRIVE (09) - CHASSIS/ATTACHMENTS

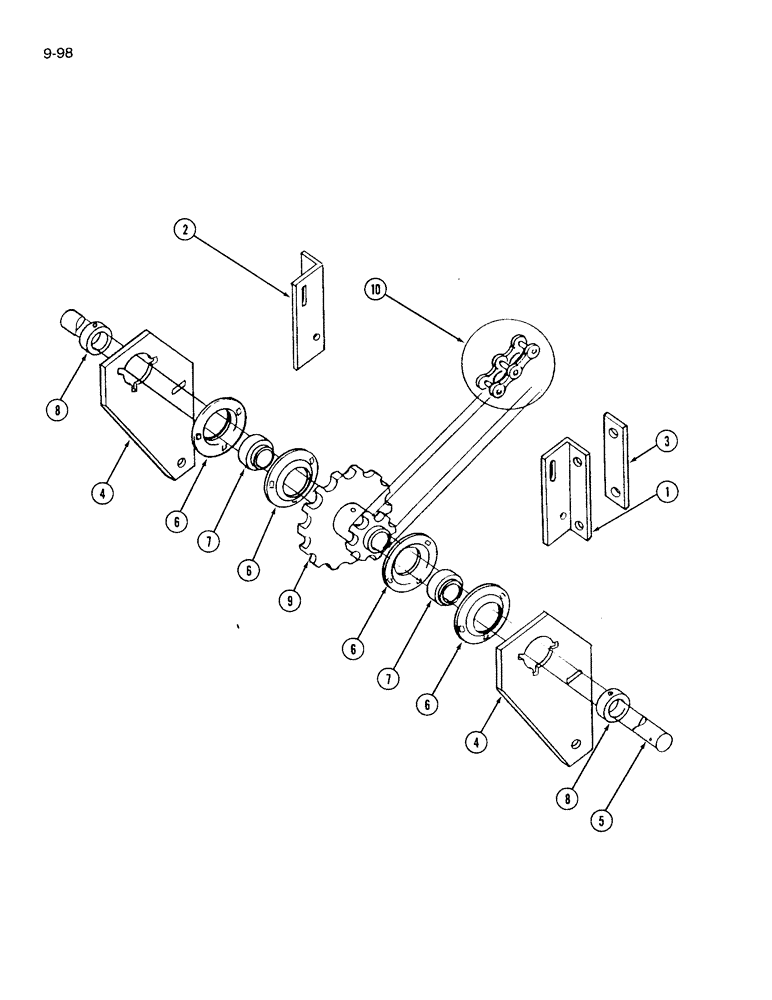

Схема запчастей Case IH 310 - (9-098) - TWO SPEED SEEDING DRIVE (09) - CHASSIS/ATTACHMENTS
6
7
6
4
4
5
6
8
7
9
3
2
10
1
6
8

Артикул

Название

Примечание

Количество

1

811447C1

ANGLE

- drive support, left

1шт.

2

811448C1

ANGLE

- drive support, right

1шт.

18503R1

BOLT,Hex, 1/2" - 13 x 7 1/2", Gr 5

- hex, 1/2 NC x 7-1/2 inch

3шт.

413-8128

BOLT,Hex, 1/2" - 13 x 8", Gr 5

- hex, 1/2 NC x 8 inch

1шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

3

811451C1

BAR

- support, clamping

2шт.

4

811521C1

SUPPORT

- two speed drive shaft

2шт.

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/2 inch

4шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

20601R1

WASHER

- flat, 17/32 x 1-1/4 x 7/64 inch

2шт.

5

813133C1

SHAFT

- two speed drive

1шт.

6

462360R1

FLANGED BEARING

RETAINER - bearing flangette

4шт.

434-516

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1", Gr 5

BOLT - round head square neck, 5/16 NC x 1 inch

6шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

6шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

495-81114

WASHER,8.74mm ID x 19.05mm OD x 1.7mm Thk

- flat, 11/32 x 3/4 x 3/64 inch

6шт.

7

204807C91

BEARING ASSY,25.4mm ID x 52mm OD x 15mm W

BEARING - drive shaft

2шт.

8

455102R21

COLLAR

- locking, bearing, (with set screw)

2шт.

9

811459C1

SPROCKET ASSY.

SPROCKET ASSEMBLY - two speed drive

1шт.

379990R1

HEADED PIN

PIN - 3/8 x 2 inch, headed

1шт.

432-812

COTTER PIN,3/4" OAL x 1/8" W

PIN, SPLIT (COTTER), 1/8" x 3/4"

1шт.

10

NSS

NOT SOLD SEPARAT

CHAIN ASSEMBLY - slow speed clutch drive (Use 25 links of 1-1/4 inch roller chain from a 10 foot roll 569089R91 and one connecting link 456980R91)

1шт.

10

NSS

NOT SOLD SEPARAT

CHAIN ASSEMBLY - fast speed clutch drive (Use 25 links of 1-1/4 inch roller chain from a 10 foot roll 569089R91 and one offset link 456929R91) and three connecting links 456980R91

1шт.

Выбрано товаров: 25
