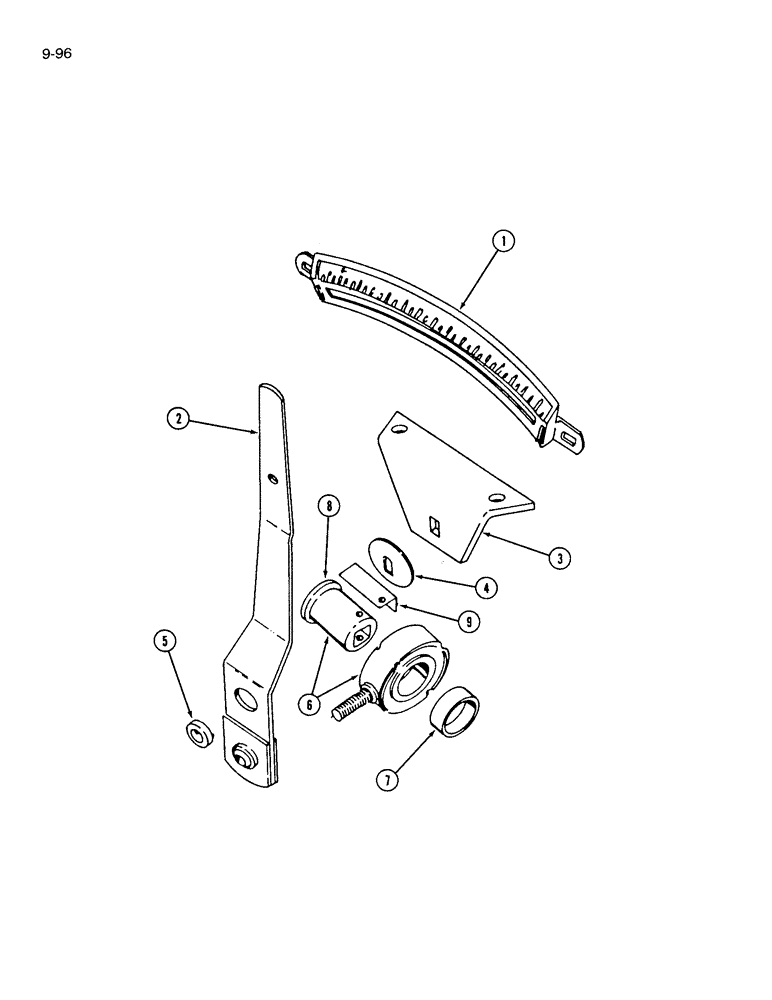

Запчасти Case IH 310 (9-096) - GRAIN FEED INDICATOR AND SHIFTER (09) - CHASSIS/ATTACHMENTS

1

603127R1

INDICATOR

- grain feed

2шт.

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

4шт.

495-81114

WASHER,8.74mm ID x 19.05mm OD x 1.7mm Thk

- flat, 11/32 x 3/4 x 3/64 inch

4шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

4шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

2

815179C1

LEVER

- grain feed shifter

2шт.

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

BOLT - round head square neck, 5/16 NC x 3/4 inch

2шт.

7500032

BUSHING

NUT - wing, 5/16 inch NC

2шт.

3

819361C1

BRACKET

SUPPORT - shifter lever

2шт.

434-516

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1", Gr 5

BOLT - round head square neck, 5/16 NC x 1 inch

2шт.

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

BOLT - round head square neck, 3/8 NC x 1 inch

4шт.

425-145

JAM NUT,Jam, 5/16"-18, G5

- hex lock, 5/16 inch NC

4шт.

425-106

NUT,3/8"-16, Cl 5

4шт.

495-81114

WASHER,8.74mm ID x 19.05mm OD x 1.7mm Thk

- flat, 11/32 x 3/4 x 3/64 inch

1шт.

492-11038

LOCK WASHER,3/8"

4шт.

4

819263C1

WASHER

- shifter stop

2шт.

5

819264C1

BUSHING

- shifter stop

2шт.

6

609384R91

THRUST BEARING

ASSEMBLY - feed shifter (Prior to 1984 season)

2шт.

6

1279109C91

BEARING ASSY

ASSEMBLY - feed shifter (1984 season and after)

2шт.

9413979

LOCK NUT,3/8"-16, GC

NUT - hex lock, 3/8 inch NC, Grade 8

2шт.

7

609389R1

SPACER

- nylon, shifter

2шт.

8

609388R1

SPACER

- shifter bearing (Used with bearing 609384R91)

2шт.

8

1279145C1

SPACER

- shifter bearing (Used with bearing 1279109C91)

2шт.

19442R1

PIN,3/16" x 1 1/2", Coiled

2шт.

9

816573C1

SHIM

- lever, 0.005 inch (Used with bearing 609384R91)

1шт.
