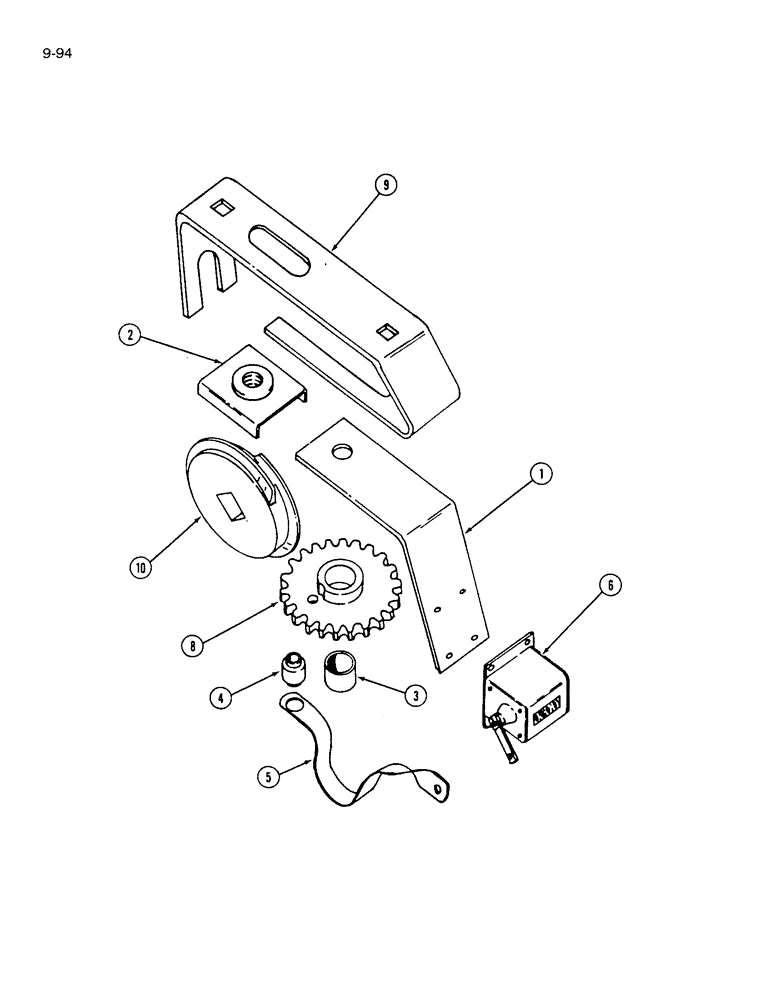

Запчасти Case IH 310 (9-094) - DIGITAL LAND MEASURE (09) - CHASSIS/ATTACHMENTS

1

599560R1

BRACKET

SUPPORT - counter

1шт.

2

596936R1

SUPPORT

ASSEMBLY - gear

1шт.

3

599705R1

SPACER

- gear

1шт.

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

1шт.

492-11038

LOCK WASHER,3/8"

1шт.

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

1шт.

4

609534R2

SPACER

- counter spring

1шт.

132852

SCREW,Sl Rnd Hd, #10 - 24 x 1 1/4"

- machine, No. 10 x 1-1/4 inch

1шт.

225-14110

NUT,#10-24

Machine #10-24

1шт.

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

607893R1

WASHER

- flat, 13/64 x 1/2 x 3/64 inch

1шт.

5

598970R2

SPRING

- counter

1шт.

432-68

COTTER PIN,3/32" x 1/2"

PIN, SPLIT (COTTER), 3/32" x 1/2"

1шт.

6

609535R91

COUNTER

ASSEMBLY - acreage

1шт.

145-351

RIVET,But Hd, 1/8" x 7/16"

- brass, 1/8 x 7/16 inch

4шт.

7

816878C1

ARM

- acreage counter

1шт.

8

816099C1

GEAR

- land measure, 12 tooth (12 foot)

1шт.

8

815185C1

GEAR

- land measure, 34 tooth (16 foot)

1шт.

9

596933R1

BRACKET

- land measure

1шт.

434-516

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1", Gr 5

BOLT - round head square neck, 5/16 NC x 1 inch

2шт.

9413952

LOCK NUT,5/16"-18, GB

NUT - hex lock, 5/16 inch NC

2шт.

10

604420R1

GEAR

- acreage counter worm, (12 foot)

1шт.

10

596914R1

GEAR

- acreage counter worm, (16 foot)

1шт.
