Запчасти Case IH 310 (9-090) - MAIN DRIVE (09) - CHASSIS/ATTACHMENTS

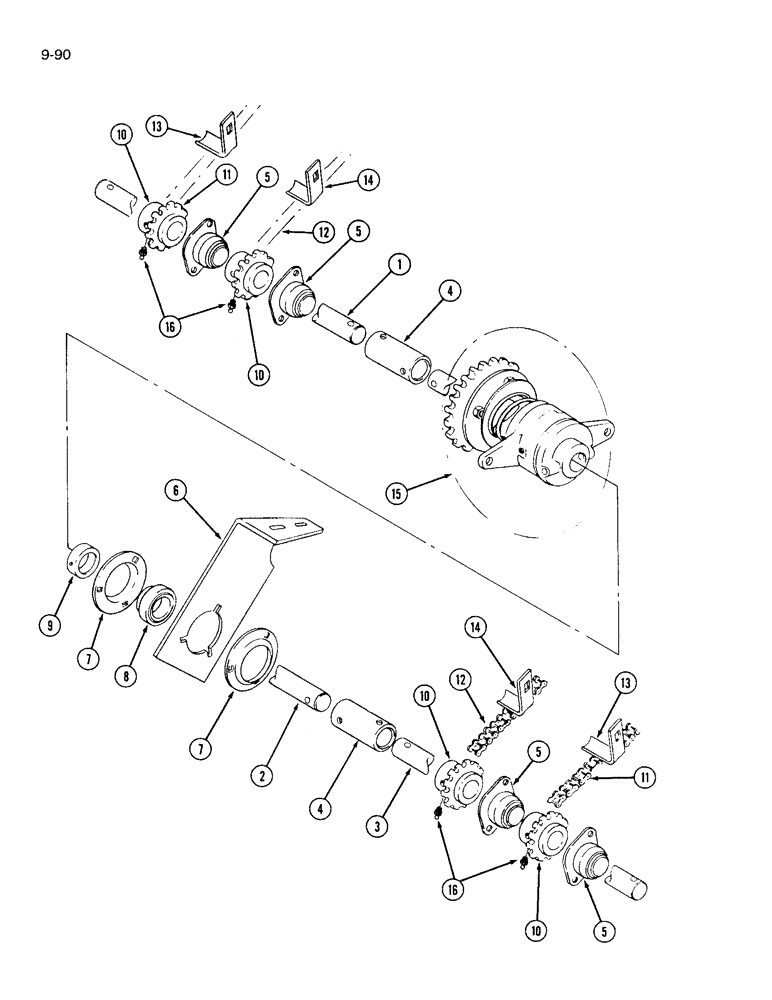

Схема запчастей Case IH 310 - (9-090) - MAIN DRIVE (09) - CHASSIS/ATTACHMENTS
4
5
5
12
14
1
10
11
13
7
8
16
7
5
9
5
10
11
16
6
3
15
12
10
13
10
4
2
14

Артикул

Название

Примечание

Количество

1

811438C1

ROD

- main drive shaft, front, (12 foot)

1шт.

1

811495C2

ROD

- main drive shaft, front, (16 foot)

1шт.

2

811497C1

ROD

- main drive shaft, intermediate

1шт.

3

811471C2

ROD

- main drive shaft, rear, (12 foot)

1шт.

3

811496C1

ROD

- main drive shaft, rear, (16 foot)

1шт.

4

596951R1

COUPLING

- drive shaft rod

2шт.

24709R1

HEADED PIN,3/8" x 1 3/4"

PIN, HEADED, 3/8" x 1 3/4"

4шт.

432-812

COTTER PIN,3/4" OAL x 1/8" W

PIN, SPLIT (COTTER), 1/8" x 3/4"

4шт.

5

596943R92

BEARING ASSY,25.45mm ID

BEARING - drive shaft rod, (4 used on 12 foot)

5шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex, 1/4 NC x 3/4 inch, (8 used on 12 foot)

10шт.

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC, (8 used on 12 foot)

10шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, (8 used on 12 foot) 1/4"

10шт.

6

811532C1

SUPPORT

- drive shaft rod

1шт.

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

2шт.

425-106

NUT,3/8"-16, Cl 5

2шт.

492-11038

LOCK WASHER,3/8"

2шт.

21403R1

WASHER

- flat, 13/32 x 1 x 7/64 inch

4шт.

7

462360R1

FLANGED BEARING

RETAINER - bearing flangette

2шт.

434-516

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1", Gr 5

BOLT - round head square neck, 5/16 NC x 1 inch

3шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 NC inch

3шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

495-81114

WASHER,8.74mm ID x 19.05mm OD x 1.7mm Thk

- flat, 11/32 x 3/4 x 3/64 inch

3шт.

8

204807C91

BEARING ASSY,25.4mm ID x 52mm OD x 15mm W

BEARING - drive shaft rod

1шт.

9

455102R21

COLLAR

- locking, bearing, (with set screw)

1шт.

10

596952R1

SPROCKET ASSY.

SPROCKET - grain and fertilizer drive, 8 tooth

4шт.

379990R1

HEADED PIN

PIN - headed, 3/8 x 2 inch

4шт.

432-812

COTTER PIN,3/4" OAL x 1/8" W

PIN, SPLIT (COTTER), 1/8" x 3/4"

4шт.

11

NSS

NOT SOLD SEPARAT

CHAIN ASSEMBLY - grain drive (Use 21 links of 1 inch roller chain from a 10 foot roll 569088R91 and one connecting link 457113R91 and one offset link 457114R91)

2шт.

12

NSS

NOT SOLD SEPARAT

CHAIN ASSEMBLY - fertilizer drive (Use 25 links of 1 inch roller chain from a 10 foot roll 569088R91 and one connecting link 457113R91 and one offset link 457114R91)

2шт.

13

820599C1

ADJUSTER

- grain drive chain

2шт.

14

811519C1

BRACKET

- chain tightener

2шт.

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

BOLT - round hesd square neck 3/8 NC x 1 inch

2шт.

425-106

NUT,3/8"-16, Cl 5

2шт.

492-11038

LOCK WASHER,3/8"

2шт.

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

2шт.

15

REF

INSTRUCTION

CLUTCH ASSEMBLY - grain drive (For service parts, refer to grain drive, See Page 9-89)

1шт.

16

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight 1/4"-28 NPT x .54" lg

4шт.
