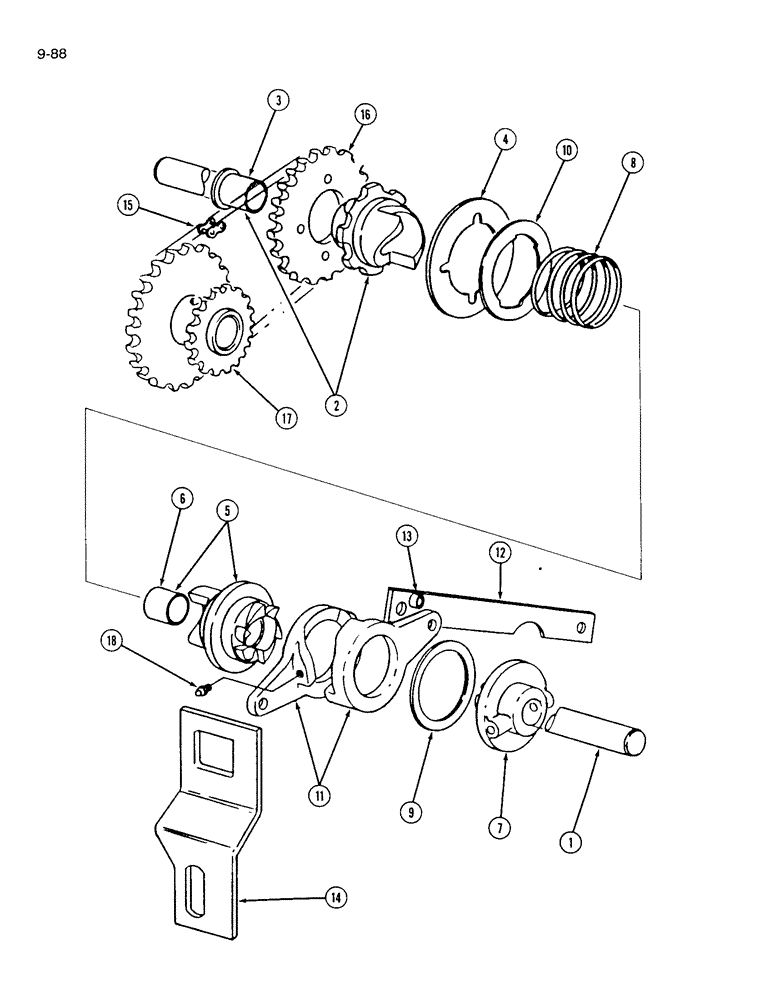

Запчасти Case IH 310 (9-088) - GRAIN DRIVE (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

SHAFT - main drive, refer to main drive, (See Page 9-91)

1шт.

2

816033C11

DRIVE SPROCKET

SPROCKET ASSEMBLY - grain drive clutch, 8 tooth

1шт.

609836R1

WASHER

- flat, 1-1/32 x 1-3/4 x 3/64 inch

1шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1-1/2"

1шт.

3

289587R1

BUSHING

- sprocket

1шт.

4

812616C1

WASHER

- sprocket clamping

1шт.

5

816027C11

CLUTCH

ASSEMBLY - driver

1шт.

6

298401R1

BUSHING

- driver clutch

1шт.

7

816028C1

CLUTCH

- driver

1шт.

N32207

HEADED PIN,3/8" x 3 3/4"

PIN - headed, 3/8 x 3-3/4 inch

1шт.

432-812

COTTER PIN,3/4" OAL x 1/8" W

PIN, SPLIT (COTTER), 1/8" x 3/4"

1шт.

8

816026C1

SPRING

- clutch

1шт.

9

816029C1

WASHER,60.45mm ID x 86.36mm OD x 1.9mm Thk

- main drive clutch

1шт.

10

816025C1

WASHER

- clutch

1шт.

11

811513C1

CAM

- clutch throwout

2шт.

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

1шт.

12

811568C1

BAR

- clutch cam control

1шт.

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

1шт.

413-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

- hex, 5/8 NC x 2-1/4 inch

1шт.

425-106

NUT,3/8"-16, Cl 5

1шт.

425-1010

NUT,5/8"-11, G5

1шт.

492-11038

LOCK WASHER,3/8"

1шт.

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

1шт.

464623R1

WASHER

- flat 0.656 x 1.500 x 0.105 inch

1шт.

13

660200R1

SPACER,10.7mm ID x 17.14mm OD x 9.5mm L

- pipe, 3/8 x 1 inch

1шт.

14

811547C1

SUPPORT

- cam stop

1шт.

178374R1

WASHER

- 0.531 x 1.250 x 0.054 inch

1шт.

15

NSS

NOT SOLD SEPARAT

CHAIN ASSEMBLY - clutch drive (Use 25 links of 1-1/4 inch roller chain from a 10 foot roll 569089R91 and add one connecting link 456929R91 and three connecting links 456980R91)

1шт.

16

811466C1

SPROCKET ASSY.

SPROCKET - driven, 24 tooth

1шт.

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

4шт.

425-106

NUT,3/8"-16, Cl 5

4шт.

425-1010

NUT,5/8"-11, G5

4шт.

17

811459C1

SPROCKET ASSY.

SPROCKET ASSEMBLY - two speed drive, (For service refer to two two speed seeding drive, (See page 9-97)

1шт.

18

80717

LUBE NIPPLE,45 Degree, 1/8" NPT x 7/8" lg

NIPPLE, LUBE, 45º, 1/8" NPT x 7/8" lg

2шт.
