Запчасти Case IH 310 (9-086) - DISK DEPTH GAUGE (09) - CHASSIS/ATTACHMENTS

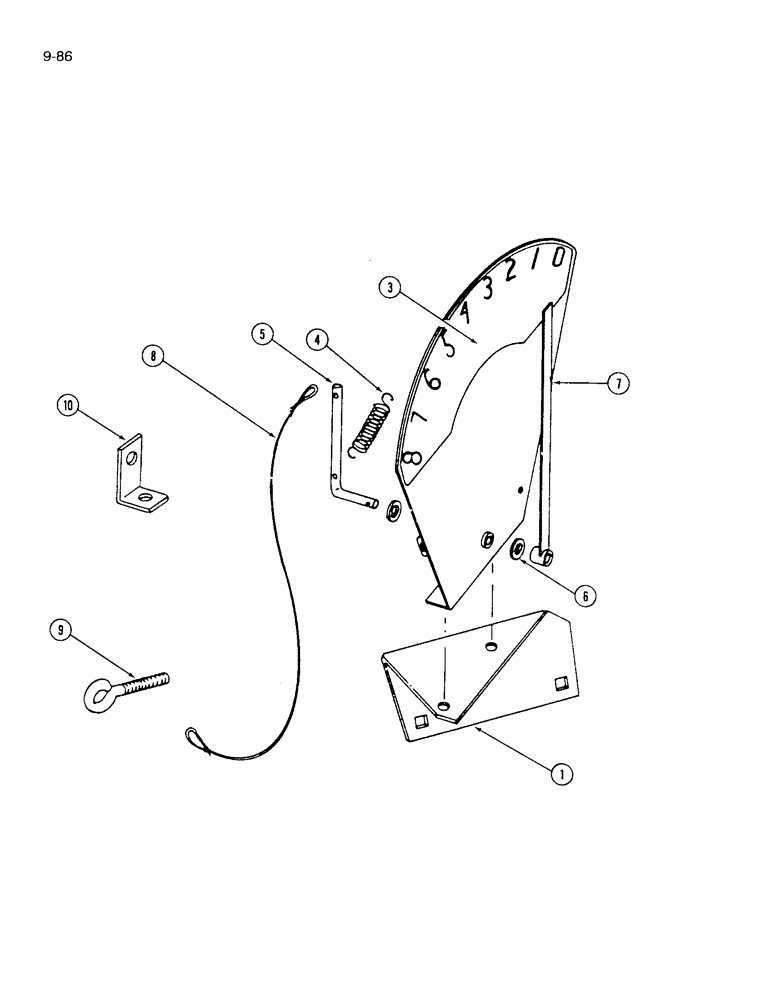

Схема запчастей Case IH 310 - (9-086) - DISK DEPTH GAUGE (09) - CHASSIS/ATTACHMENTS
7
4
5
6
8
1
10
3
9

Артикул

Название

Примечание

Количество

1

598978R2

BRACKET

- depth gauge mounting

1шт.

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - round head square neck, 3/8 NC x 3/4 inch

2шт.

425-106

NUT,3/8"-16, Cl 5

2шт.

492-11038

LOCK WASHER,3/8"

2шт.

2

598979R91

PLATE

- depth gauge, (with decal)

1шт.

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

- hex, 1/4 NC x 1/2 inch

2шт.

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

3

598980R1

PRODUCT GRAPHIC

DECAL - indicator

1шт.

4

NSS

NOT SOLD SEPARAT

SPRING - gauge rod, (Purchase Local)

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

5

598984R1

ROD

- gauge spring

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

6

21801R1

WASHER

- flat, 9/32 x 3/4 x 3/64 inch

2шт.

7

598985R1

STRAP

ASSEMBLY - dial indicator

1шт.

454521

SCREW - headless, slotted, set, 10 NC x 3/16 inch

1шт.

8

812153C1

ROPE

- depth gauge

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

9

598991R1

BOLT

- rope, eye

1шт.

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

10

598489R1

ANGLE

- eye bolt mounting

1шт.

21801R1

WASHER

- flat, 9/32 x 3/4 x 3/64 inch

2шт.

Выбрано товаров: 23
