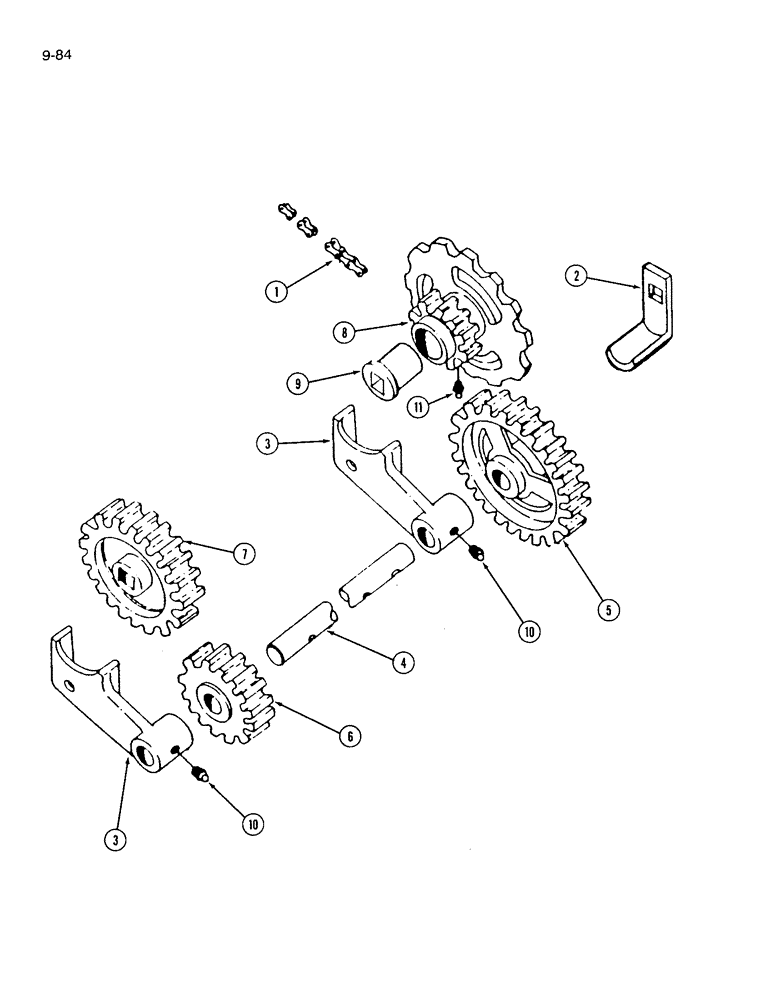

Запчасти Case IH 310 (9-084) - FERTILIZER DRIVE (09) - CHASSIS/ATTACHMENTS

1

NSS

NOT SOLD SEPARAT

CHAIN ASSEMBLY - fertilizer drive (Use 25 links of 1 inch roller chain from a 10 foot roll 569088R91 and add one connecting link 457113R91 and one offset link 457114R91)

2шт.

2

811519C1

BRACKET

- chain tightener

2шт.

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

BOLT - round head square neck, 3/8 NC x 1 inch

2шт.

425-106

NUT,3/8"-16, Cl 5

2шт.

492-11038

LOCK WASHER,3/8"

2шт.

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

2шт.

3

811503C2

PIVOTING ARM

BEARING - countershaft support

4шт.

19021R1

CARRIAGE BOLT,#3, 3/8" - 16 x 1 1/2", Gr 2

BOLT - plow type 1, 3/8 x 1-1/2 inch

4шт.

22210R1

SET SCREW,Hex Soc, 5/16"-18 x 1/2"

SCREW - set, headless slotted, 5/16 NC x 1/2 inch

8шт.

425-106

NUT,3/8"-16, Cl 5

4шт.

492-11038

LOCK WASHER,3/8"

4шт.

4

597004R1

SHAFT

- fertilizer drive, counter

2шт.

21753R1

WASHER

- flat, 25/32 x 1-1/2 x 1/16 inch

3шт.

432-1220

COTTER PIN,3/16" x 1 1/4"

3/16" x 1 1/4"

2шт.

5

603460R1

GEAR

- drive spur, 24 tooth

2шт.

U5348

PIN

- clevis, 1/4 x 1-1/2 inch

2шт.

432-812

COTTER PIN,3/4" OAL x 1/8" W

PIN, SPLIT (COTTER), 1/8" x 3/4"

2шт.

21753R1

WASHER

- flat, 25/32 x 1-1/2 x 1/16 inch

1шт.

6

598997R1

GEAR

- drive pinion, 18 tooth

2шт.

U5348

PIN

- clevis, 1/4 x 1-1/2 inch

2шт.

432-812

COTTER PIN,3/4" OAL x 1/8" W

PIN, SPLIT (COTTER), 1/8" x 3/4"

2шт.

7

598996R1

GEAR

- feed shaft, 16 tooth

2шт.

83-1316

SET SCREW,Hex Soc, 5/16"-18 x 3/8"

SCREW - hex socket set, 5/16 inch NC, headless cup point

2шт.

8

596999R1

GEAR

- feed shaft, spur, 10 tooth and 15 tooth

2шт.

22810R1

SQ HOLE WASHER,41/64" x 1 1/4" x .060", Sq Hole

- flat, 21/32 square x 1-1/4 x 3/64 inch

2шт.

9

603461R1

TRUNNION

- spur gear

4шт.

10

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg

4шт.

11

219-28

LUBE NIPPLE,5/16" - 32

FITTING - grease, straight, 5/16 inch

2шт.
