Запчасти Case IH 310 (9-082) - GRAIN SEEDING TUBE HOLDER, PRIOR TO 1980 SEASON (09) - CHASSIS/ATTACHMENTS

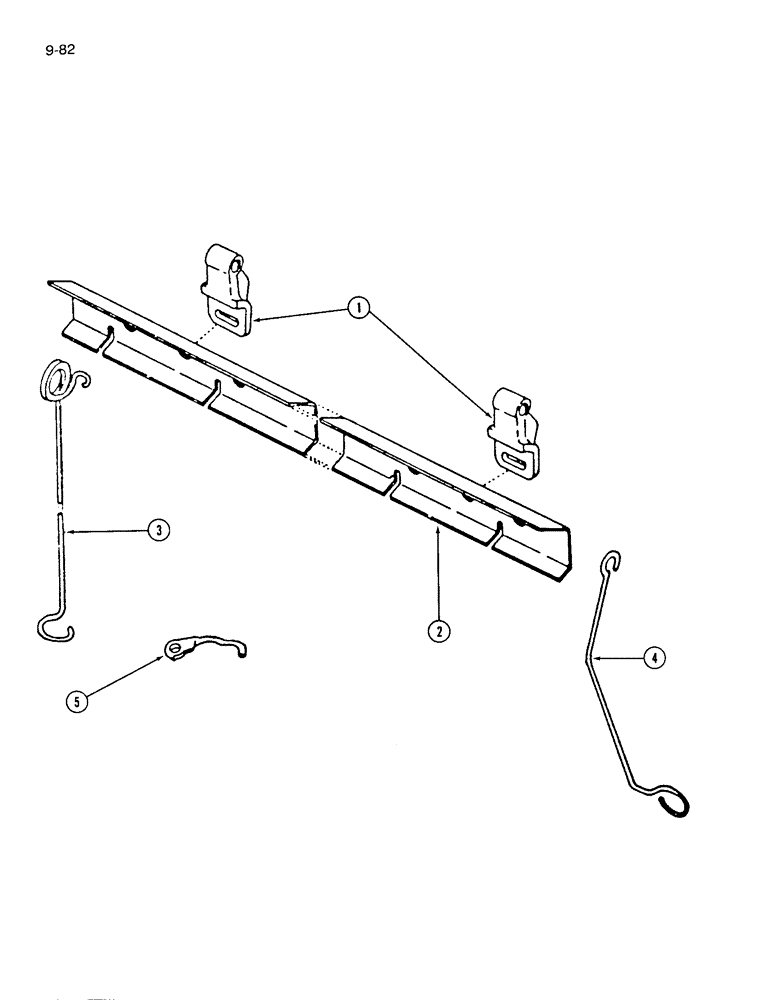

Схема запчастей Case IH 310 - (9-082) - GRAIN SEEDING TUBE HOLDER, PRIOR TO 1980 SEASON (09) - CHASSIS/ATTACHMENTS
2
1
3
4
5

Артикул

Название

Примечание

Количество

1

596927R1

BRACKET

- tube holder channel, (6 used on 12 foot)

8шт.

22899R1

HEADED PIN,1/2" x 2 3/8"

PIN, HEADED, (6 used on 12 foot) 1/2" x 2 3/8"

8шт.

432-812

COTTER PIN,3/4" OAL x 1/8" W

PIN, SPLIT (COTTER), (6 used on 12 foot) 1/8" x 3/4"

8шт.

425-146

JAM NUT,3/8" - 16, Gr 5

- hex lock, 3/8 inch NC, (6 used on 12 foot)

8шт.

2

596928R1

CHANNEL

- tube holder, front

1шт.

2

596929R1

CHANNEL

- tube holder, center

1шт.

2

596930R1

CHANNEL - tube holder, rear, (1 used on 12 foot)

2шт.

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch, (6 used on 12 foot)

8шт.

425-106

NUT,3/8"-16, Cl 5

(6 used on 12 foot) 3/8"-16, G5

8шт.

492-11038

LOCK WASHER,3/8"

(6 used on 12 foot) 3/8"

8шт.

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch), (6 used on 12 foot) 3/8"

8шт.

3

596931B3

HOLDER - grain tub, (17 used on 12 foot)

23шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, (17 used on 12 foot) 5/16"

23шт.

425-106

NUT,3/8"-16, Cl 5

(17 used on 12 foot) 3/8"-16, G5

23шт.

492-11038

LOCK WASHER,3/8"

(17 used on 12 foot) 3/8"

23шт.

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch), (17 used on 12 foot) 3/8"

23шт.

4

604978R1

HOLDER

- grain tube, front

1шт.

413-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

Hex, 3/4"-10 x 2-1/2", G5

1шт.

425-1012

NUT,3/4"-10, G5

1шт.

467750R1

WASHER

- flat, 0.781 x 1.500 x 0.105 inch

1шт.

5

596932R2

GUIDE,0.375" Diameter, 2.6, 1.9" Length

- grain tube, (6 used on 12 foot)

8шт.

413-864

BOLT,Hex, 1/2" - 13 x 4", Gr 5

- hex, 1/2 NC x 4 inch, (12 used on 12 foot)

16шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex (12 used on 12 foot) 1/2"-13, G5

16шт.

Выбрано товаров: 23
